SEW SA47/T DT80K4/BMG/HR/MM05 Helical-Worm Gearmotor
Used
Available on request
SEW Helical-Worm Gearmotor SA47/T DT80K4/BMG/HR/MM05 “ Input: 280-1400 r/min, Output: 14-69 r/min, Torque: 62/67 Nm, Motor: 0.11/0.55 kW, IP54, Integrated SEW MOVIMOT Inverter.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

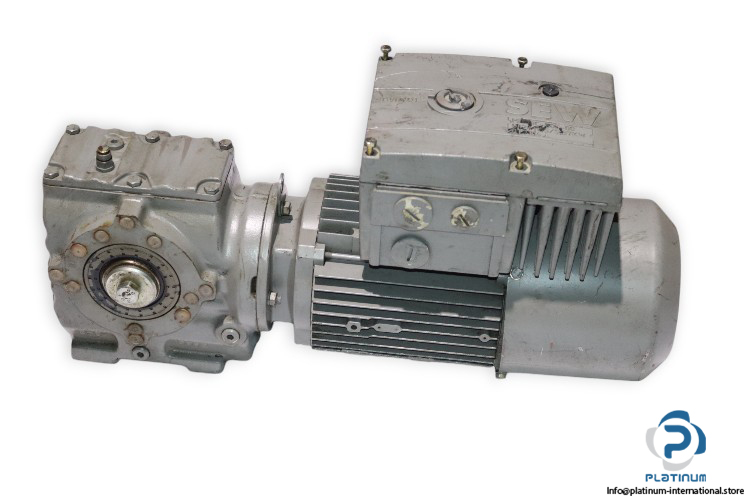

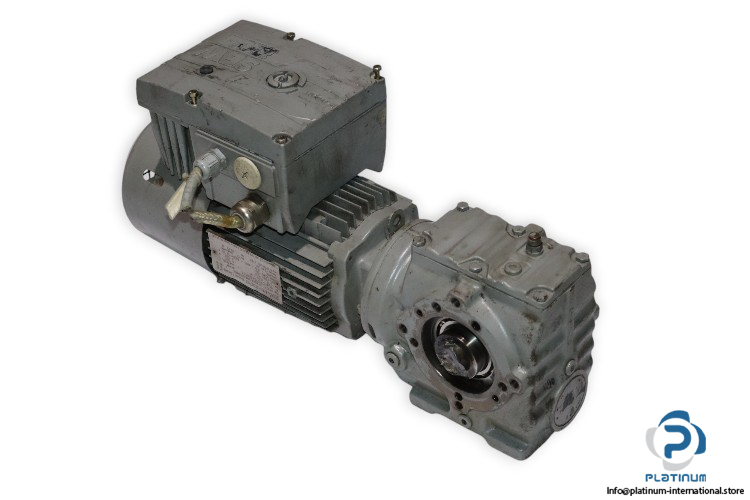

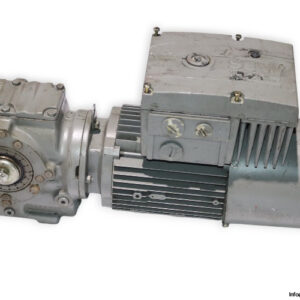

SEW Helical-Worm Gearmotor SA47/T DT80K4/BMG/HR/MM05 with MOVIMOT Inverter Drive
The SEW Helical-Worm Gearmotor SA47/T DT80K4/BMG/HR/MM05 is a highly efficient and compact gearmotor designed for industrial applications requiring precise speed control and high torque output. Featuring an integrated SEW MM03C-503-00 MOVIMOT Inverter Drive, this gearmotor provides seamless power regulation and operational efficiency.

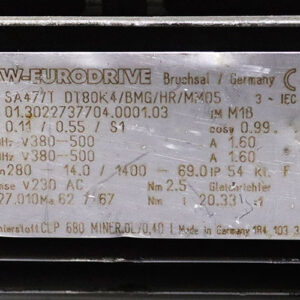

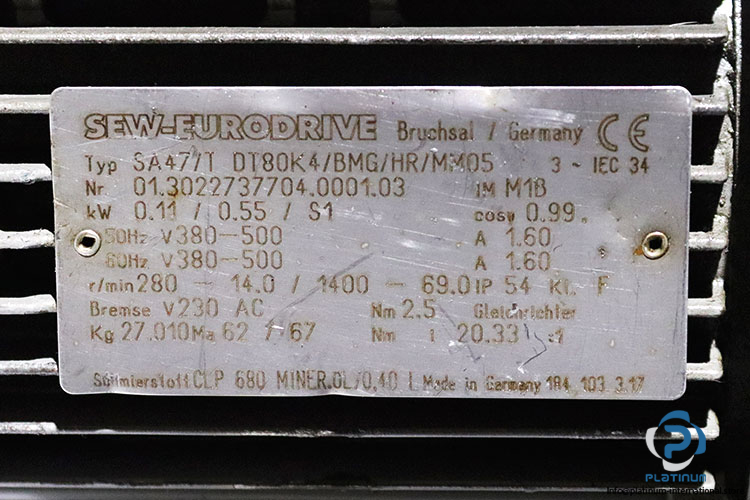

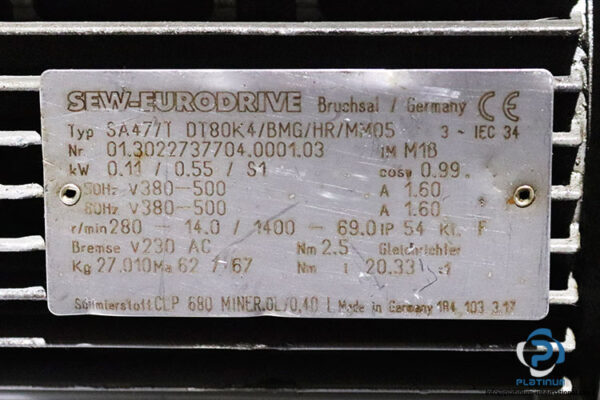

Gearmotor Specifications:
- Manufacturer: SEW
- Type: Helical-Worm Gearmotor
- Model: SA47/T DT80K4/BMG/HR/MM05
- Part No.: 01.3022737704.0001.03
- Gear Unit: SA47/T
- Input Speed: 280 – 1400 r/min
- Output Speed: 14.0 – 69.0 r/min
- Total Ratio: 20.33
- Output Torque: 62 / 67 Nm
- Service Factor SEW-FB: 2.50 / 1.65
- Mounting Position: M1B
- Lubricant & Volume: CLP 680, 0.40 L
- Hollow Shaft Diameter: 25 mm
- Motor Power: 0.11 / 0.55 kW
- Motor Frequency: 50 Hz
- Cyclic Duration Factor: S1
- Multi-Range Voltage (50Hz): 380-500 V
- Multi-Range Voltage (60Hz): 380-500 V
- MM Rated Main Current: 1.6 A
- MM Rated Output Current: 2 A
- Thermal Class / Enclosure: F / IP54
- Brake Voltage & Torque: 230V AC / 2.5 Nm
- Multi-Range Brake Voltage: 230V AC

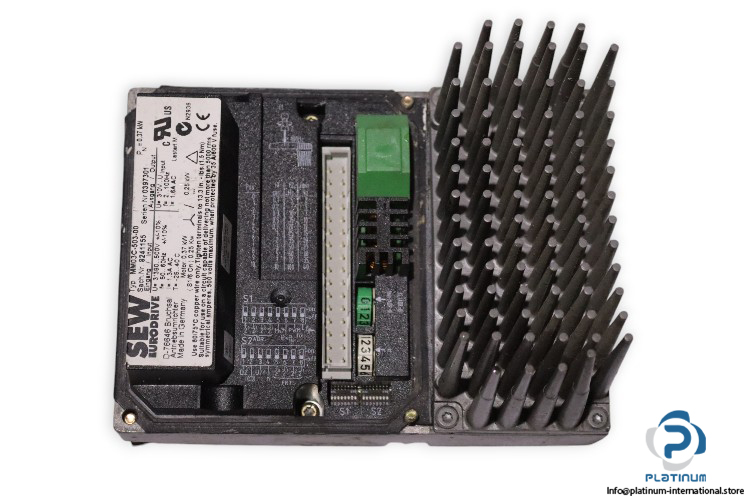

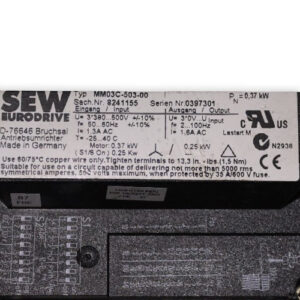

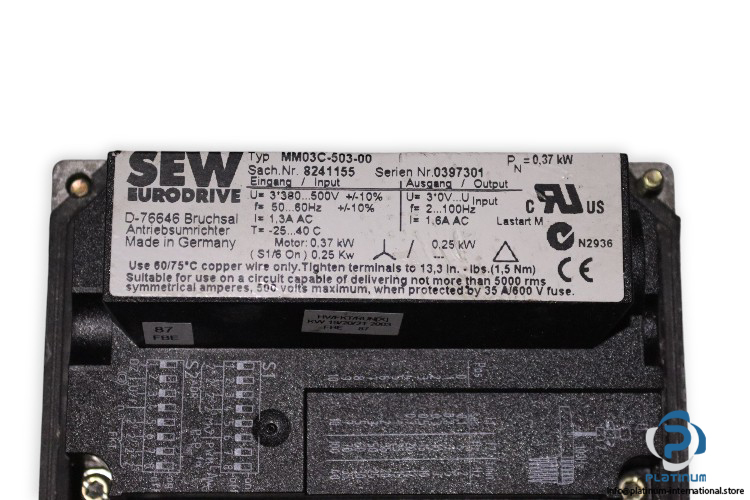

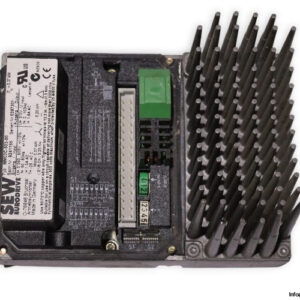

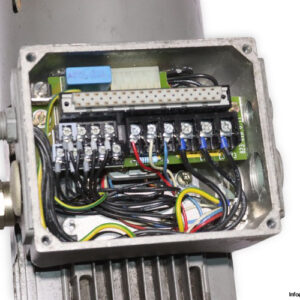

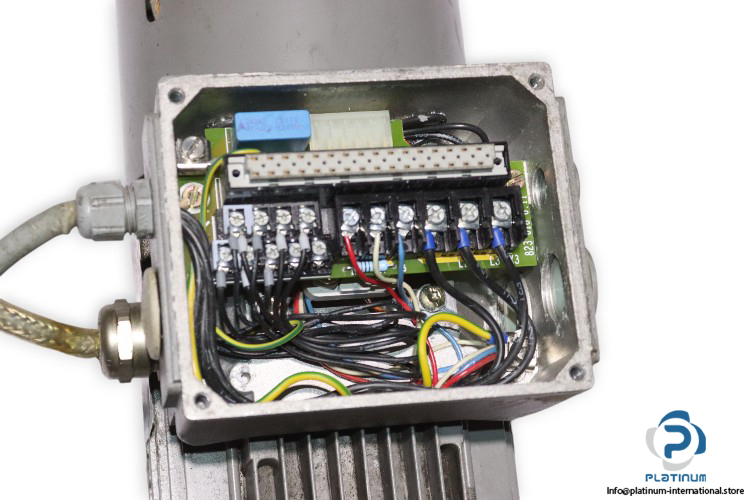

Integrated SEW MOVIMOT Inverter Drive MM03C-503-00 Specifications:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.3 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency Range: 2 to 100 Hz
The SEW SA47/T Helical-Worm Gearmotor with MOVIMOT Inverter Drive offers advanced speed control, efficient power output, and high durability, making it ideal for industrial automation and heavy-duty applications.
