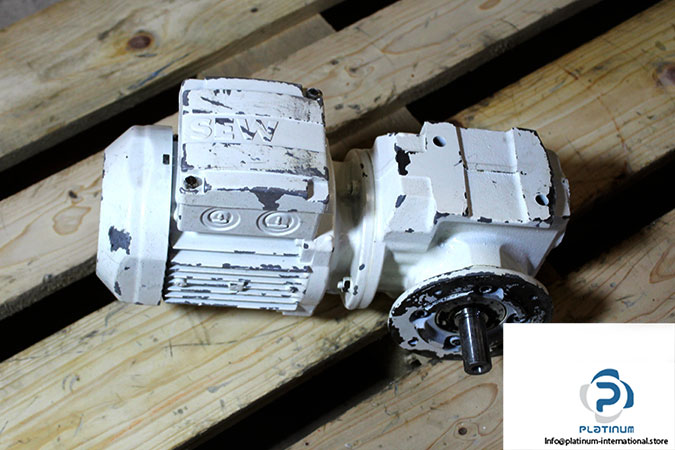

SEW SF37 DR63M4/TF Helical-Worm Gearmotor

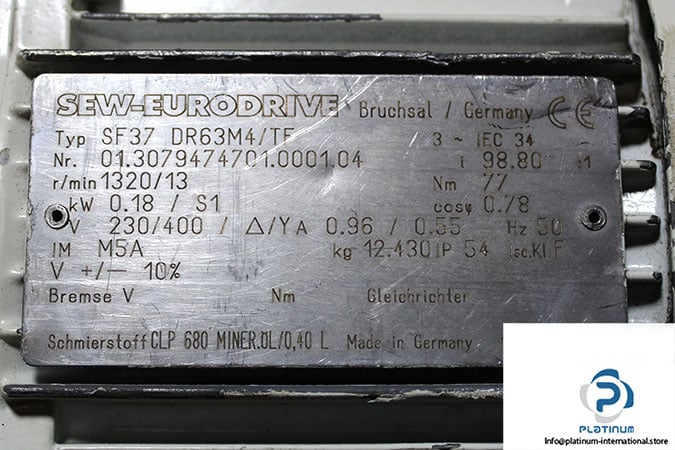

Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motors
Model: SF37DR63M4/TF
ID Number: 01.3079474701.0001.04

Speed [r/min]: 1320 / 13
Total Ratio [i]: 98,80
Output Torque [Nm]: 77
Service Factor SEW-FB: 1,15
Mounting Position: M5A
Lubricant / -Volume [l]: CLP 680 0,40
Output Shaft End [mm]: 20×40
Design: Flange-Mounted Version
Flange [mm]: 120
Motor Power [kW]: 0.18
Motor Frequency [Hz]: 50
Cyclic Duration Factor: S1
Motor Voltage [V]: 230/400 Delta/Star
Nominal Current [A]: 0,96 / 0,55
Cos Phi: 0,78
Thermal Class/Enclosure [IP]: F / 54
Ambient Temperature Motor [°C]: 40
Weight [kg]: 13,8
