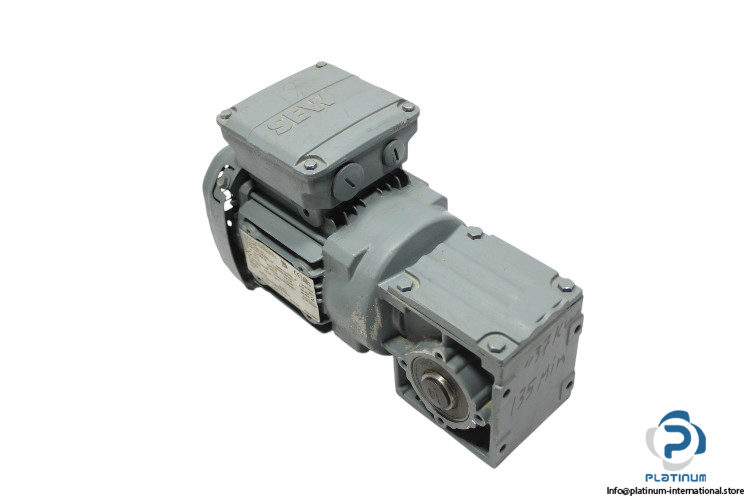

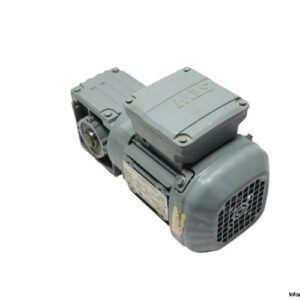

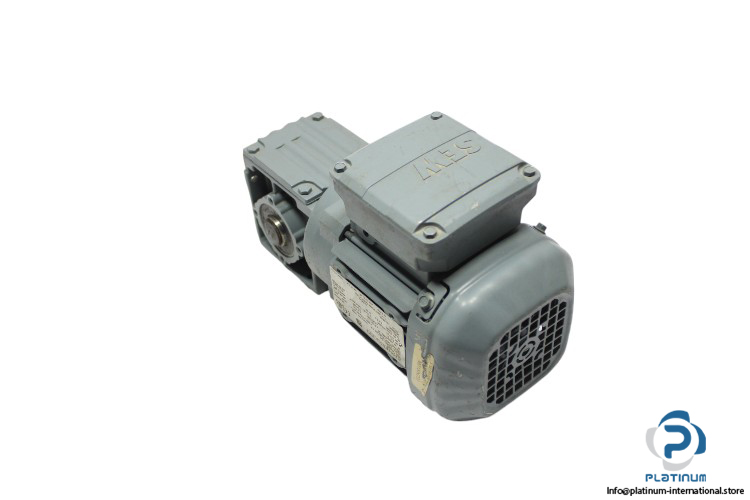

SEW WA20 DRS71S4 Gear Motor
Used
In stock1 unitReady to ship
Gear Motor
SEW WA20 DRS71S4 Gear Motor is a high-performance drive system with a 20 mm hollow shaft, 0.37 kW motor power, and multi-range voltage compatibility. Engineered for durability and precision, it ensures efficient operation in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

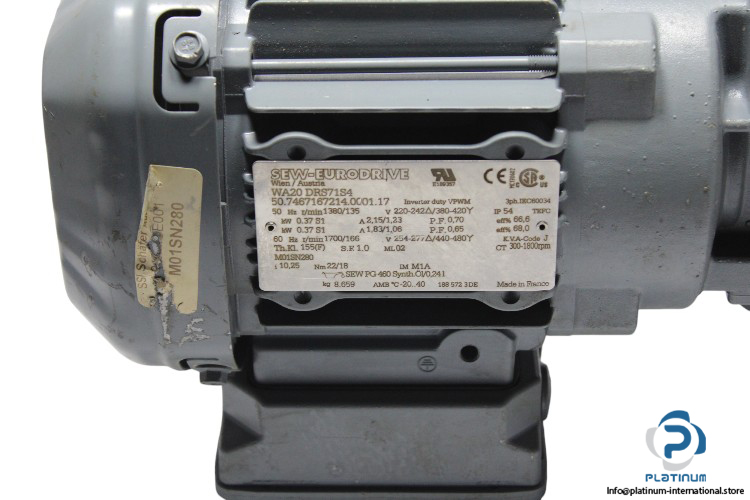

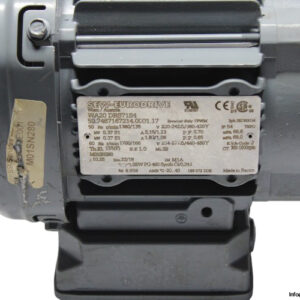

SEW WA20 DRS71S4 Gear Motor
The SEW WA20 DRS71S4 Gear Motor is a high-performance drive system designed for industrial applications requiring precision, efficiency, and durability. Featuring a hollow shaft design, multi-range voltage compatibility, and optimized torque output, this gear motor ensures reliable operation in various industrial environments.
- Manufacturer: SEW
- Type: Gear Motor
- Model: WA20 DRS71S4
- Part No: 50.7467167214.0001.17
Technical Specifications
- Gear Unit: WA20
- Speed 50Hz [r/min]: 1380 / 135
- Speed 60Hz [r/min]: 1700 / 166
- Total Ratio [i]: 10.25 / finite
- No. of Teeth (nom./denominator): 41 / 4
- Ma max [Nm]: 25
- Output Torque at 50/60 Hz [Nm]: 22 / 18
- Service Factor SEW-FB: 1.15 / 1.40
- Mounting Position: M1A
- Lubricant / Volume [l]: SEW PG 460 Synth.Oil / 0.24
- Hollow Shaft Diameter: 20 mm
- Design: Hollow Shaft
- Motor Power [kW]: 0.37
- Cyclic Duration Factor S1-S10: S1
- Multi-Range Voltage 50Hz [V]: 220-242 Delta / 380-420 Star
- Nominal Current 50Hz [A]: 2.15 / 1.23
- Multi-Range Voltage 60Hz [V]: 254-277 Delta / 440-480 Star
- Nominal Current 60Hz [A]: 1.83 / 1.06
- Power Factor (cos phi): 0.70 / 0.65
- Thermal Class / Enclosure [IP]: 155(F) / 54
