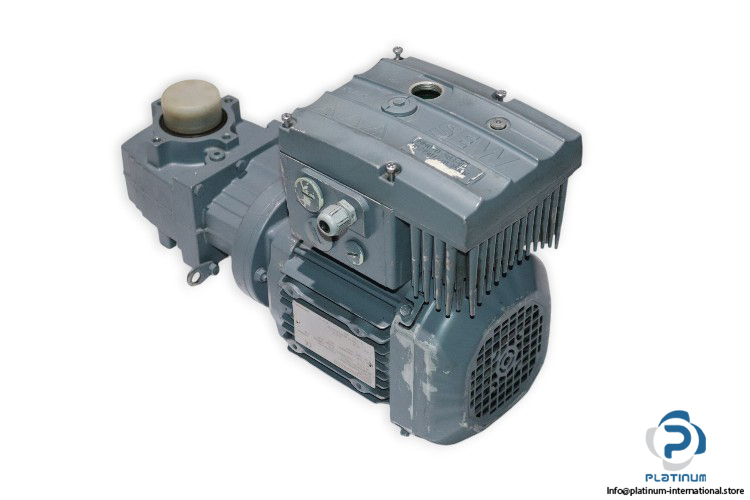

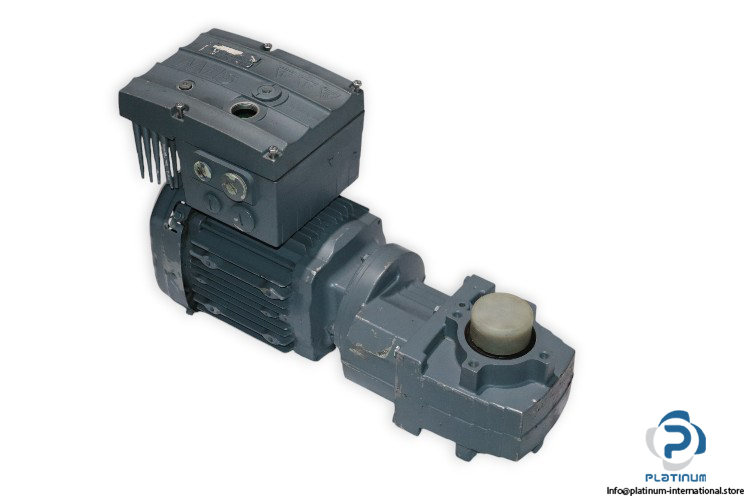

SEW WH37/T DRS80S4/MM07 Spiroplan Gearmotor

SEW WH37/T DRS80S4/MM07 SPIROPLAN GEARMOTOR

The SEW WH37/T DRS80S4/MM07 Spiroplan Gearmotor offers high efficiency and precise speed control for industrial applications. Featuring a total ratio of 6.97 and an output torque of 33 Nm, it provides reliable and smooth operation across a wide range of speeds. Additionally, it is equipped with the SEW MM07D-503-00 MOVIMOT Inverter Drive for enhanced performance.

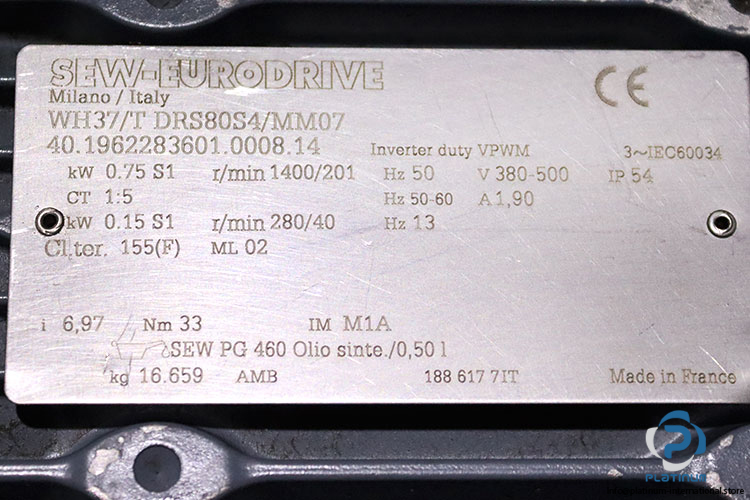

Manufacturer: SEW

Type: Spiroplan Gearmotor

Model: WH37/T DRS80S4/MM07

Part No: 40.1962283601.0008.14

Technical Specifications

• Gear Unit: WH37/T
• Input Speed [r/min]: 1400 – 280
• Output Speed [r/min]: 201 – 40
• Total Ratio: 6.97
• Output Torque [Nm]: 33
• Service Factor SEW-FB: 2.10
• Mounting Position: M1A
• Lubricant / Volume [l]: SEW PG 460 Synth.Oil / 0.50
• Hollow Shaft: 20mm
• Design: Hollow shaft with shrink disc
• Motor Power [kW]: 0.75 / 0.15
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V]: 380-500
• Line Frequency [Hz]: 50-60
• MM Rated Main Current [A]: 1.90
• MM Rated O/P Current [A]: 2.50
• Thermal Class/Enclosure [IP]: 155(F) / 54

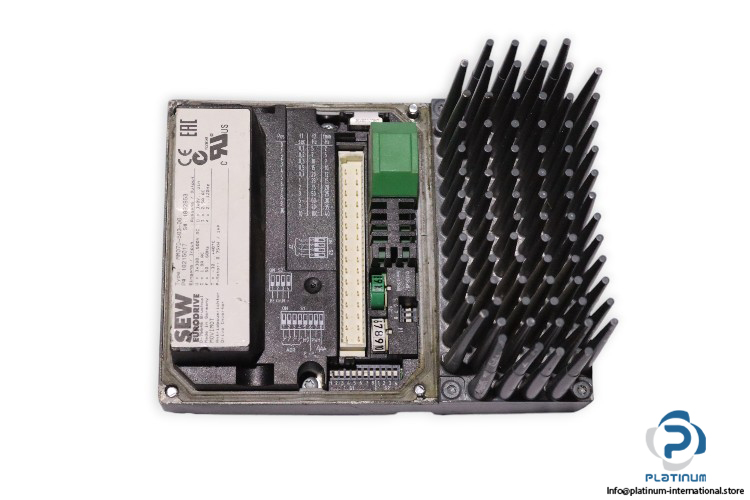

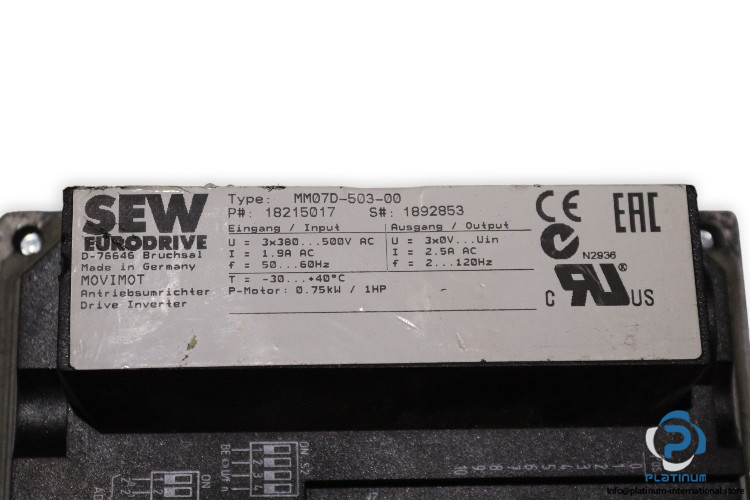

Inverter Drive (MOVIMOT MM07D-503-00)

• Input: Supply Voltage: 3-Phase 380 / 500 V AC, Rated Current: 1.9 A, Frequency: 50 / 60 Hz
• Output: Rated Voltage: 3-Phase 0 / 380 “ 500 V AC, Rated Current: 2.5 A, Frequency: 2 / 120 Hz
