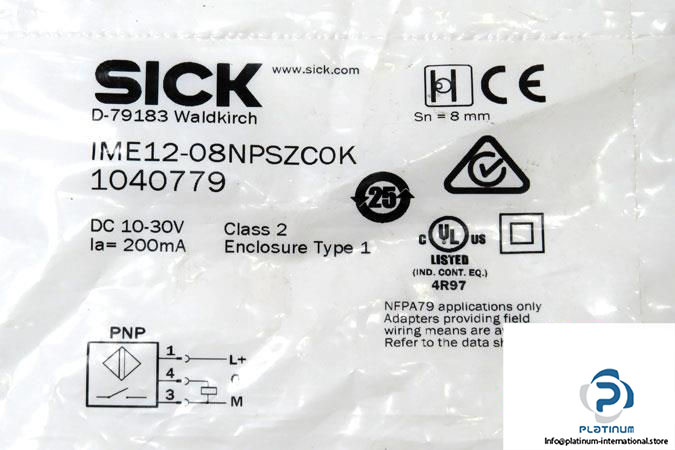

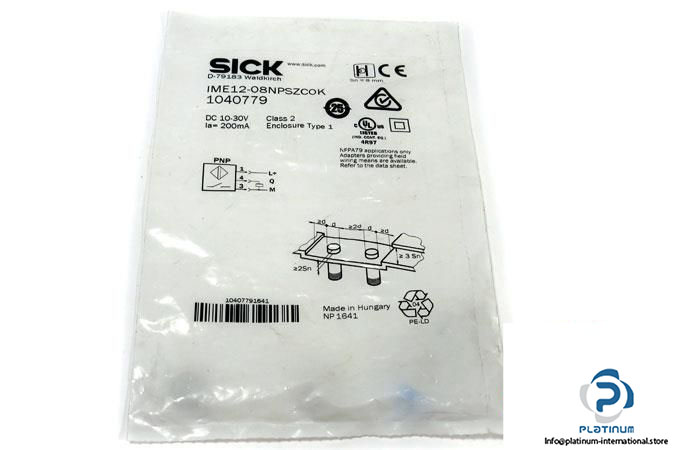

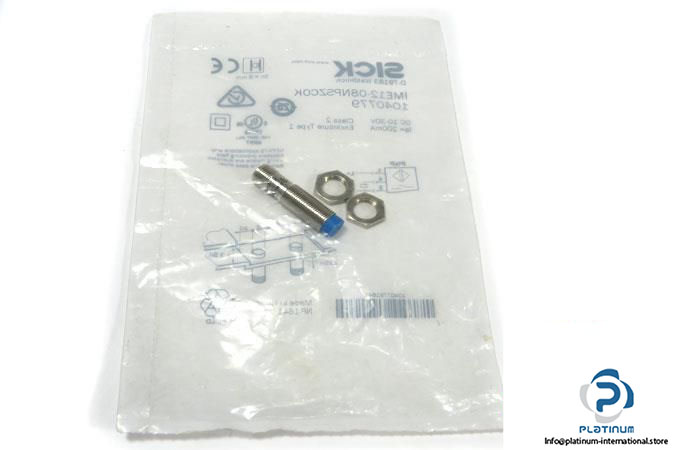

Sick IME12-08NPSZCOK Inductive Sensor

Manufacturer:  SICK

Type:  INDUCTIVE PROXIMITY SENSOR

Model: IME12-08NPSZCOK

Part No.: 1040779

Applications: for use in industrial environments

Sensing Range: 8 mm

Time delay before availability: 100 ms

Operating Voltage: 10 … 30 V DC

Ripple: 10%

Switching frequency: 2000 Hz

Continuous current: 200 mA DC

Switching output: PNP

Switching mode: Normally open

Connector type: M12, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 75°C

Diameter, housing length: 12, 65 mm

Housing: Threaded type

Housing material: Nickel-plated Brass

Sensing face material: Plastic, PA 66

Mounting: Non-flush mountable

Condition: New
