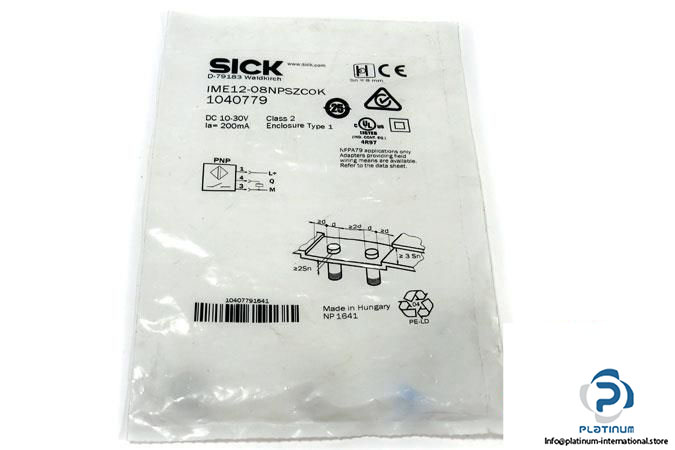

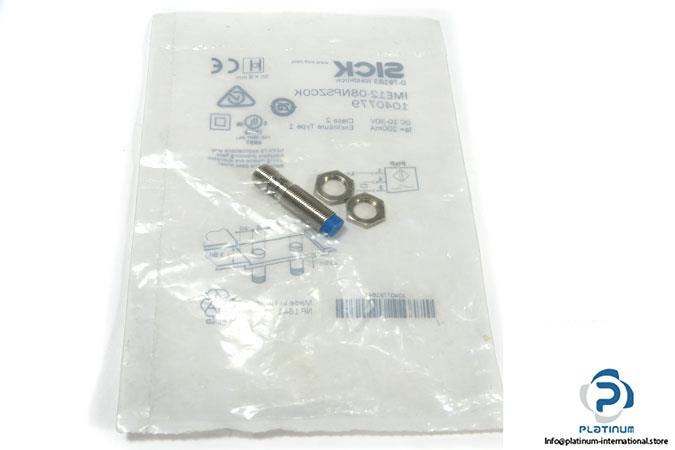

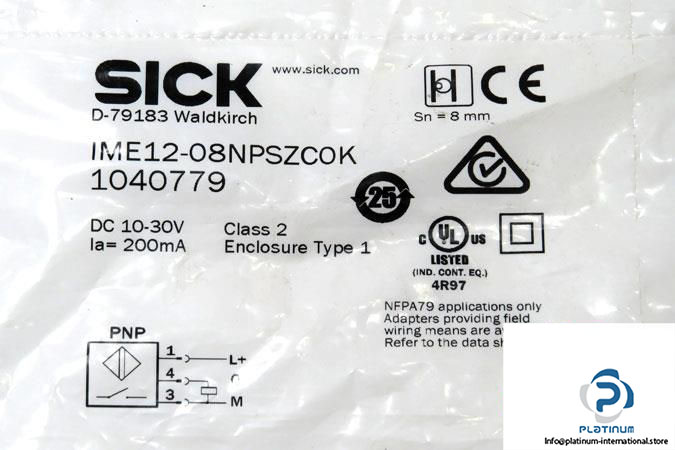

Sick IME12-08NPSZCOK Inductive Sensor
Manufacturer: SICK
Type: INDUCTIVE PROXIMITY SENSOR
Model: IME12-08NPSZCOK
Part No.: 1040779
Applications: for use in industrial environments
Sensing Range: 8 mm
Time delay before availability: 100 ms
Operating Voltage: 10 … 30 V DC
Ripple: 10%
Switching frequency: 2000 Hz
Continuous current: 200 mA DC
Switching output: PNP
Switching mode: Normally open
Connector type: M12, 4-pin
Enclosure rating: IP67
Ambient Operating temperature: -25 … 75°C
Diameter, housing length: 12, 65 mm
Housing: Threaded type
Housing material: Nickel-plated Brass
Sensing face material: Plastic, PA 66
Mounting: Non-flush mountable
Condition: New
