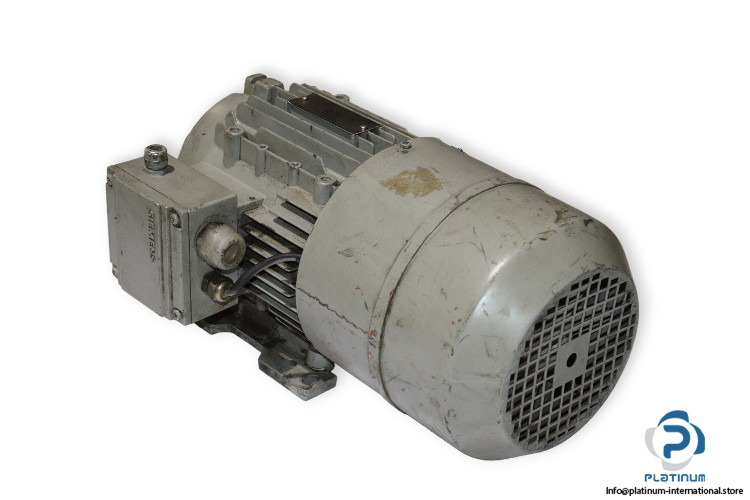

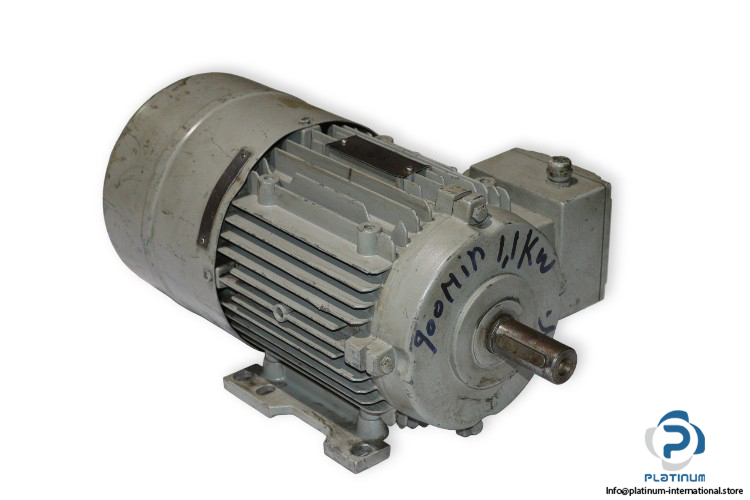

Siemens 1LA70966AA10-Z Brake Motor
Manufacturer: Siemens
Type: Brake Motor

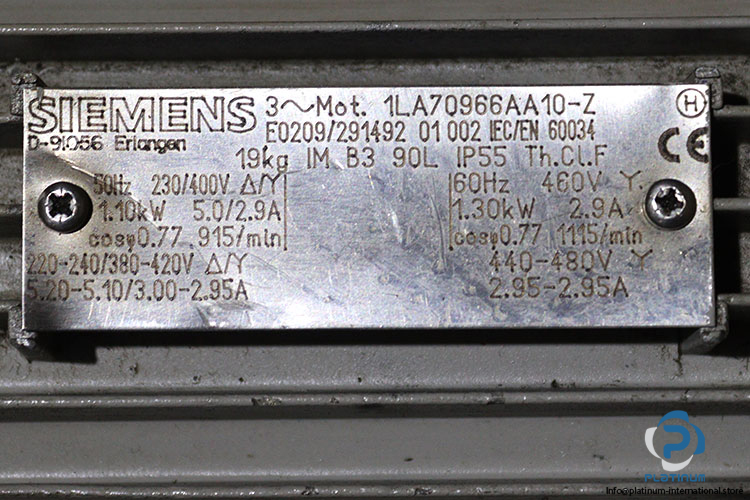

Model: 1LA70966AA10-Z
Rated Power [kW]: 1.1/1.3
Rated Voltage [V]: 230-400/460
Rated Current [A]: 5.0-2.9/2.9
Rated Speed [min-1]: 915/1115
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Power Factor [cos]: 0.77
Mounting Position [IM]: B3
Duty: S1
Thermal Class: F

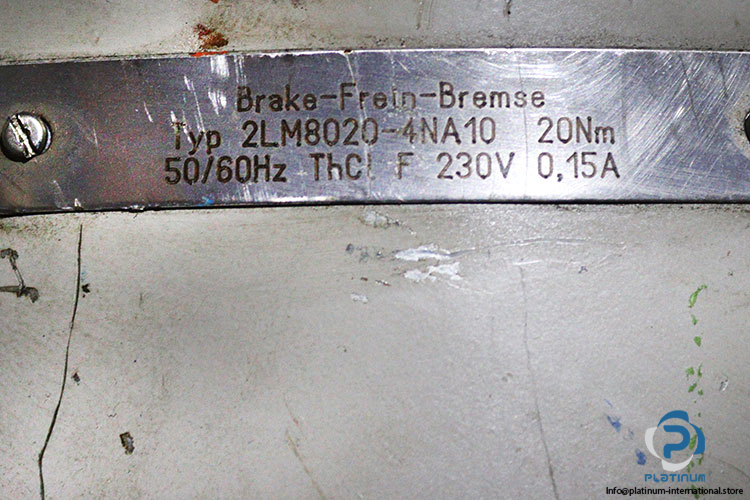

Brake: 2LM8020-4NA10
Brake Voltage [V]: 230
Brake Current [A]: 0.15
Brake Torque [Nm]: 20
Frequency [Hz]: 50/60
Thermal Class: F
