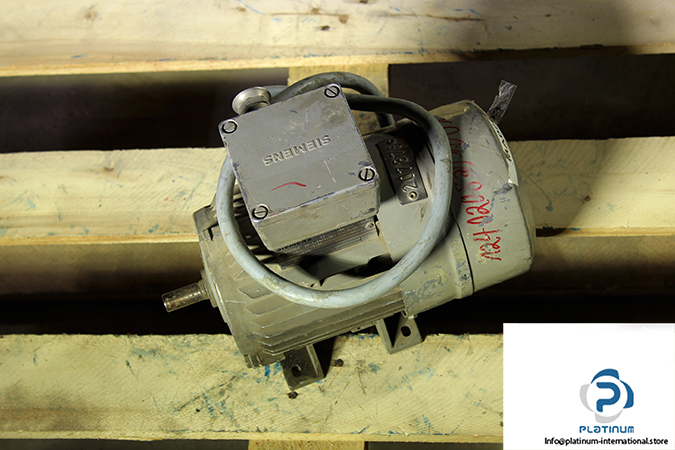

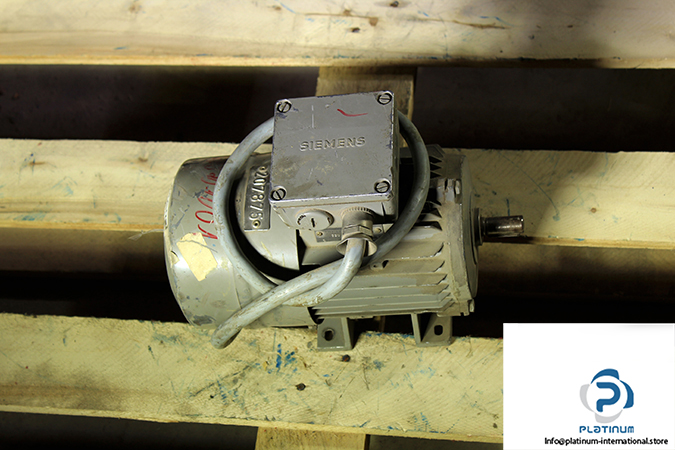

Siemens 1LC3073-4AC20 Brake Motor
Manufacturer: Siemens
Type: Brake Motors

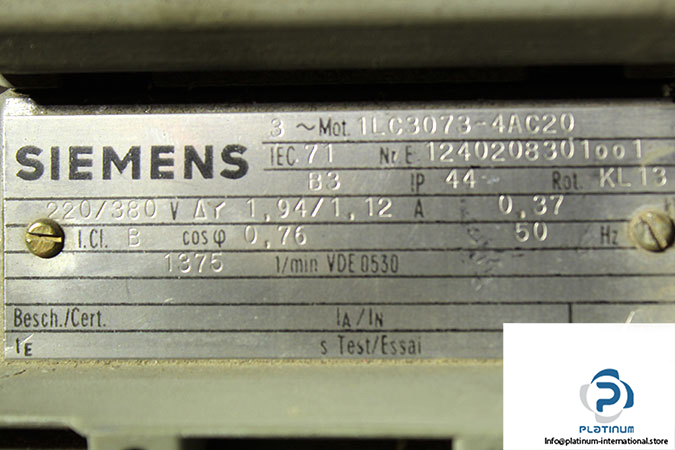

Model: 1LC3073-4AC20
Motor Speed [r/min]: 1375
Motor Power [kW]: 0.37
Rated Voltage [V]: 220/380 Delta/Star
Nominal Current [A]: 1.94/1.12 Delta/Star
Motor Frequency [Hz]: 50
Cos Phi: 0.76
Thermal Class: B
Duty: S1
Mounting Position [IM]: B3
Protection Class [IP]: 44

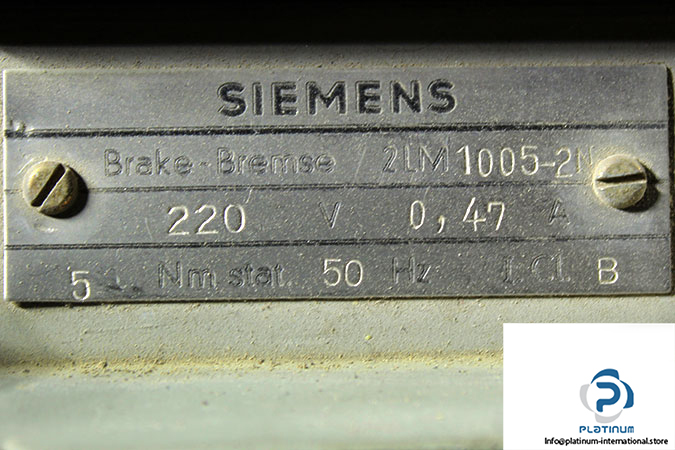

Brake Model: 2LM1005-2M
Brake Voltage [V]: 220
Brake Current [A]: 0.47
Brake Torque [Nm]: 5
Weight [kg]: 9,9
