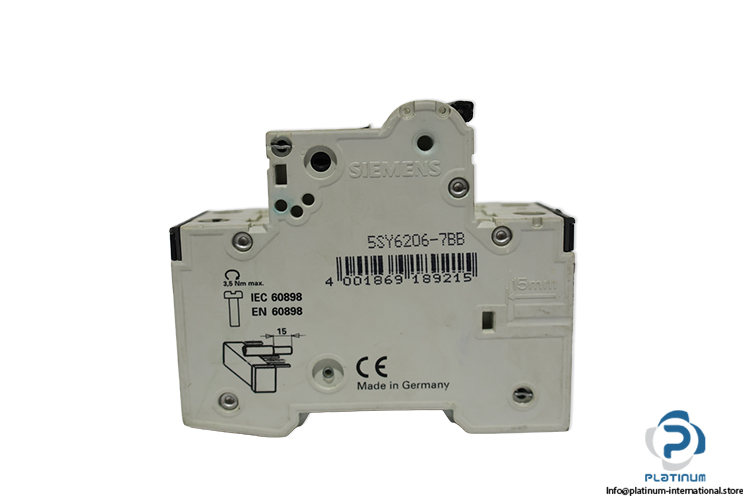

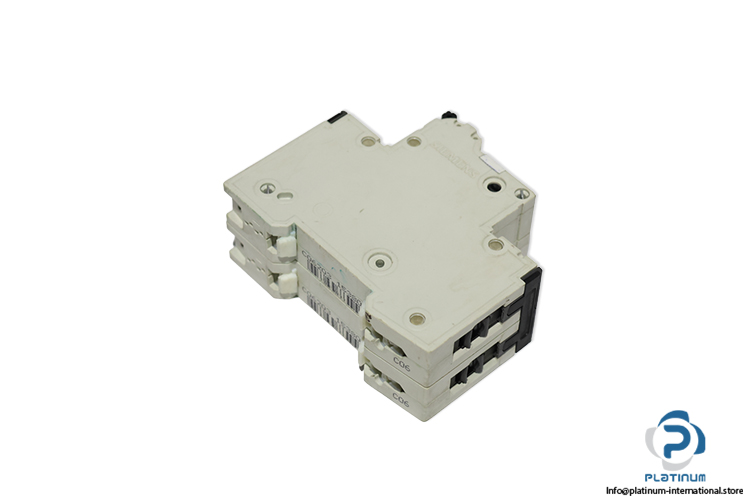

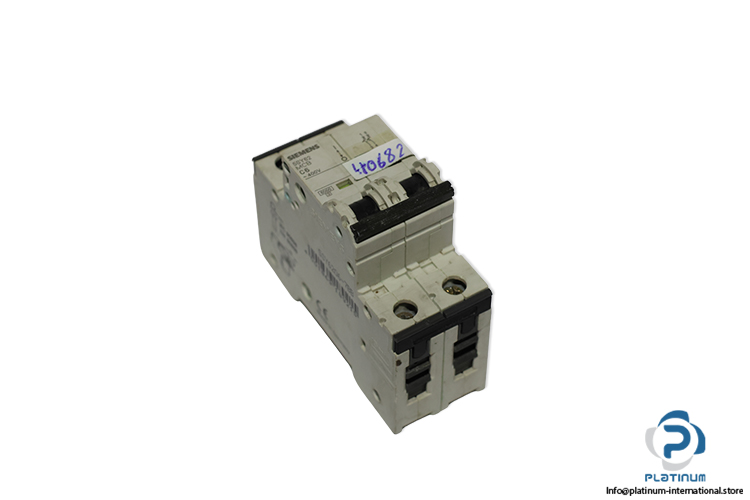

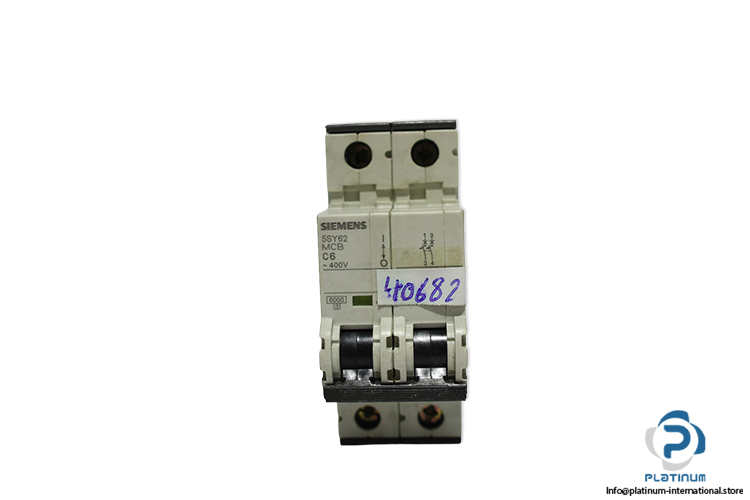

Siemens 5SY6206-7BB Miniature Circuit Breaker
Used
In stock1 unitReady to ship
SIEMENS 5SY6206-7BB Miniature Circuit Breaker, 2-pole, 400 V AC, 50/60 Hz, IP20, IEC 60898, designed for electrical circuit protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | 4 001869 189215 |
| number of poles | 2 |
| Voltage | 400 V AC |
| frequency | 50/60 Hz |
| connectable conductor cross-section solid and stranded | min 0.75 mm²/ max 35 mm² |
| connectable conductor cross-section finely stranded with core end processing | min0.75 mm²/max 25 mm² |
| AWG number as coded connectable conductor cross section | min 18/ max 4 |
| tightening torque [lbf·in] with screw-type terminals | min 22 lbf·in/ max 31 lbf·in |
| tightening torque with screw-type terminals | min 2.5 N·m/ max 3.5 N·m |
| protection class | IP20 |
| Standards | IEC 60898 |
| Dimensions | 90 x 36 x 76 mm |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1105067 |
| Weight | 0,3 |
