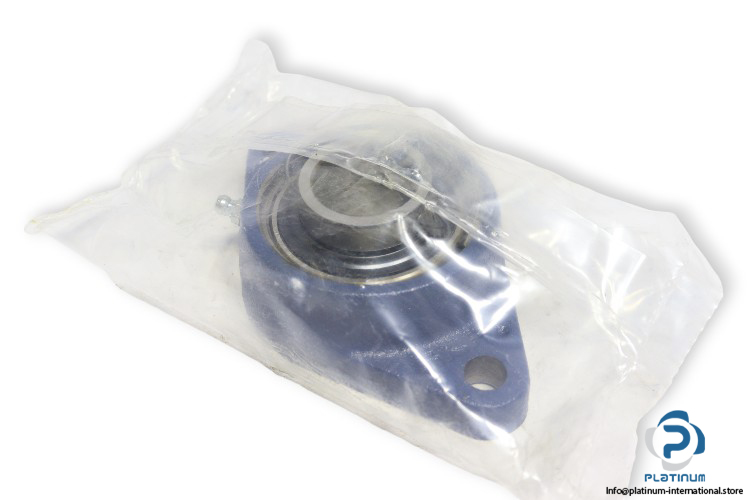

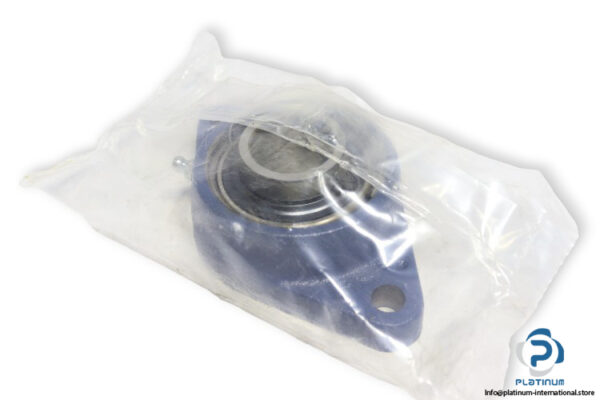

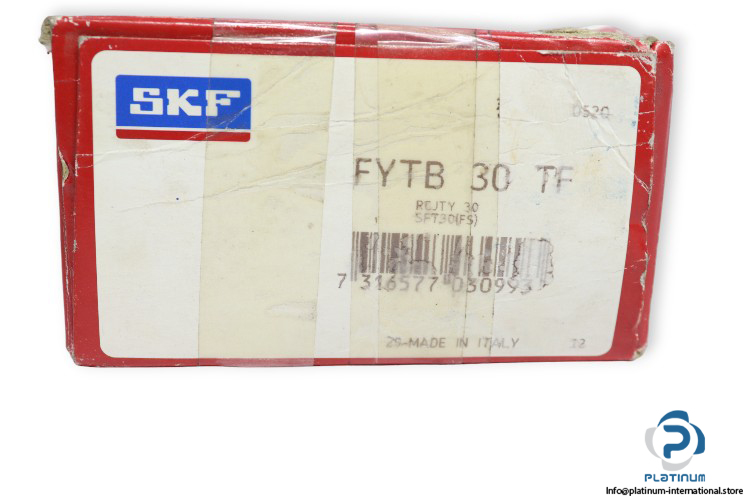

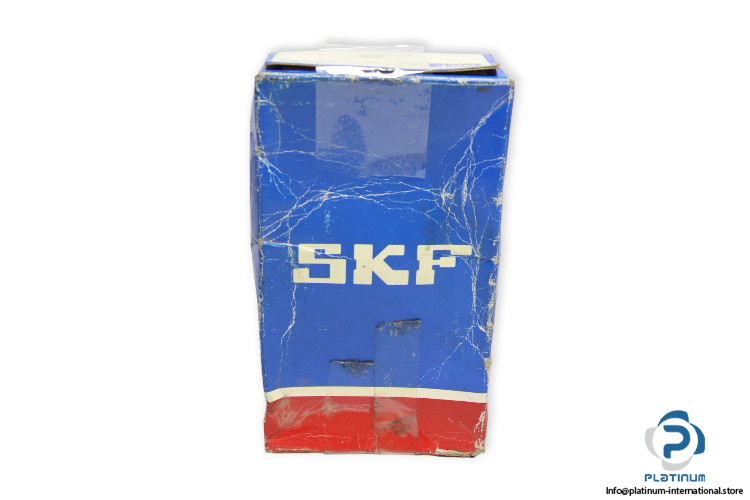

SKF Fytb 30 TF Oval Flanged Ball Bearing Unit

Manufacturer: SKF
Type: Oval flanged ball bearing unit

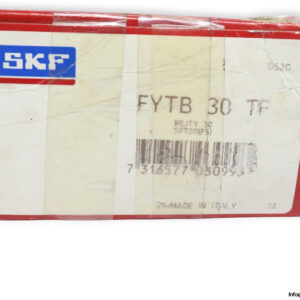

Model: FYTB 30TF

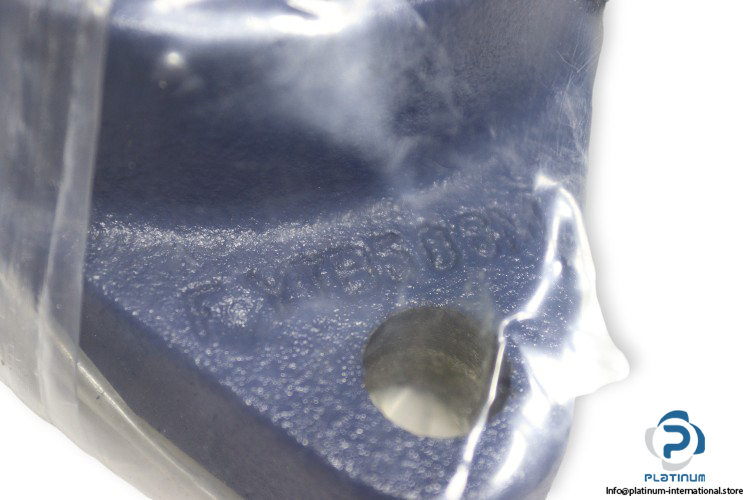

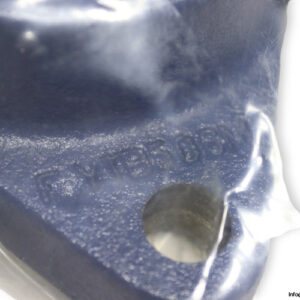

Housing: FYTB 506M

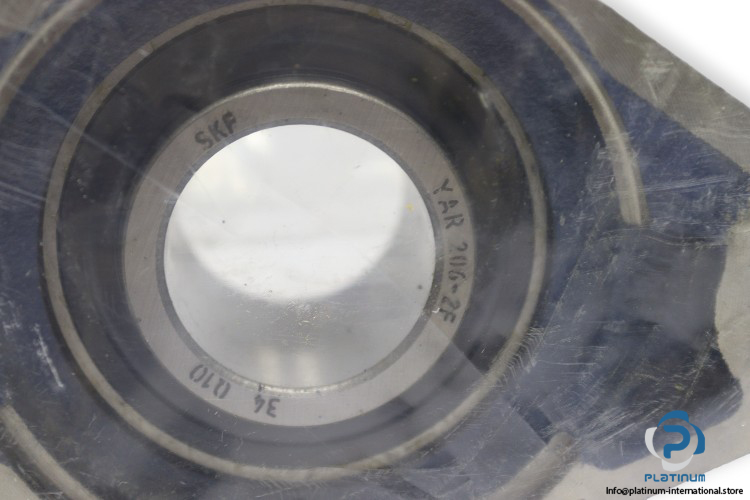

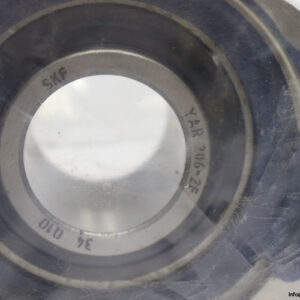

Bearing: YAR 206-2F

Dimensions
Shaft diameter d: 30 mm
Width of housing A: 32.5 mm
Width of inner ring B: 38.1 mm
Overall bearing width B1: 38.1 mm
Distance of attachment bolts J: 116.5 mm
Overall length L: 83 mm
Overall height H: 141.5 mm
Diameter of attachment bolt hole N: 11.5 mm
Overall width T: 42.2 mm
Basic dynamic load rating C: 19.5 kN
Basic static load rating C₀: 11.2 kN
Fatigue load limit P_u: 0.475 kN
Limiting Speed: 6300 r/min
Sealing: Contact Seal and flinger on both sides
Material, housing: Cast iron
mounting: 2-Bolt Base
