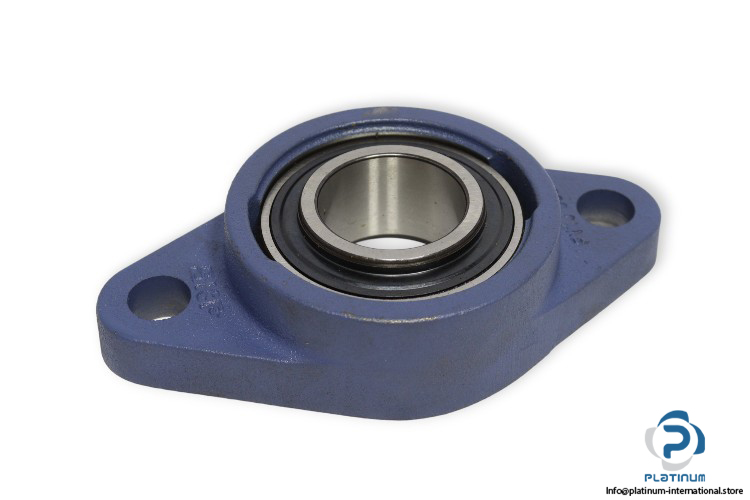

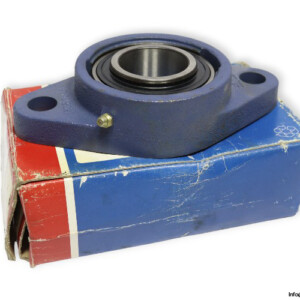

SKF Fytj 45 KF Oval Flanged Ball Bearing Unit
New
In stock1 unitReady to ship
Manufacturer:
SKF
Type:
Oval flanged ball bearing unit with adapter sleeve locking
Model:
FYTJ45 KF
Housing:
FYTJ 509
Bearing:
YSA 209-2FK
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: SKF
Type: Oval flanged ball bearing unit with adapter sleeve locking
Model: FYTJ45 KF
Housing: FYTJ 509
Bearing: YSA 209-2FK

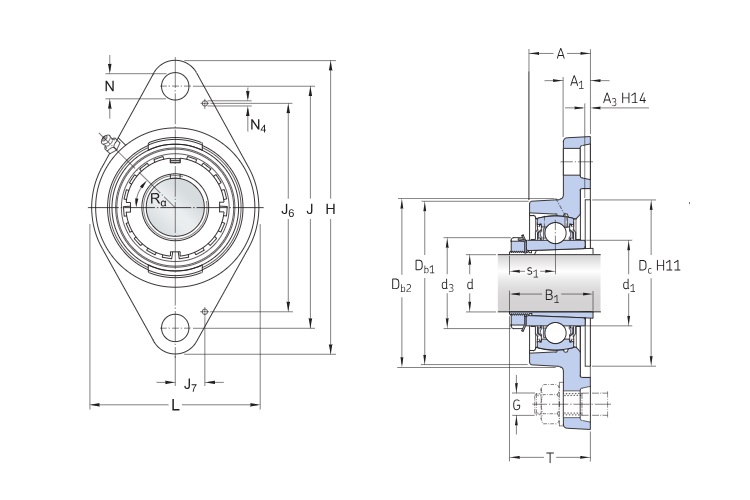

Dimensions
Shaft diameter d: 40 mm
Width of housing A: 38 mm
Width of inner ring B: 35 mm
Overall bearing width B1: 34.9 mm
Distance of attachment bolts J: 148 mm
Overall length: 108 mm
Diameter of attachment bolt hole N: 19 mm
Overall width T: 50.75 mm
Basic dynamic load rating C: 33.2 kN
Basic static load rating C0: 21.6 kN
Fatigue load limit Pu: 0.915 kN
Limiting Speed: 4300 r/min
Sealing: Contact Seal and flinger on both sides
Material, housing: Cast iron
mounting: 2-Bolt Base
