SKF Luhr 25-2LS Linear Bearing Unit

Manufacturer: SKF

Type: Linear Ball Bearing Units with Closed Housing and LBBR Linear Ball Bearings

Model: LUHR25 2LS

Shaft diameter F_w: 25 mm

Design type: Closed type

Dynamic load rating: 2120 N

Static load rating: 1560 N

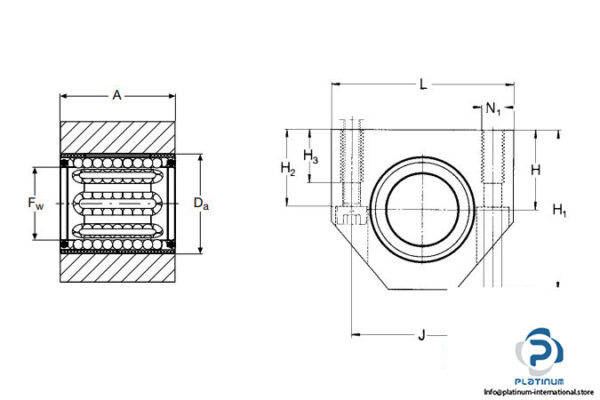

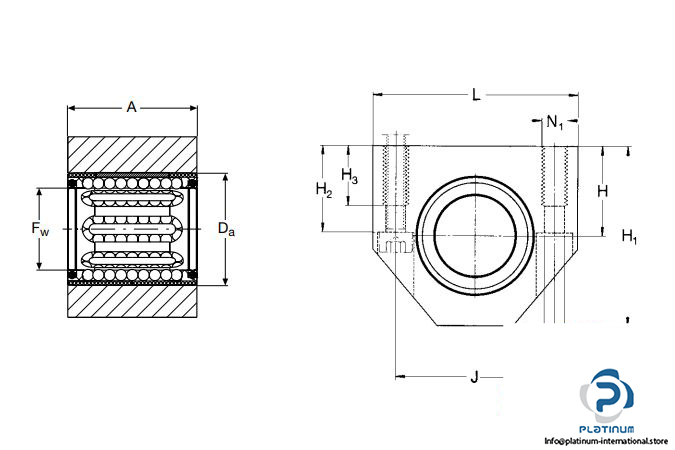

Dimensions:

A: 40 mm

H₁: 54 mm

L: 62 mm

J: 48 mm

Seals: 2LS, with two seals

Weight: 0.27 kg
