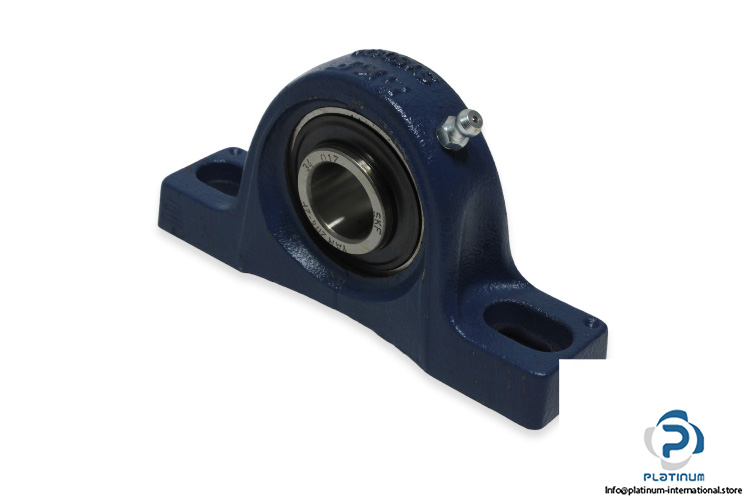

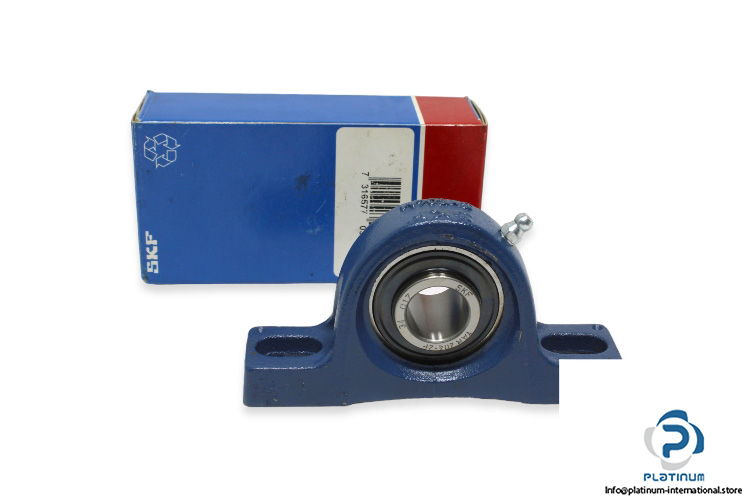

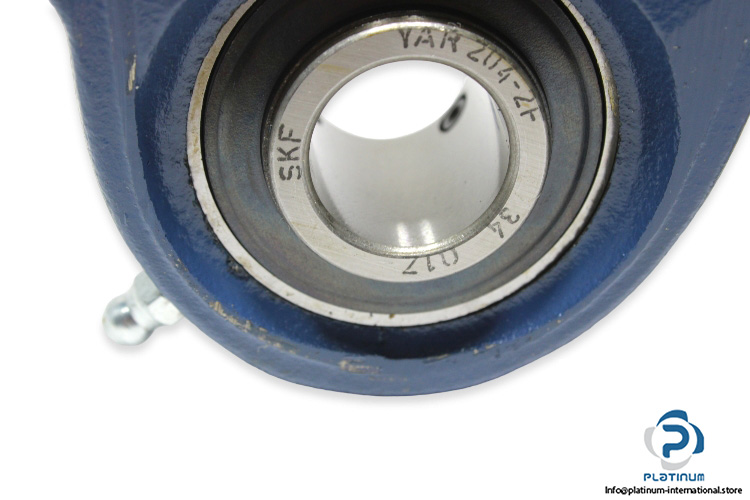

SKF SY 20 TF Pillow Block Ball Bearing Unit
New
In stock2 unitsReady to ship
Manufacturer:
SKF
Type:
Two-Bolt Pillow block ball bearing unit with extended inner ring and set screw locking
Model:
SY20TF
Housing:
SY 504 M
Bearing:

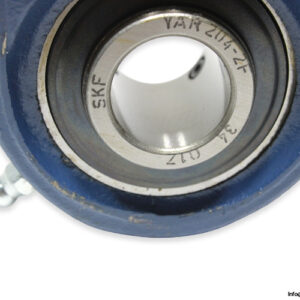

YAR 204-2F
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: SKF
Type: Two-Bolt Pillow block ball bearing unit with extended inner ring and set screw locking
Model: SY20TF
Housing: SY 504 M
Bearing: YAR 204-2F

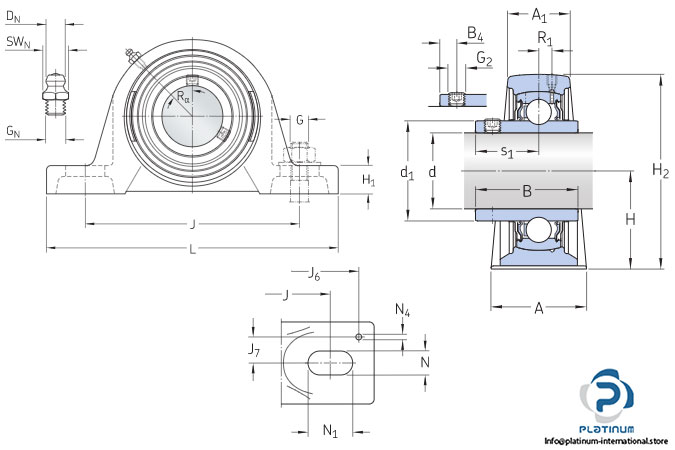

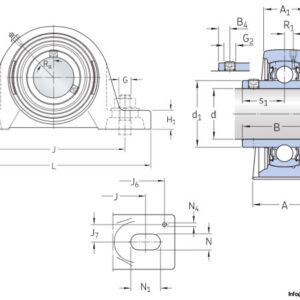

Dimensions
Shaft diameter d: 20 mm
Overall length L: 127 mm
Base width A: 32 mm
Overall height H2: 64.5 mm
Width of inner ring B: 31 mm
Distance of attachment bolts J: 97 mm
Basic dynamic load rating C: 12.7 kN
Basic static load rating C0: 6.55 kN
Fatigue load limit Pu: 0.28 kN
Limiting Speed: 8500 r/min
Sealing: Seal and flinger on both sides
Material, housing: Cast iron
Bore type: Cylindrical
mounting: Two-Bolt Base
