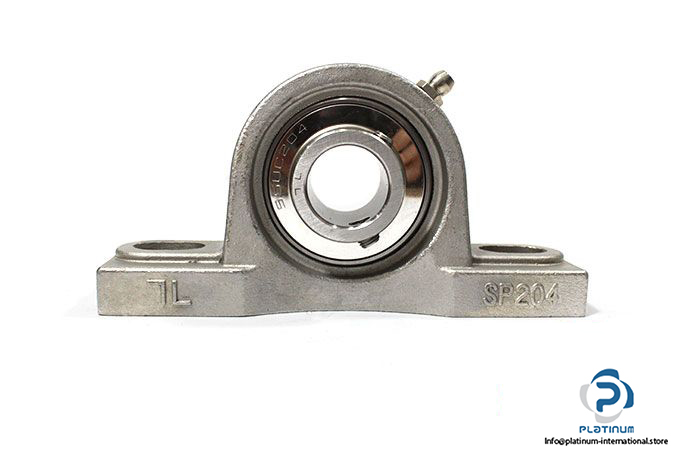

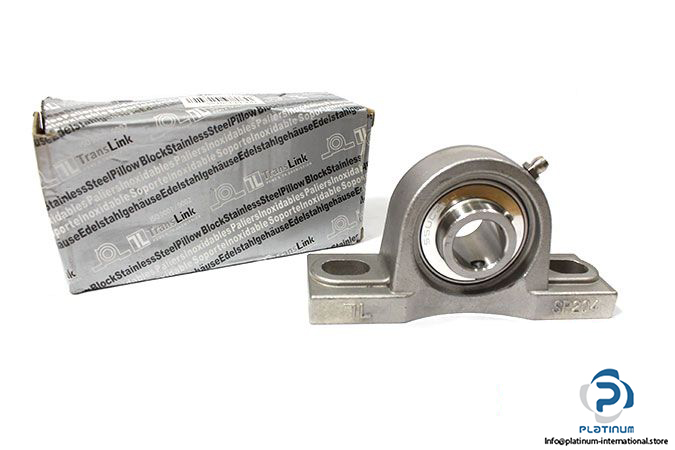

SS-UCP204 TWO-Bolt Pillow Block Unit

Manufacturer: TRANSLINK

Type: TWO-BOLT PILLOW BLOCK UNIT

Series: UCP

Part No.: UCP204-SUS

MRN: TRKUCP204SS

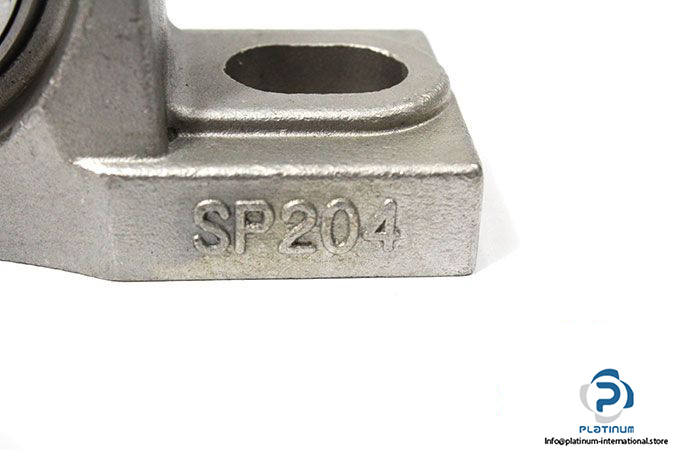

Housing No.: SP204

Bearing No.: UC204

Features:

• The stainless pillow blocks and stainless bearings–also incorporated into the plastic pillow blocks –are made of AISI 440C and AISI 420 quality stainless steel.
• All the pillow block products include full self-alignment of the bearing, hollow set-screws, steel plate slinger for effective expulsion of dust, contact type seal on both sides of the bearing and grease fitting.

Housing Material: Stainless steel

Bore type: Round

Mounting: Two bolt base

Locking device: Set Screw

Bore Diameter: 20 mm

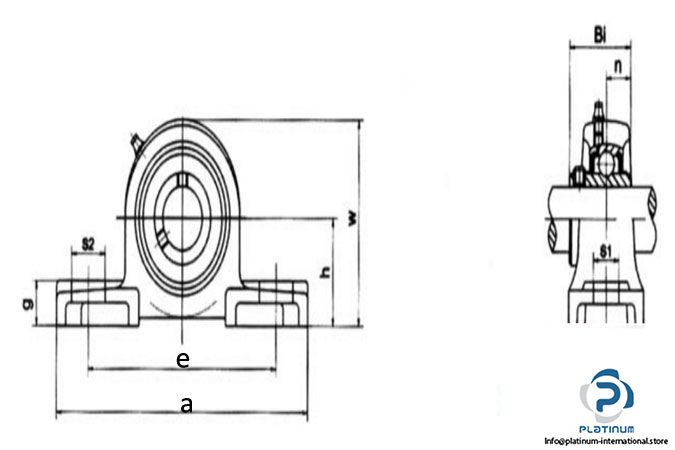

Overall length ( a ): 127 mm

Overall Width ( b ): 38 mm

Overall Height ( w ): 62 mm

thread size ( s2 ): 19 mm

Weight: 0.78 kg
