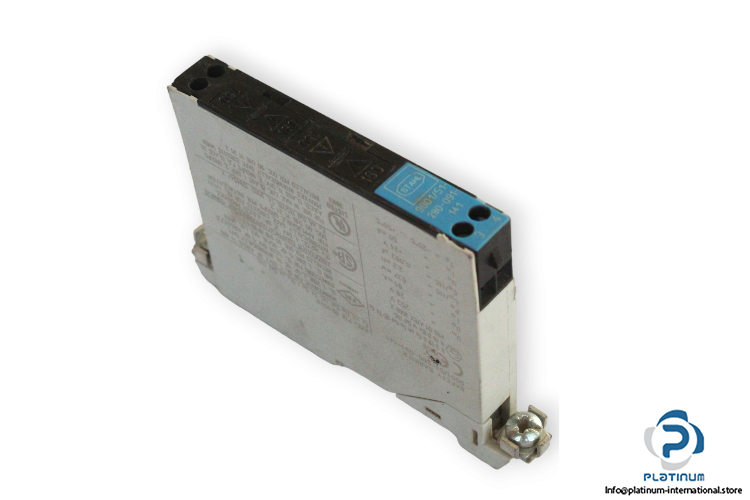

Stahl 9001/51-280-091-141 Safety Barrier
Used
In stock2 unitsReady to ship
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Stahl
Type: Single-Channel Safety Barrier

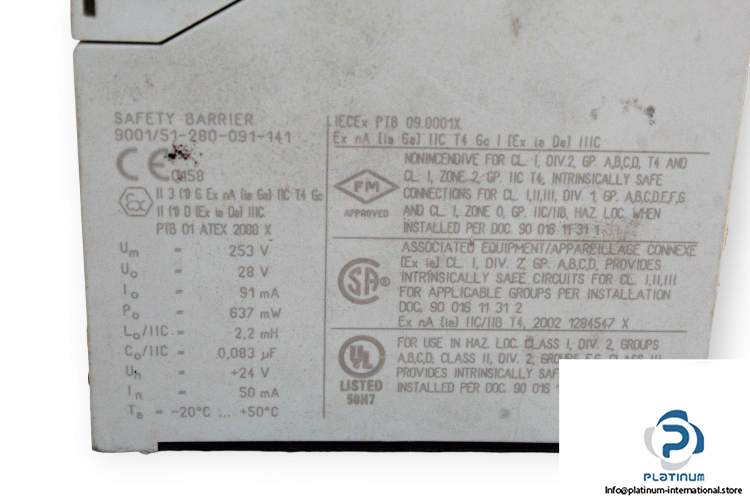

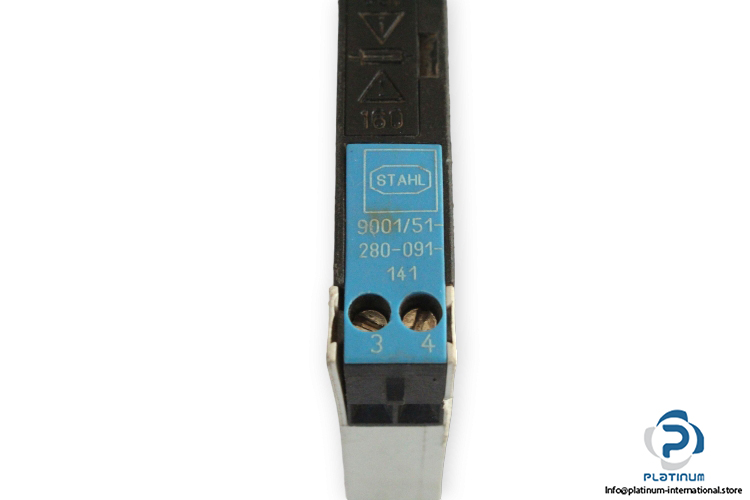

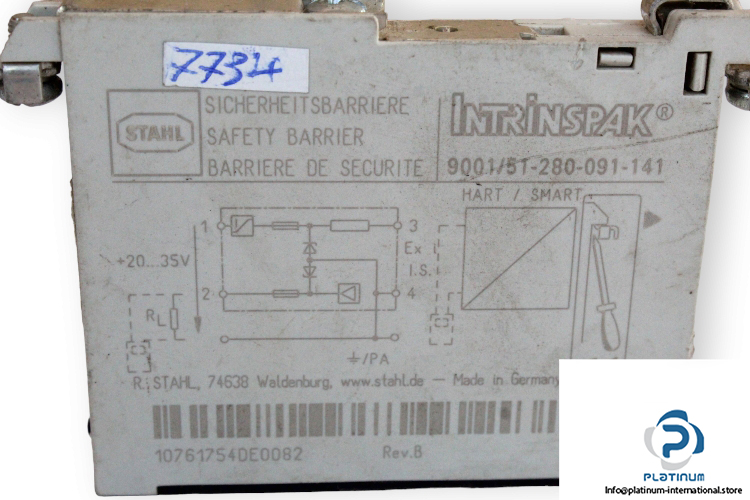

Model: 9001/51-280-091-141
Art No.: 158524
Power Supply: 20 … 35 V DC
Nominal Current: 50 mA
Nominal Voltage: 24 V
Voltage: 253 V
Max. Voltage: 28 V
Max. Current: 91 mA
Max. Power: 637 mW
Current Limitation: 70 mA
No. of Channels: 1
Max. permissible external Inductance: 2.2 mH (IIC)
Max permissible external capacity: 0.083 µF (IIC)
Operating Temperature: -20 … 50 °C
Degree of protection: terminal enclosure IP20, Casing IP40
Dimensions: 103 X 12 X 72 mm
