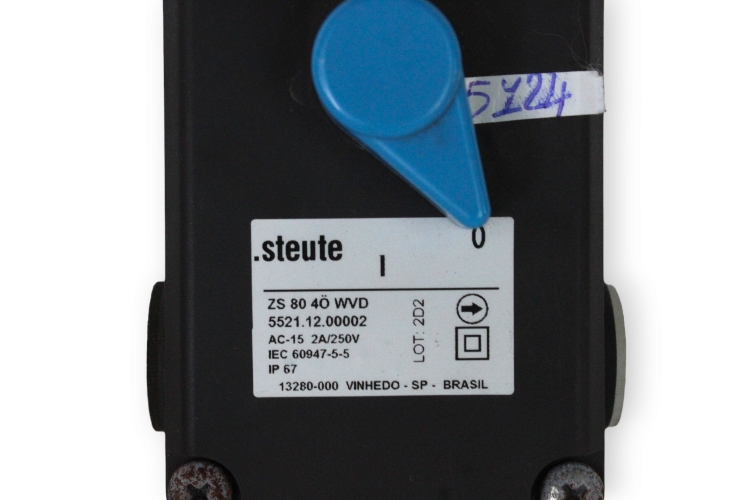

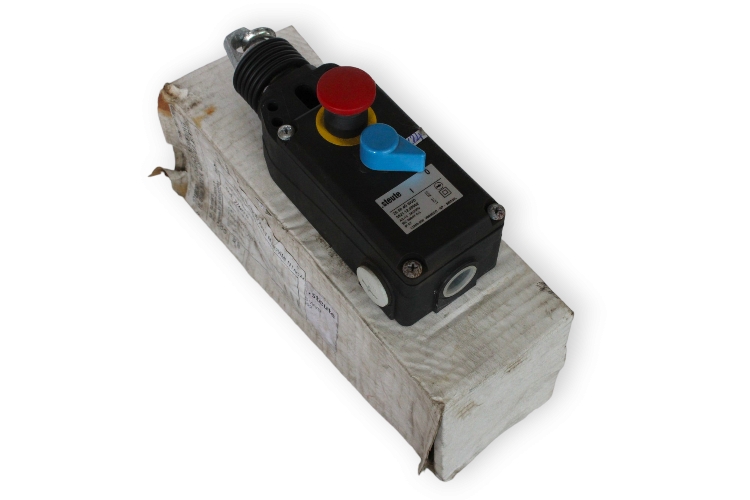

Steute ZS 80 4O WVD Emergency Pull Wire Switch

In stock1 unitReady to ship

Emergency Pull Wire Switch The STEUTE ZS 80 4O WVD is an IP67 emergency pull wire switch with 4 NC contacts, designed for reliable industrial machinery and conveyor safety applications.

Manufacturer
STEUTE
SKU
1100833
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.1178759 / 72942503
Part No.5521.12.00002
Ref No2D2
Applied standardsEN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1
Enclosurealuminium die-cast, powder-coated, RAL 1003
Coverthermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Tightening torquecover screws: 2.4 Nm
Degree of protectionIP67 (IEC/EN 60529)
B10d (10 % load)200 000
TMmax. 20 years
Contact materialsilver
Switching elements4 NC contacts, type Zb
Switching systemslow action, positive break NC contacts A
Connection2 x 4 pole terminal block
Cable cross-sectionmax. 2.5 mm² (incl. conductor ferrules)
Cable entry3 x M20 x 1.5 (for cable glands only)
Rated impulse withstand voltage Uimp2.5 kV
Rated insulation voltage Ui250 V
Conventional thermal current Ithe2 A
Conditional short-circuit current1000 A
Utilisation categoryAC-15; DC-13
Rated operating current/voltage Ie/Ue2 A/250 VAC; 0.25 A/230 VDC; 2 A/24 VDC
Short-circuit protection2 A gG fuse
Ambient temperature–25 °C … +70 °C
Max. wire length100 m
ConditionNew
SKU1100833
Weight0,63
