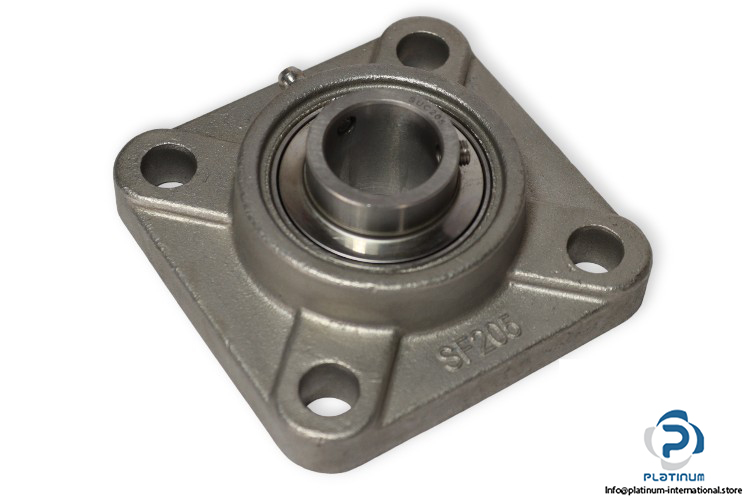

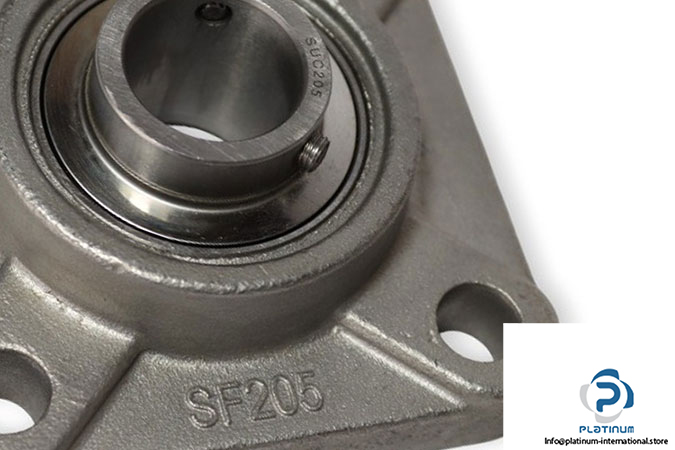

SUCSF205 Stainless Steel Four-Bolt Square Flange Unit
New
In stock1 unitReady to ship
Type: Stainless Steel Four-Bolt Square Flange Unit Model: SUCSF205 Housing No.: SF205 Bearing No.: SUC205
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Type: Stainless Steel Four-Bolt Square Flange Unit
Model: SUCSF205
Housing No.: SF205
Bearing No.: SUC205

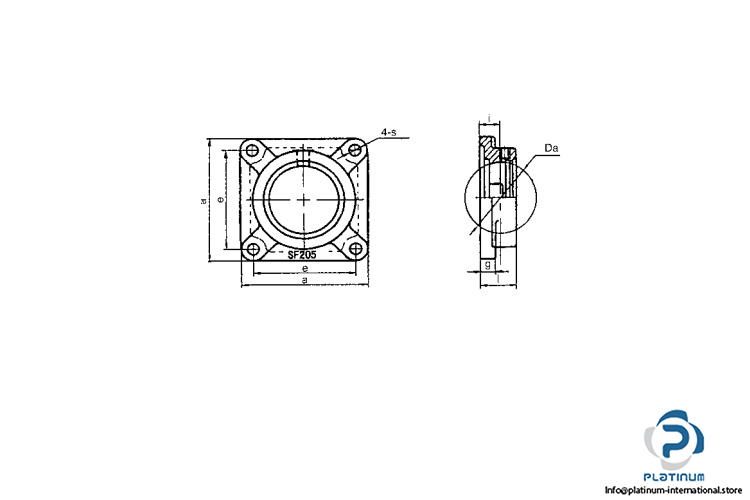

Dimensions
Shaft diameter d: 25 mm
Overall length a: 95 mm
i: 15.9 mm
Housing foot height / flange height g: 14 mm
Overall Width I: 27 mm
Distance Between Attachment Bolts e: 75 mm
Mounting hole length s: 12 mm
Mounting: Four-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
