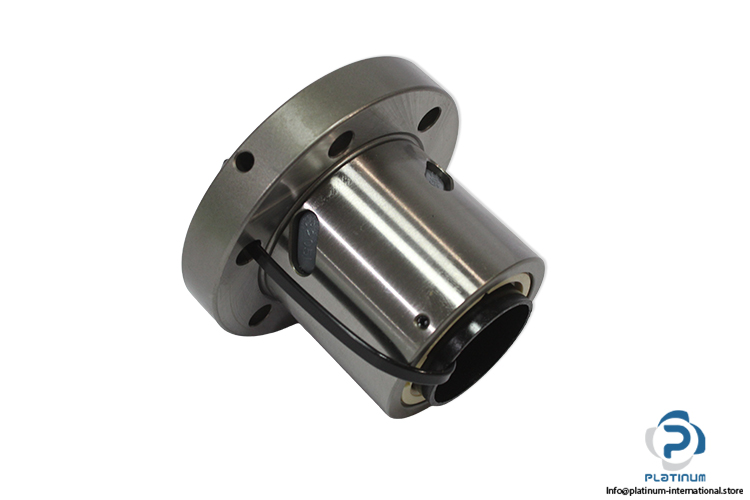

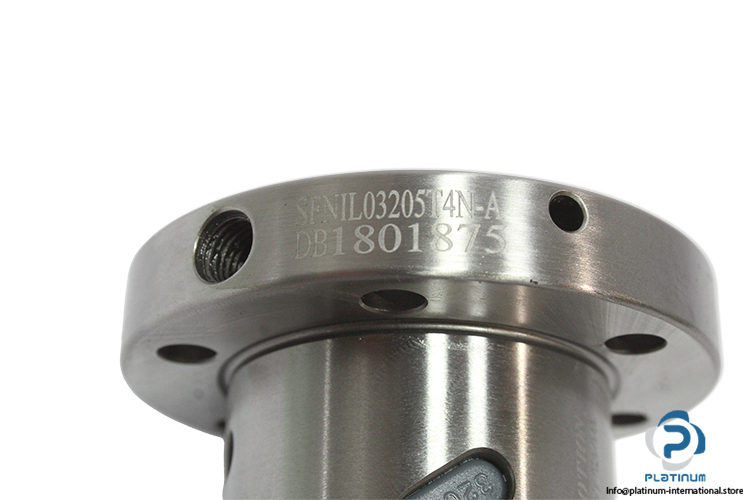

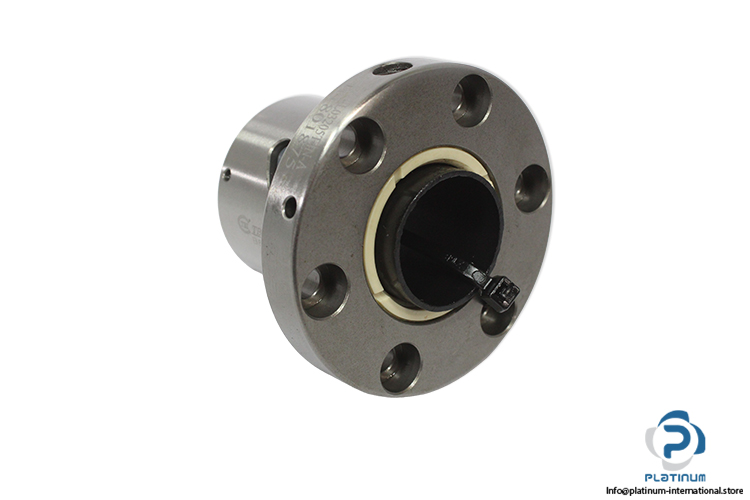

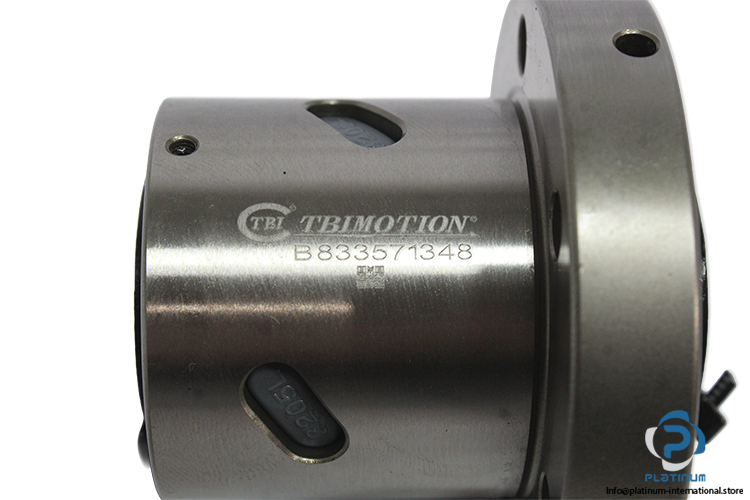

TBI SFNIL03205T4N-A Ball Screw Unit

In stock2 unitsReady to ship

Ball Screw Unit TBI Motion SFNIL03205T4N-A Ball Screw Unit is a strong dust-proof high-precision linear motion component with 32 mm shaft diameter, 5 mm lead, and high load capacity for demanding industrial applications.

Manufacturer
TBI
SKU
1097108
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SeriesSFNI
DesignSFNI, (Single Nut - High Speed/Precision)
DirectionL, left
Shaft Diameter32 mm
Lead5 mm
Nut ShapeA, Round flange
MaterialSCM415H (Nut Body)

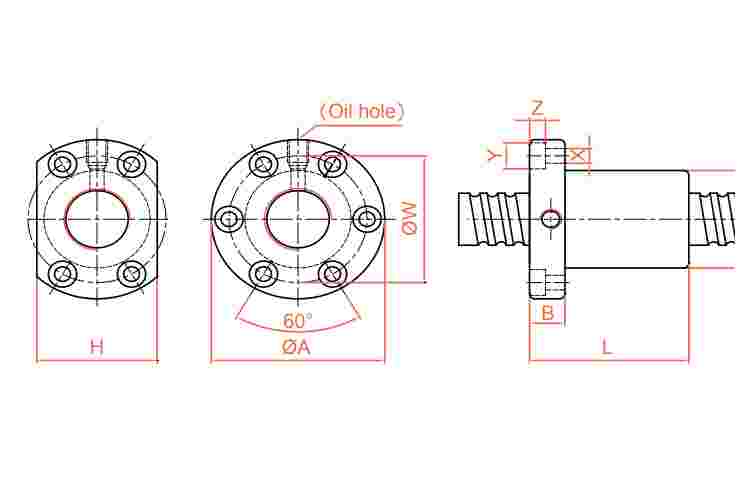

Da3.175 mm
D46 mm
A72 mm
B12 mm
L52 mm
W58 mm
H52 mm
QM8
Internal length of the column610 mm, Total 685 mm
Number of Turns4
Dynamic load Rating1922 kgf
Static load Rating6343 kgf
Stock keyCH001
ConditionNew
SKU1097108
Weight0,47
