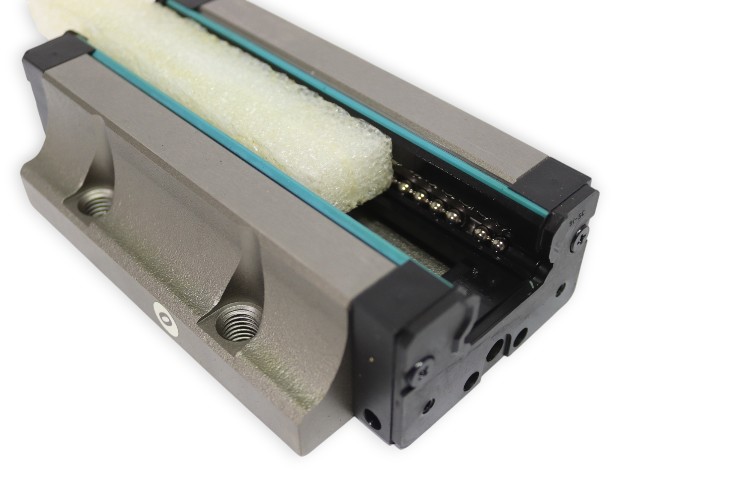

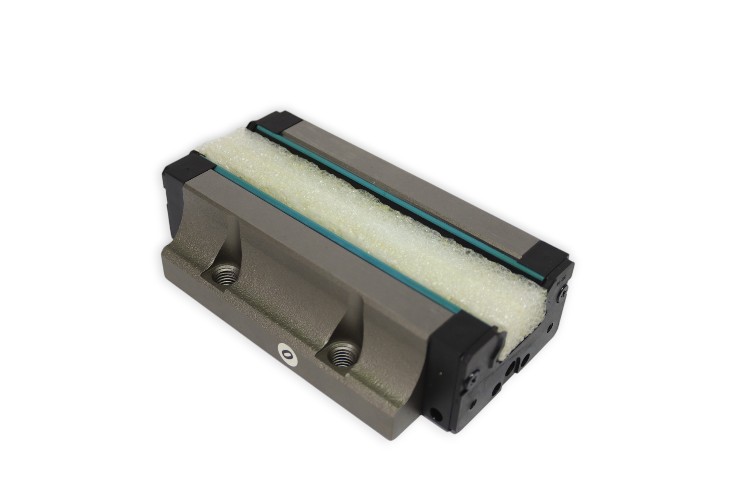

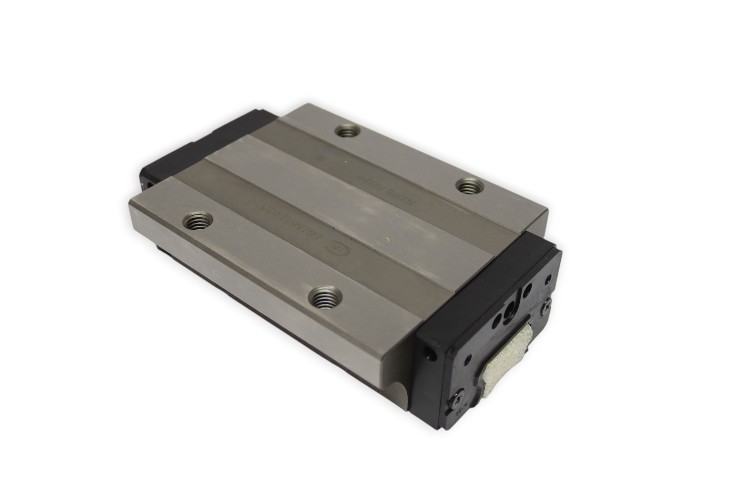

TBI TRH35FE-XN-N-Z0 Linear Guide Block
New
In stock12 unitsReady to ship
159,99$
LINEAR GUIDE BLOCK
TBI TRH35FE-XN-N-Z0 linear guide block with high-assembly design, extra-long block, and 65400 N dynamic load rating. Ideal for precise and stable linear motion applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
TBI TRH35FE-XN-N-Z0 LINEAR GUIDE BLOCK
The TBI TRH35FE-XN-N-Z0 is a high-performance linear guide block designed for smooth and accurate motion in demanding industrial applications. With a high assembly design, extra-long block, and flange type construction, it ensures stability and reliability in linear guidance systems.
Manufacturer: TBI
Type: Linear Guide Block
Model: TRH35FE-XN-N-Z0

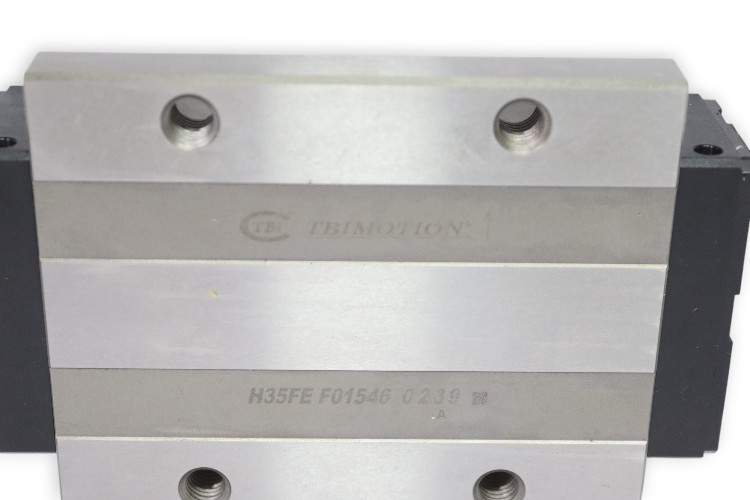

Part No.: H35FE F01546 0239

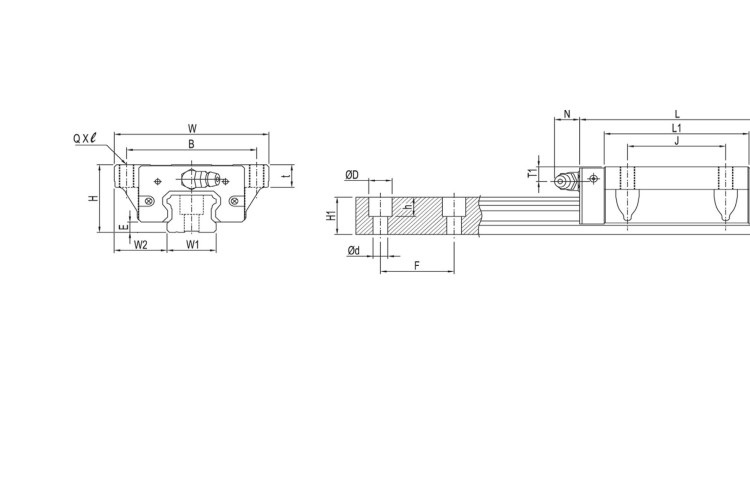

| Size | 35 |
| Height of System | 48 mm |
| Height of Block | 40.5 mm |
| Width | 100 mm |
| Length | 153 mm |
| B | 82 mm |
| J | 62 mm |
| Dynamic Load Rating | 65400 N |
| Static Load Rating | 120400 N |
| Block Type | R (Standard) |
| Height of Assembly Type | H (High-Assembly) |
| Flange Type | F (With Flange) |
| Length of Block | E (Extra-Long) |
| Accuracy Grade | N (Normal) |
| Preload | Z0 (No Preload) |
| Accessory Code | XN |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths-please ask us if you need rails to match your bearing. |
