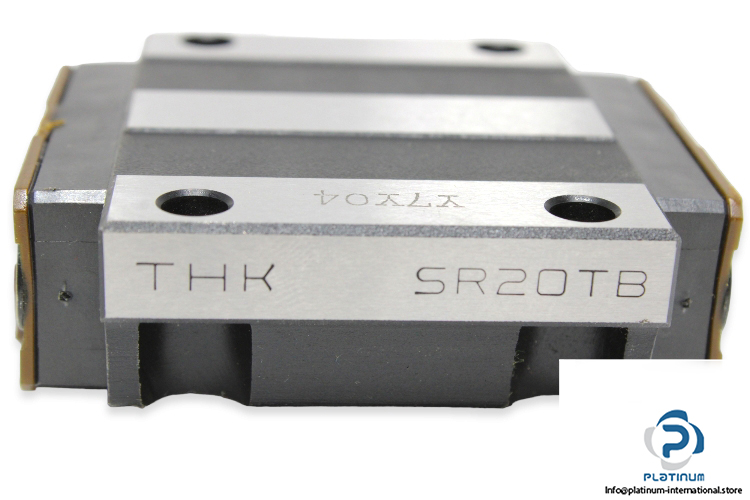

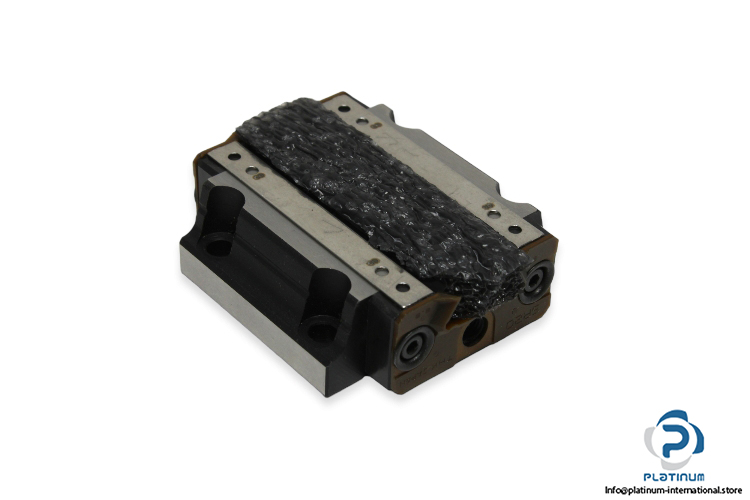

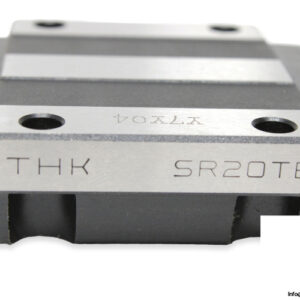

THK SR20TB Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block SR

Model: SR 20 TB



Size: 20

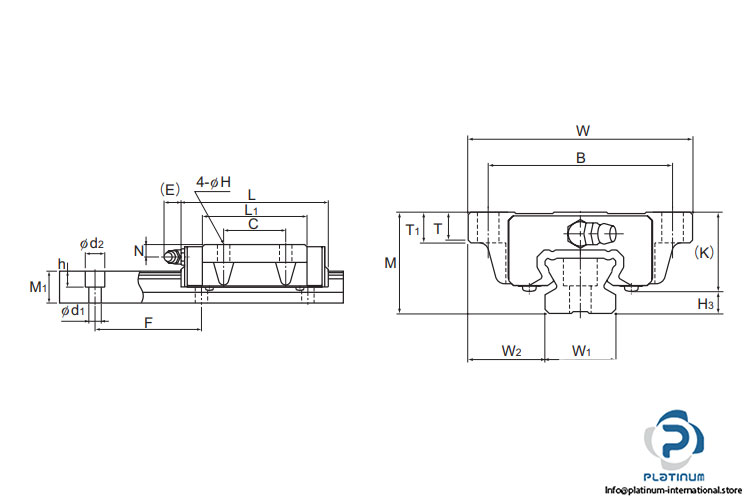

Dimensions

Total Height M: 28 mm

Block Height K: 22 mm

Block Width W: 59 mm

Block Length L: 66.2 mm

L₁: 46.7 mm

B: 49 mm

C: 32 mm

Block Type: Flange Type

Mounting Hole: 4 through holes

Basic Load Ratings:

Dynamic C: 12.5 kN

Static C₀: 25.2 kN
