Trans Link Ucfl 207 Oval Flange Ball Bearing Unit
New
Available on request
Manufacturer:
Trans Link
Type:
Oval flange ball bearing unit
Model:
UCFL207
Bearing No.:
UC207
Housing No.:
FL207
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Trans Link
Type: Oval flange ball bearing unit
Model: UCFL207
Bearing No.: UC207
Housing No.: FL207

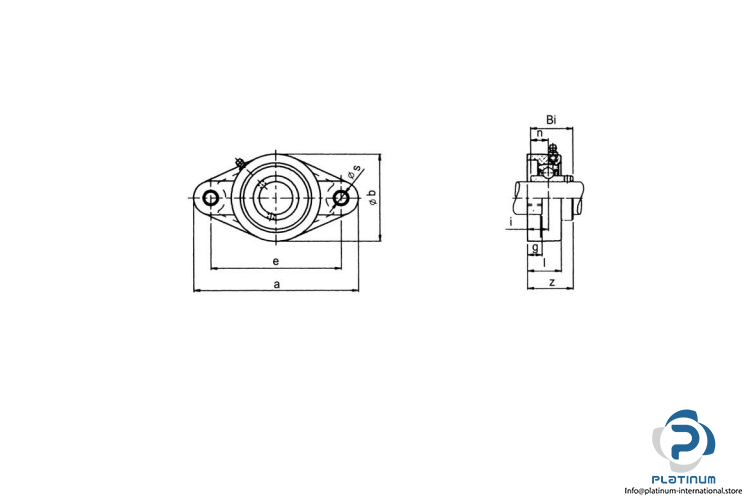

Dimensions
Bore Diameter d: 35 mm
Overall Length b: 90 mm
Overall Height a: 161 mm
Width of Inner Ring Bi: 42.9 mm
Distance Between Attachment Bolts e: 130 mm
Distance mounting surface to bearing center s: 16 mm
Overall unit width z: 44.4 mm
Mounting: Oval Flange
