Trans Link UKT 206 Take UP Ball Bearing Unit

Trans Link Take-Up Ball Bearing Unit UKT 206

Manufacturer: Trans Link

Type: Take-Up Ball Bearing Unit

Model: UKT 206

Housing No.: T 206

Bearing No.: UK 206

The Trans Link Take-Up Ball Bearing Unit UKT 206 is designed to provide robust performance and reliability in a wide range of industrial applications. With a durable construction, this bearing unit is ideal for use in environments that demand precision and long-lasting functionality. The unit features a take-up housing type, ensuring secure and stable placement in systems. Its high-quality ball bearing ensures smooth operation, even under heavy loads.

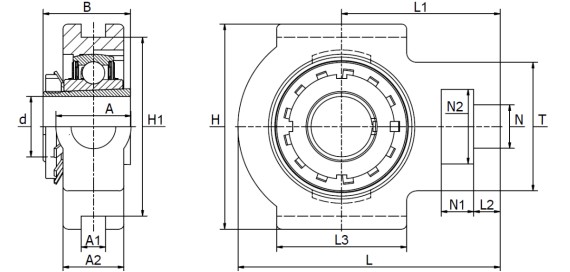

Technical Specifications:

• Shaft Diameter (d): 25 mm
• Width of Inner Ring (Bi): 38 mm
• Overall Height: 102 mm
• Overall Length: 113 mm
• A: 37 mm
• A2: 28 mm
• L1: 70 mm
• L3: 57 mm
• Housing Type: Take-Up

This ball bearing unit is designed for easy installation and operation in various mechanical and industrial systems. Its take-up housing ensures adaptability and flexibility, providing secure mounting while maintaining smooth operation.
