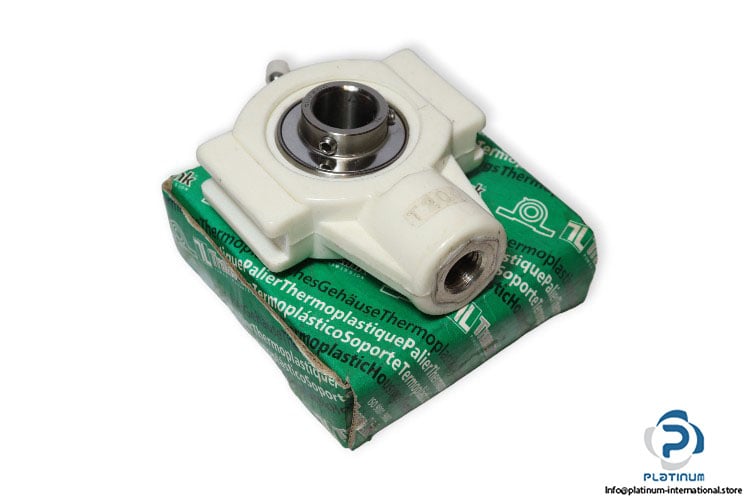

Translink UCT204 Plastic Take UP Ball Bearing Unit
Manufacture: Translink Type: Plastic take up ball bearing unit Model: UCT204 Housing No.: T204 Bearing No.: SUC204
Manufacture: Translink
Type: Plastic take up ball bearing unit
Model: UCT204

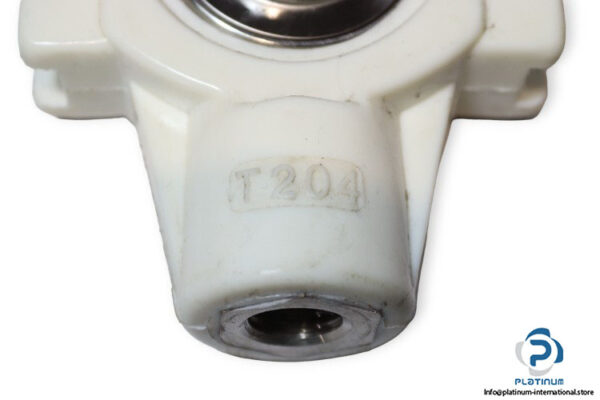

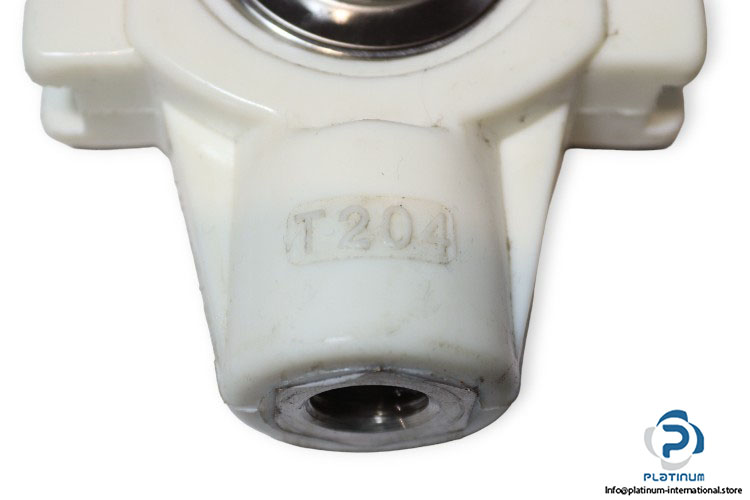

Housing No.: T204

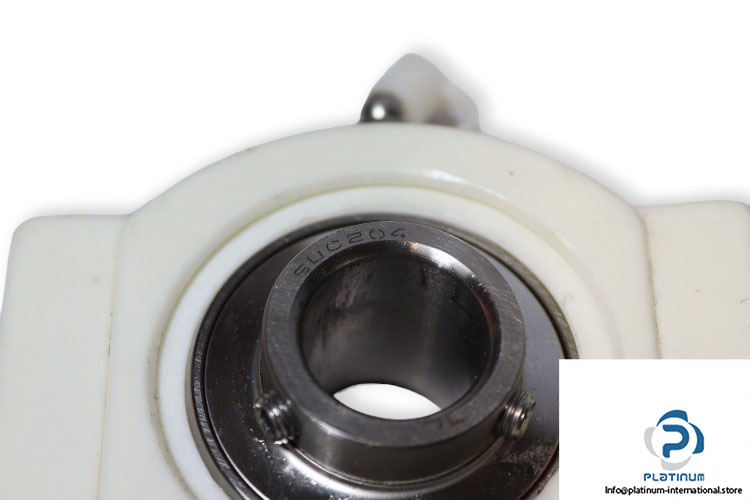

Bearing No.: SUC204
Shaft diameter: 20 mm

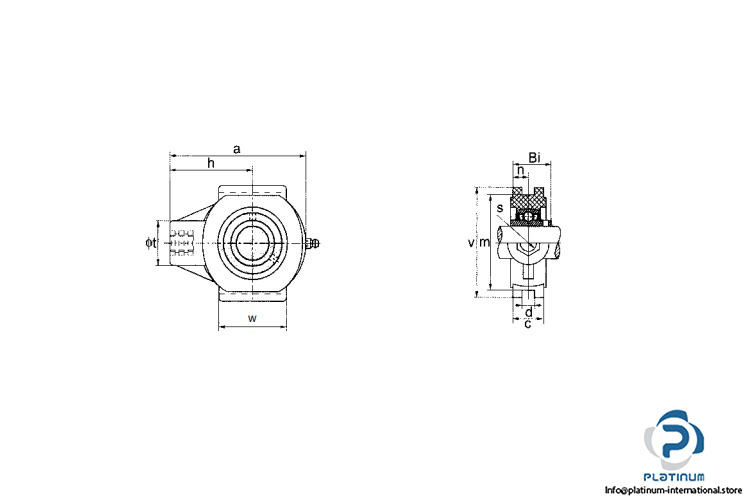

Housing length a: 99 mm
C: 27.5 mm
Width of location slot d: 12 mm
Distance from attachment end face to center line of spherical seat diameter h: 64 mm
Distance between location slots m: 76 mm
Housing height / width t: 36 mm
Housing length, width or diameter v: 88 mm
Length of guidance slot/face w: 47 mm
Width of Inner Ring Bi: 31 mm
Distance front side/bearing centre n: 12.7 mm
Housing type: Take-up
Housing Color: White
Material, housing: Plastic
Material, bearing: Stainless Steel
