Wago 750-402 4-CHANNEL Digital Input

In stock2 unitsReady to ship

30,00$

Digital Input Module

WAGO 750-402 4-channel digital input with 24 V DC signal processing, 5 V system supply, 500 VAC isolation, IP20 protection, and explosion-proof design for industrial automation.

Manufacturer
WAGO
SKU
763031
Category
PLC Modules
Condition
New
Used In stock
This product is also available used
View Used Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

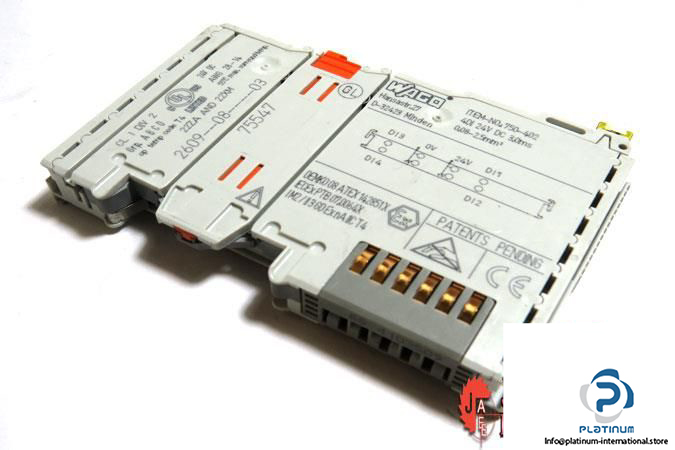

WAGO 750-402 4-Channel Digital Input

The WAGO 750-402 is a compact 4-channel digital input module designed for reliable signal processing in industrial automation systems. With robust protection, explosion-proof housing, and high switching performance, it ensures accurate operation under demanding conditions.

Manufacturer: WAGO

Type: 4-Channel Digital Input

Model: 750-402

REF NO: 2609 08 03 / 75547

Number of Digital Inputs4
System Supply VoltageDC 5 V; via data contacts
Current Consumption, System Supply (5 V)7.5 mA
Type of SignalVoltage (DC24 V)
Sensor Supply Voltage24 V DC
Voltage Range for Signal (0)-3 / +5 VDC
Voltage Range for Signal (1)15 / +30 VDC
Input CharacteristicHigh-side switching
Input Filter3 ms
Number of Incoming Power Jumper Contacts2
Number of Outgoing Power Jumper Contacts2
Current Carrying Capacity (Power Jumper Contacts)10 A
Isolation Field-System500 VAC (1 min)
Operating Temperature0 / 55 °C
ProtectionIP20
Dimensions12 x 100 x 70 mm
Housing MaterialPolycarbonate; Polyamide 6.6
Explosion ProofYes

You May Also Need

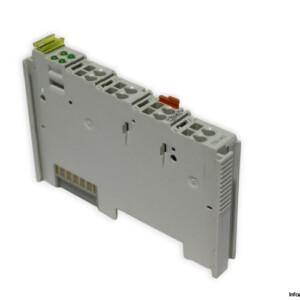

Wago 750-402 4-CHANNEL Digital Input
