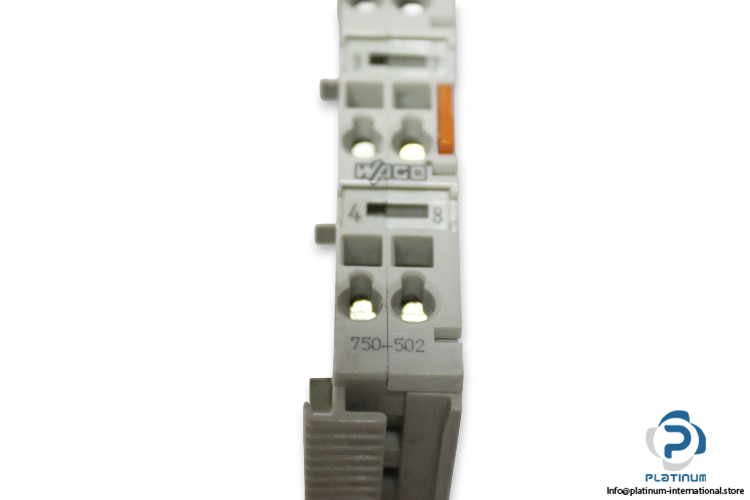

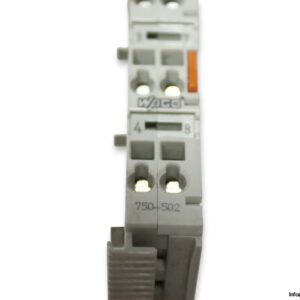

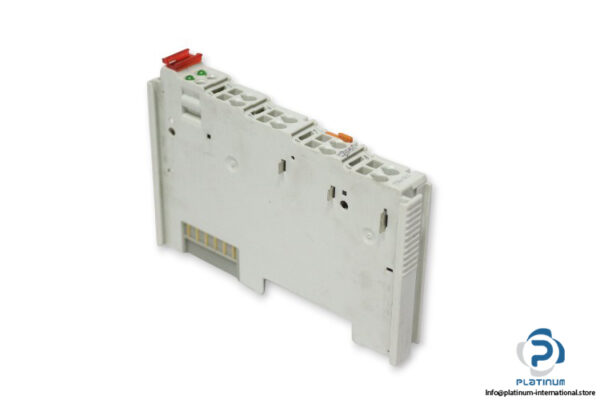

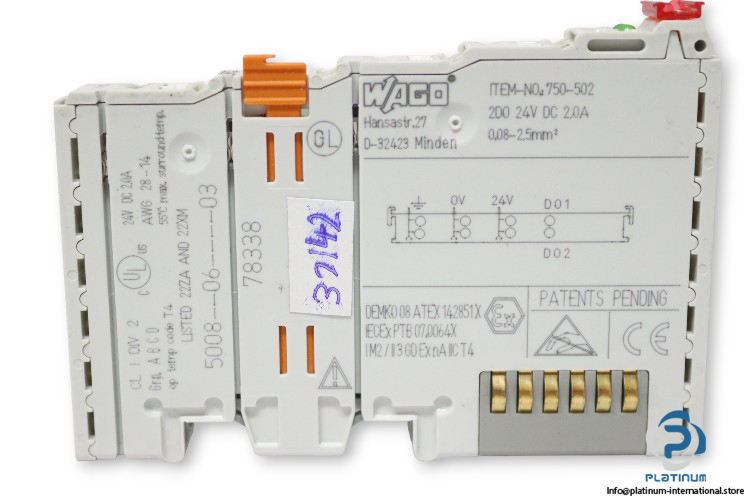

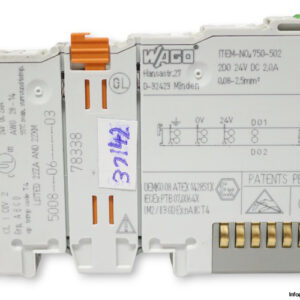

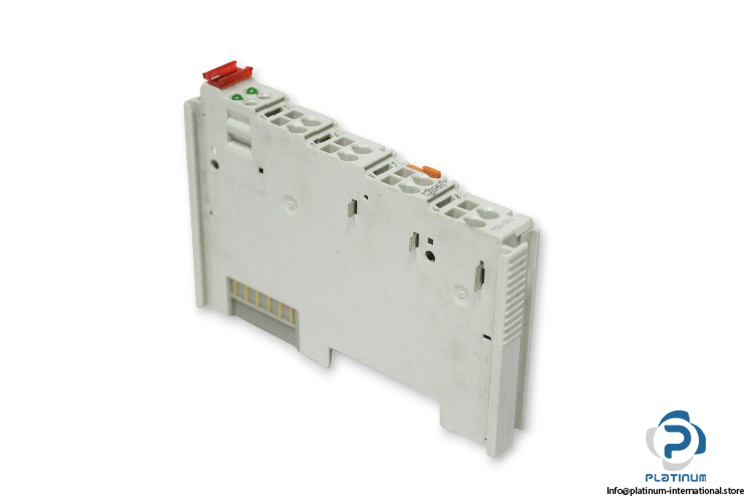

Wago 750-502 2-CHANNEL Digital Output

In stock1 unitReady to ship

2-Channel Digital Output Module

The WAGO 750-502 provides two 24 V DC digital outputs with short-circuit protection, 2.5 kHz switching frequency, and a compact IP20 housing for automation systems.

Manufacturer
WAGO
SKU
1084159
Category
PLC Modules
Condition
New
Used In stock
This product is also available used
View Used Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

WAGO 750-502 2-Channel Digital Output Module

The WAGO 750-502 is a reliable 2-channel digital output module designed for precise switching tasks in automation systems. It provides stable 24 V DC output signals, short-circuit protection, and high switching frequency, making it ideal for industrial control applications.

Manufacturer: WAGO

Type: 2-Channel Digital Output

Model: 750-502

Number of Digital Outputs2
Total Number of Channels (Module)2
Signal TypeDigital
Signal24 V DC
Actuator Connection2 x (2-wire, 3-wire, 4-wire)
Output Current2 A per channel, short-circuit protected
Switching Frequencymaximum 2.5 kHz
System Supply Voltage5 V DC via data contact
Short-Circuit Limitation (typical)PWM 35 A
Isolation500 V
Inductive Load Switch-Off Energy Dissipation (maximum)0.14 J
Output Data Width (Internal)maximum 2 bit
Incoming Power Jumper Contacts3
Outgoing Power Jumper Contacts3
Current Carrying Capacity (Power Jumper Contacts)10 A
Supply Voltage (System)5 V DC via data contacts
Current Consumption (5 V System Supply)3.5 mA
Operating Temperature0 to 55 degree Celsius
Housing MaterialPolycarbonate, Polyamide 6.6
ProtectionIP20
Dimensions100 x 70 x 62.6 millimeters
Operating Altitude0 to 2000 meters
