Wilo TMW32/11HD/C Drain Pump
New
In stock1 unitReady to ship

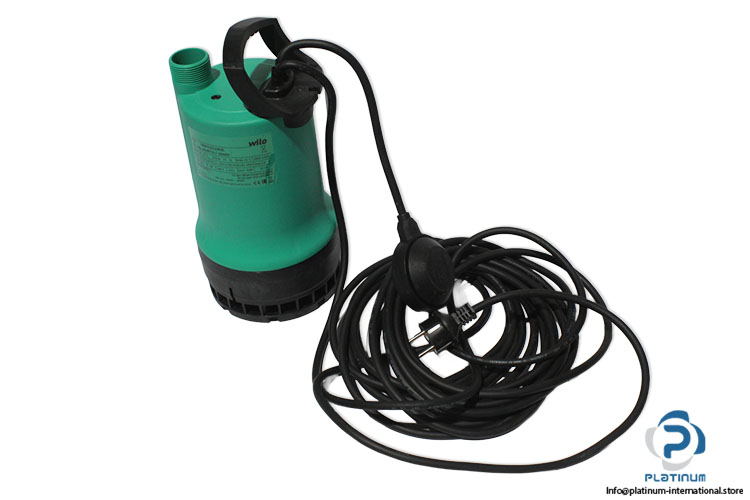

Drain Pump The WILO TMW32/11HD/C is a submersible drain pump designed for efficient wastewater and drainage applications. It features a 0.55 kW motor, up to 16 m³/h flow rate, 10 m delivery head, and IP68 protection for dependable operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

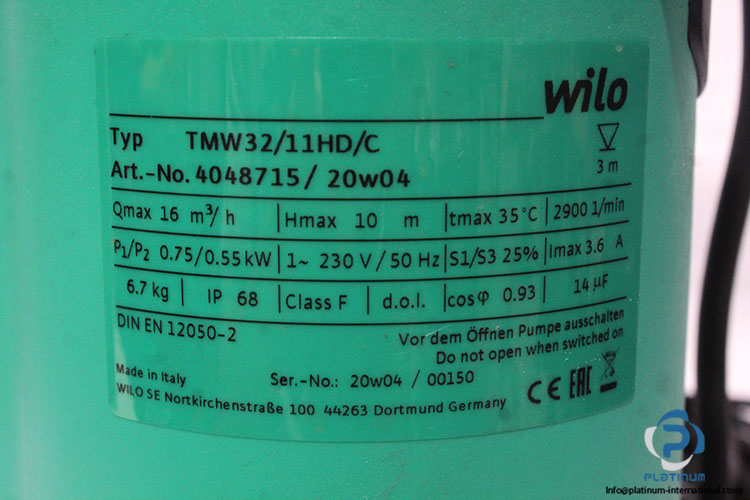

| Art .- No. | 4048715/ 20w04 |
| ref N | 4016322499541 |
| Ser No . | 20w04 / 00150 |
| Max. immersion depth | 3 m |
| Max Delivery Head | 10 m |
| Max Flow Rate | 16 m³/h |
| Mains connection | 230 V, 50 Hz |
| Voltage tolerance | ±10 % |
| Power factor cos f100 | 0.93 |
| Rated power P2 | 0.55 kW |
| Power consumption P1 max | 750 W |
| Rated current IN | 3.6 A |
| Rated speed n | 2900 1/min |
| Standard | DIN EN 12050-2 |
| Port size | G 11/4 |
| Insulation class | F |
| Protection class | IP68 |
| Operating mode (immersed) | S1 |
| Operating mode (non-immersed) | S3-25% |
| Connection | cable |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100535 |
| Weight | 7,66 |
