12X5R Ball Screw
Usado
Em estoque2 unidadesPronto para envio

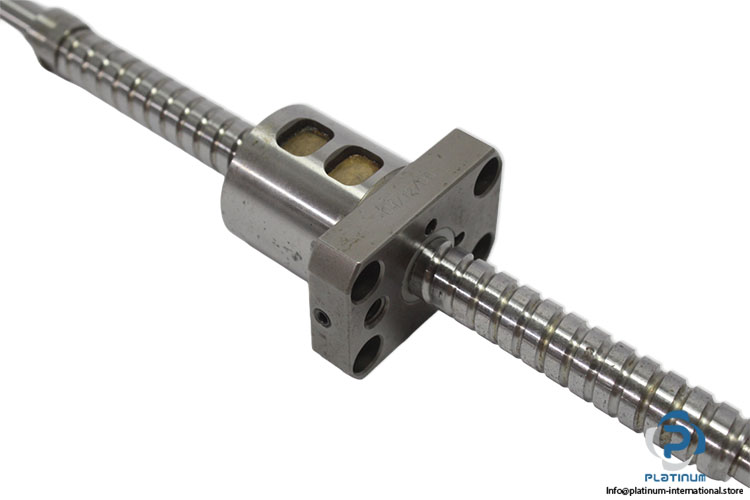

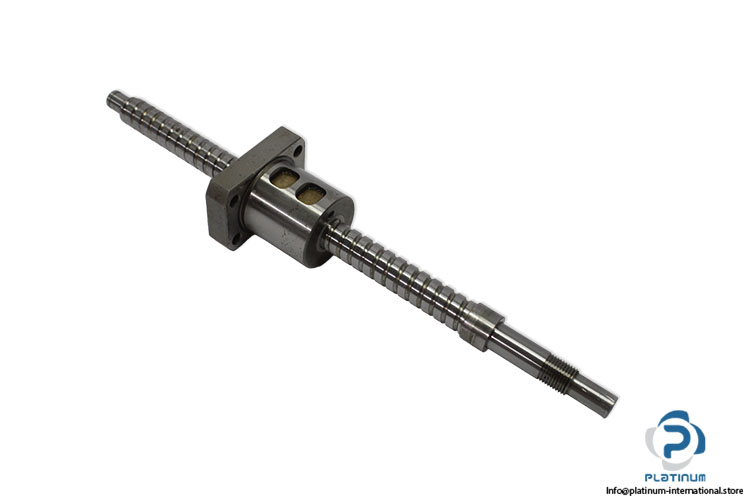

Ball Screw Precision 12X5R ball screw featuring a 12 mm nominal diameter, 5 mm lead, right-hand thread, and compact flange nut design for linear motion and industrial automation applications.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Size | 12X5R |
| Nominal Diameter | 12 mm |
| Lead P | 5 |
| Number of starts | 1 |
| Direction of Lead | Right-Hand Thread |
| Nut outer diameter | 30 mm |
| Flange diameter | 50 mm |
| Flange thickness | 10 mm |
| Cutting Flange Width | 32 mm |
| Nut length | 40 mm |
| Threaded length | 165 mm |
| Total screw length | 230 mm |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100117 |
| Weight | 0,39 |
