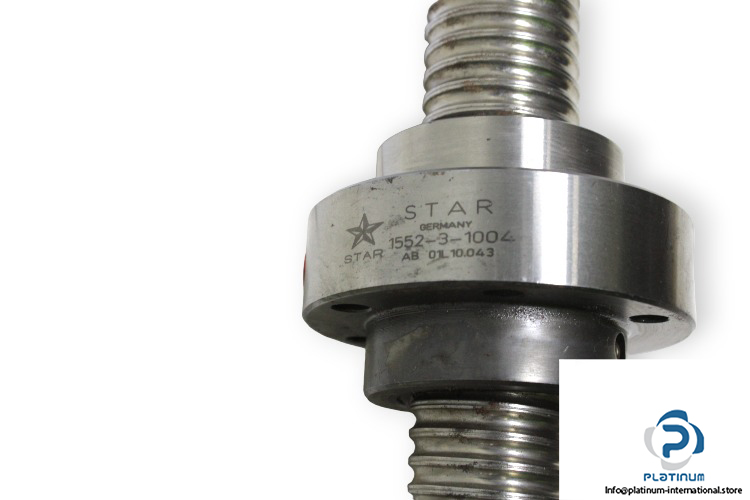

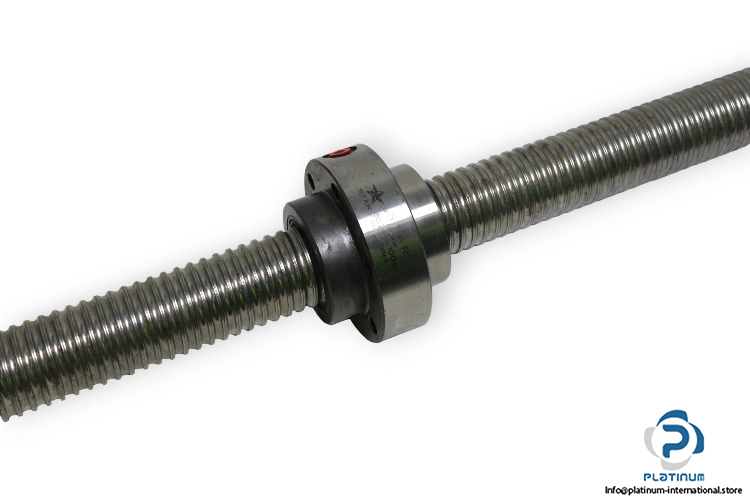

Rexroth Star 1552-3-1004 Adjustable Single NUT SEM-E-S

Manufacturer: REXROTH STAR
Type:  Adjustable-preload single nut SEM-E-S with left-hand lead
MNR: R155231004

Size: 32 x 5 L x 3.5 – 4
Nominal Diameter d₀: 32 mm
Ball Diameter D_W: 3.5 mm
Number of ball track turns i: 4
Lead P: 5 mm
Direction of Lead: Left-Hand Thread
Dynamic Load Rating C: 21600 N
Static Load Rating C₀: 40000 N
Linear speed V_max: 23 m/min

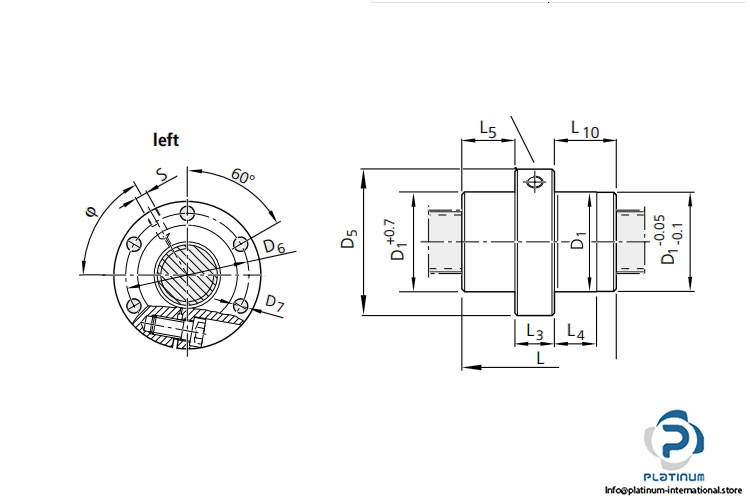

Dimensions:
D₁: 48 mm
D₅: 73 mm
L: 48 mm
L₃: 20 mm
Screw Path length: 1360 mm
Screw Total length:  1480 mm
