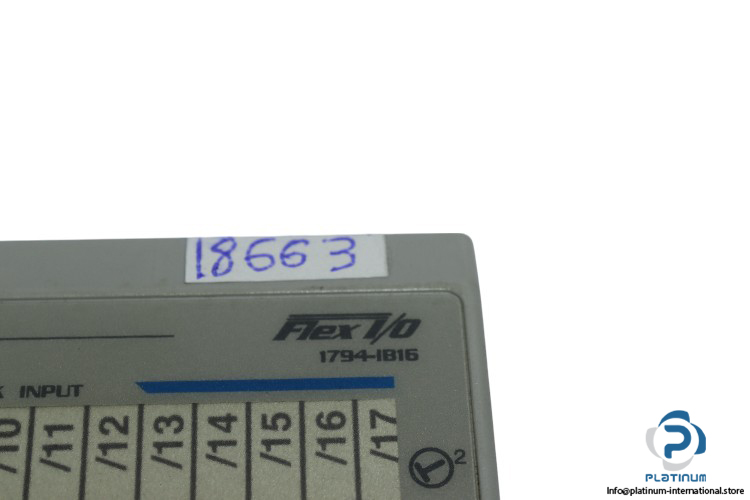

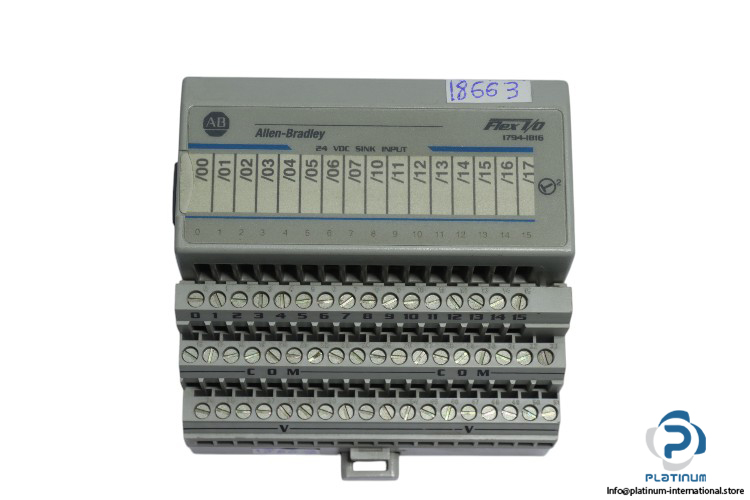

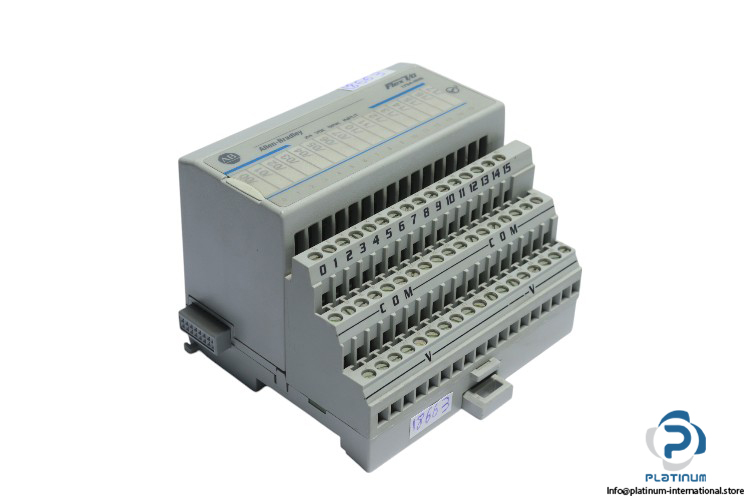

Allen-Bradley 1794-IB16 Digital Input Module

Allen-Bradley 1794-IB16 Digital Input Module

The Allen-Bradley 1794-IB16 Digital Input Module is designed for use in industrial control systems requiring high-performance digital input capabilities. With 16 current-sinking inputs, this module supports reliable and precise input signal processing. It features an on-state voltage range of 10 to 31.2V DC and an on-state current range of 2 to 12.0 mA, providing flexibility in signal detection. The off-state voltage and current limits are 5.0V DC and 1.5 mA, respectively. This module also provides isolation voltage of 50V, ensuring protection from electrical surges and faults. It has a maximum power dissipation of 6.1 W at 31.2V DC, and is designed for use in environments with operating temperatures ranging from -20 to +55°C.

Manufacturer: Allen-Bradley

Type: Digital Input Module

Model: FLEX™ I/O 1794-IB16

This module is ideal for use in industrial control systems, providing reliable, high-speed digital inputs for a variety of applications requiring accurate data collection and processing.
