Belden RKC 8/9 Sensor Actuator Connector
Conector Atuador Sensor BELDEN RKC8/9 M12 conector fêmea de campo com 8 pinos, codificação A, conexão de terminal de parafuso, proteção IP65/IP67 e classificação de 30 V AC/DC para aplicações de automação industrial.

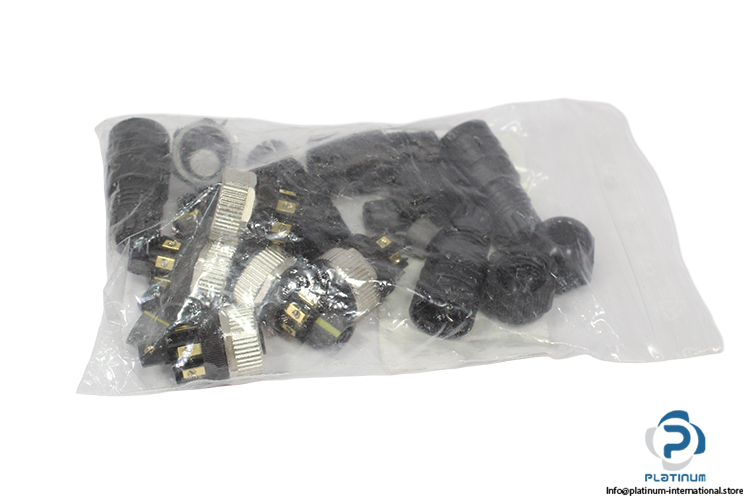

BELDEN RKC8/9 Sensor Actuator Connector

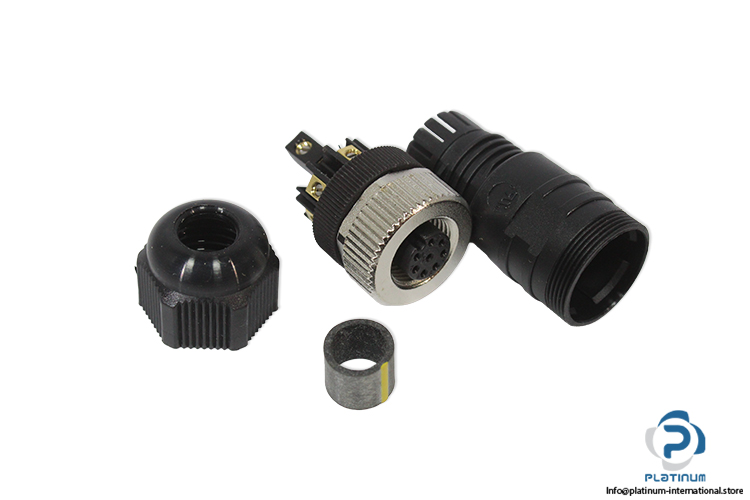

The BELDEN RKC8/9 sensor actuator connector, part of the Lumberg Automation / Hirschmann product range, is a field attachable M12 standard connector designed for reliable signal and power transmission in industrial automation systems. It provides secure coupling, high protection ratings, and compliance with international standards for demanding environments.
Manufacturer: BELDEN (Lumberg Automation / Hirschmann)
Type: Sensor Actuator Connector

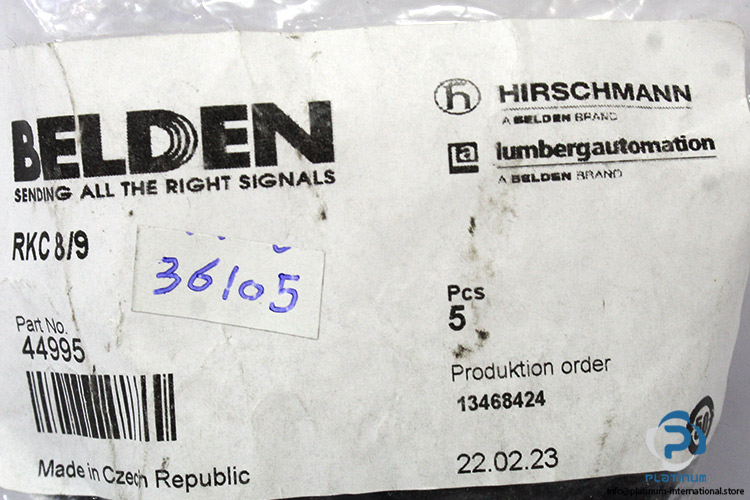

Model: RKC8/9
Part No.: 44995
Code: 13468424
Product Classification
Product Family: Sensor / Actuator Connectors
Side 1 Product Sub Family: M12 Standard
Connector Type: Field Attachable
Side 1 Type of Contact / Gender: Female
Connector Design: Straight
Number of Pins: 8
Coding, Side 1: A
Attachment Type: Coupling Nut
Type of Connection: Screw Terminal
Electrical Specifications
Voltage Rating: 30 V
Rated Impulse Voltage: 0.8 kV
Operating Voltage: 30 V AC/DC
Current Rating: 2 A
Contact Resistance: ‰¤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ‰¤ 100
Mechanical Specifications
Maximum Wire Cross Section: max. 0.50 mm²
Cable Gland: PG9
Strain-Relief: Clamping Cage
Suitable Cables: Ø6 “ Ø8 mm
Ambient Temperature (Operation): -25°C to +90°C
Operating Temperature (UL): max. 65 °C
Protection Degree / IP Rating: IP65, IP67
Standards & Materials
Design Standard: IEC 61076-2-101
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material: CuZn
Side 1 Contact Plating: Cu/Au
Contact Bearer Material: PA-GF
