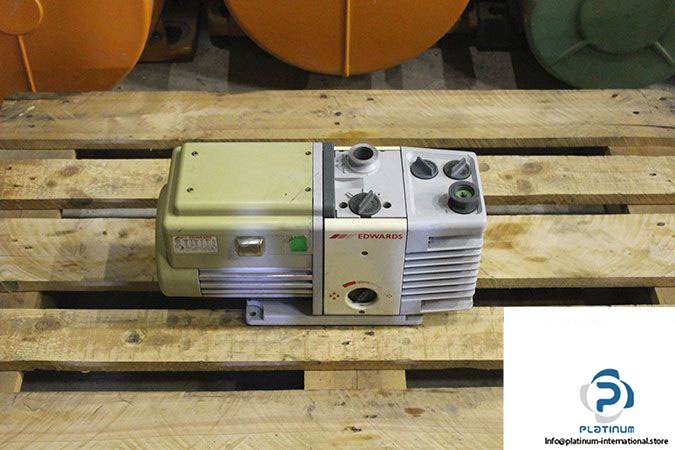

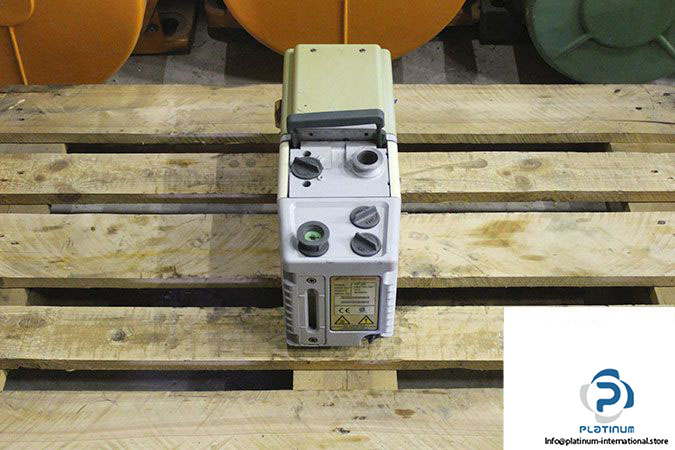

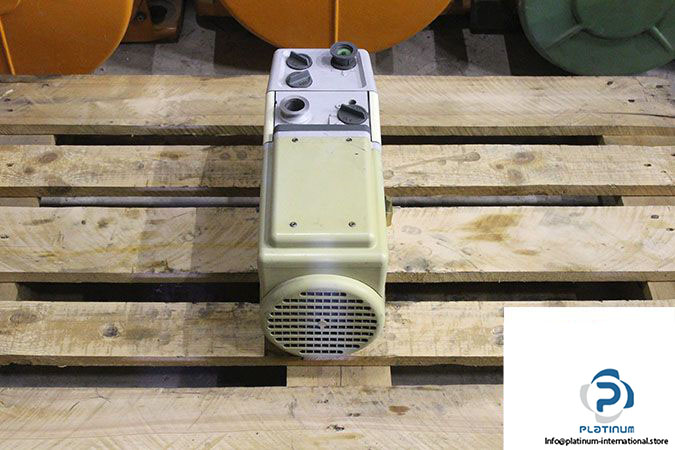

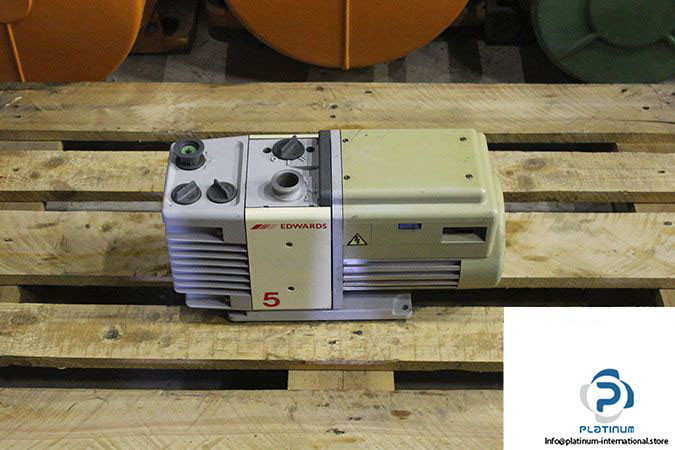

Edwards RV5 Vacuum Pump
Manufacturer: Edwards
Type: Vacuum Pump

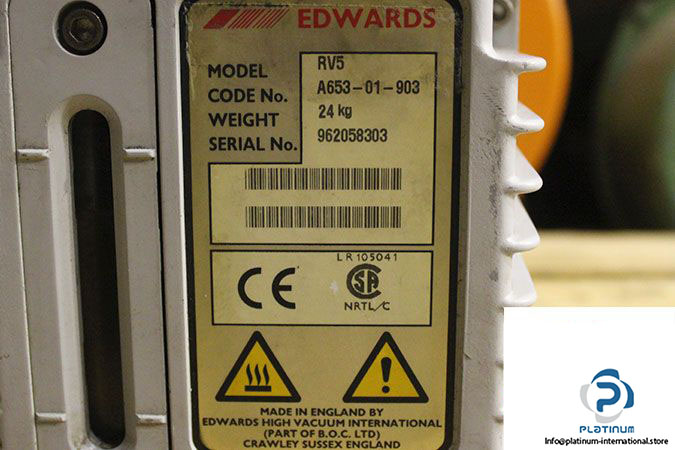

Model: RV5
Code No.: A653-01-903
Stage: 2
Max. Displacement [m3/h]: 5.8/7.0
Max. Pumping Speed [m3/h]: 5.1/6.2

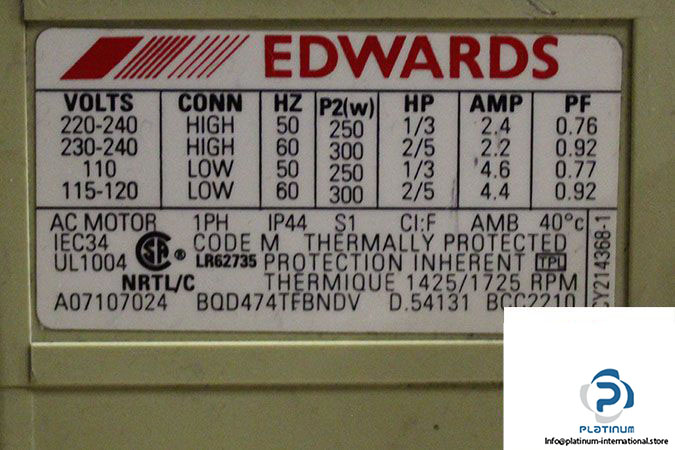

Rated Voltage/ Conn. [V]: 220-240/230-240 High
Horsepower [Hp]: 1/3 …. 2/5
Power Factor [%]: 0.76/0.92
Rated Power [W]: 250/300
Rated Current [A]: 2.2/2.4
Rated Voltage/ Conn. [V]: 110/115-120 Low
Horsepower [Hp]: 1/3 …. 2/5
Power Factor [%]: 0.77/0.92
Rated Power [W]: 250/300
Rated Current [A]: 4.6/4.4
Rated Speed [rpm]: 1425/1725
Frequency [Hz]: 50/60
Ambient Temperature [°C]: 40
Duty: S1 Cont.
Insulation Class: F
Weight [kg]: 23.2
