Endress+Hauser EC 17 Z Electronic Insert

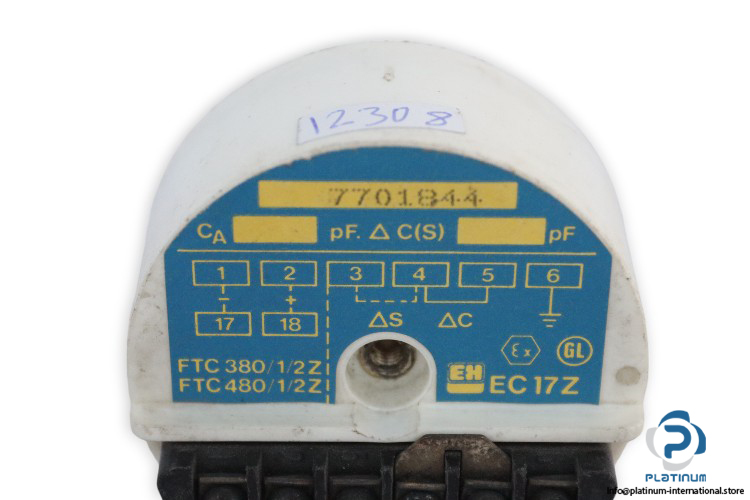

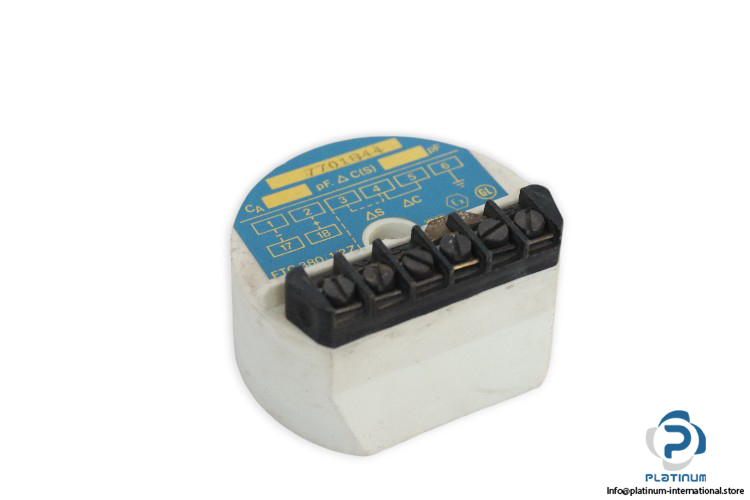

Endress+Hauser Electronic Insert (Model: EC17Z)

The Endress+Hauser Electronic Insert (Model: EC17Z) is designed for use with the FTC 380/1/2Z and FTC 480/1/2Z. It features approvals for use in explosion hazardous areas (EEx ia, FM IS, CSA IS) and provides reliable signal transmission over a wide temperature range. It connects to devices like the Nivotester, Silometer, or Prolevel via standard screened installation cable.

• Manufacturer: Endress+Hauser
• Type: Electronic Insert
• Model: EC17Z
• Part No.: 7701844
• CAN Used with: FTC 380/1/2Z, FTC 480/1/2Z
• Approval for Explosion Hazardous Areas: EEx ia, FM IS, CSA IS
• Connection: Nivotester, Silometer, Prolevel over standard screened installation cable
• Temperature Range: Wide temperature range

Electrical Information

• Supply Voltage: approx. 10.5 / 12.2 V
• Basic Current: approx. 4 / 10 mA
• Operating Frequency: approx. 300 kHz
• Housing: Plastic, potted electronics
• Protection Type: Electronics IP 55, terminals IP 00
• Signal Transmission: Pulse-frequency-modulation (PFM)
• Pulse Current: approx. 10 mA / 18 mA
• Pulse Width: approx. 200 µs
• Transmission Frequency: 185 / 116 Hz, equivalent to 20 pF / 350 pF
• Permissible Ambient Temperature: -25 / +100°C
