Heidenhain ROD 1020 3600 01-03 Incremental Rotary Encoder

Name: HEIDENHAIN ROD 1020 3600 01-03 INCREMENTAL ROTARY ENCODER
Brand: HEIDENHAIN
SKU: 986689
Availability: LimitedAvailability

heidenhain-ROD-1020-3600-01-incremental-rotary-encoder

heidenhain-rod-1020-3600-01-incremental-rotary-encoder-2

heidenhain-rod-1020-3600-01-incremental-rotary-encoder-1

Usado

Em estoque1 unidadePronto para envio

ENCODER ROTATIVO INCREMENTAL Heidenhain ROD 1020 3600 01-03 é um encoder rotativo de alta resolução com 3600 linhas, eixo sólido de 4 mm, saída TTL e alimentação de 5 V. Projetado para aplicações de controle de movimento de precisão.

Fabricante

HEIDENHAIN

SKU

986689

Categoria

Rotary Encoders

Condição

Usado

01-03 1020 3600 5V Control Encoder Heidenhain Incremental Industrial Line Motion Precision ROD Rotary Sensor shaft Signal TTL

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

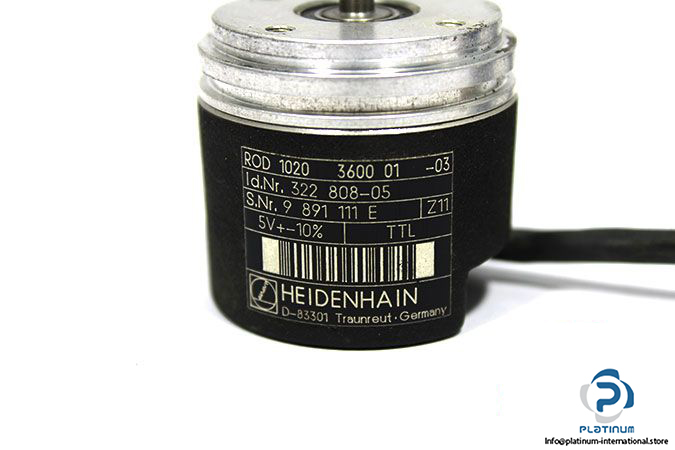

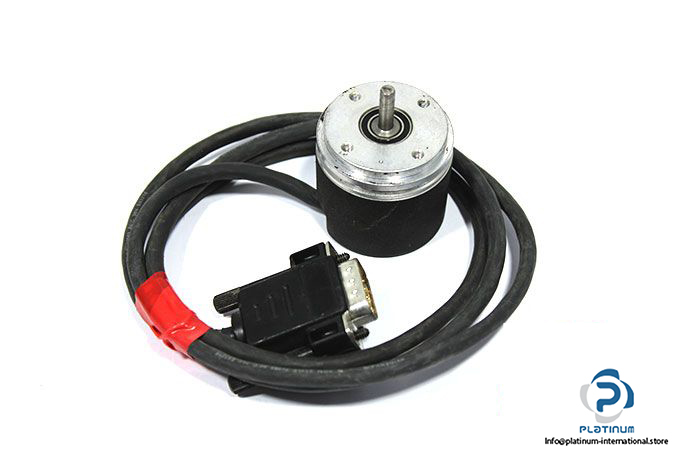

HEIDENHAIN ROD 1020 3600 01-03 INCREMENTAL ROTARY ENCODER

This high-precision incremental rotary encoder from Heidenhain is engineered for reliability and accuracy in motion control systems. Ideal for demanding industrial environments, the ROD 1020 provides stable TTL output and easy installation via its synchro flange.

Manufacturer: Heidenhain

Type: Incremental Rotary Encoder

Model: ROD 1020 3600 01-03

ID Number: 322808-05

Serial Number: 9 891 111 E

Shaft Size	4 mm
Shaft Type	Solid shaft, length 12.5 mm
Line Count	3600
Output Signal	TTL

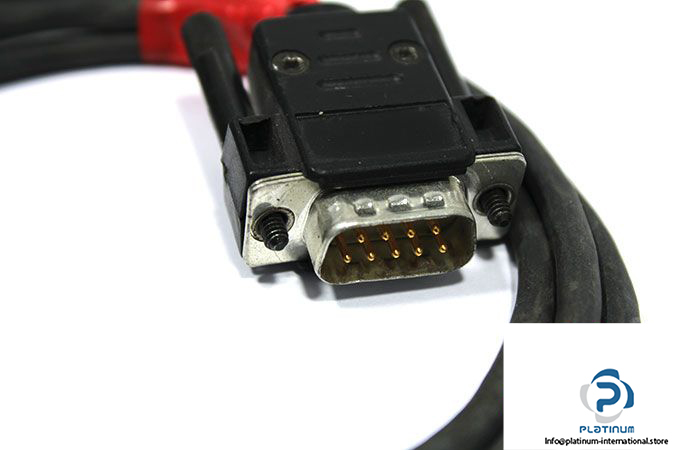

Electrical Connection	Cable; 95 cm length, D294999, male, 9-pin
Supply Voltage	5 V (±10%)
Flange Version	Synchro flange DIA 36.5 mm, centering collar 33 mm, bolt circle DIA 26 mm, 4 x M3
