Motion Control Rotary Encoders

Heidenhain ROD 426.011-400 Incremental Encoder

Name: HEIDENHAIN ROD 426.011-400 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966126
Price: 250.00 USD
Availability: InStock





Usado

Em estoque1 unidadePronto para envio

250,00$

ENCODER INCREMENTAL HEIDENHAIN ROD 426.011-400 encoder incremental que oferece resolução de 400 PPR, saída TTL e operação de até 16000 rpm. Apresenta eixo sólido de 6 mm, flange síncrona e proteção IP67/IP64 para ambientes industriais.

Fabricante

HEIDENHAIN

SKU

966126

Categoria

Rotary Encoders

Condição

Usado

400 426.011-400 Control Encoder Flange Heidenhain High-Speed Incremental IP67 Motion PPR ROD RS422 shaft Solid Synchro TTL

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

HEIDENHAIN ROD 426.011-400 INCREMENTAL ENCODER

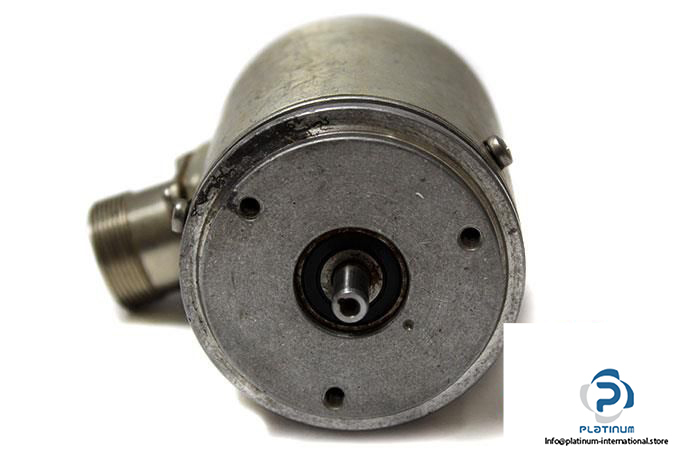

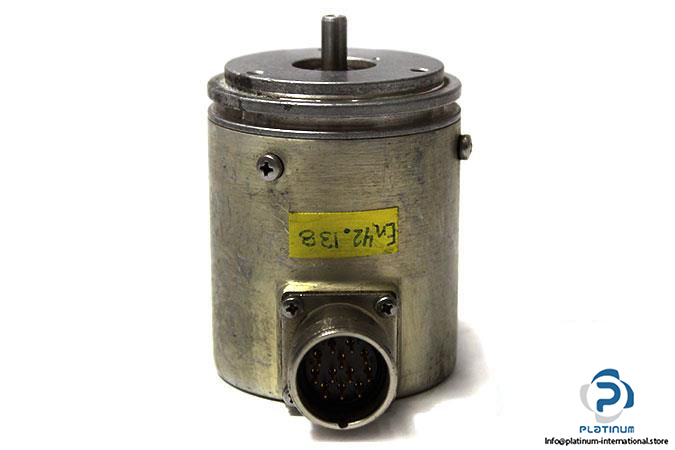

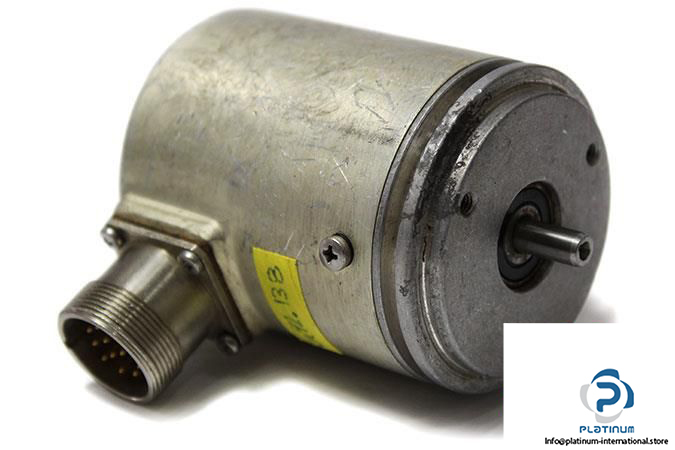

The HEIDENHAIN ROD 426.011-400 is a high-precision incremental encoder built to support high-speed, high-resolution industrial motion control systems. Engineered with a robust solid shaft and synchro flange, this encoder offers outstanding accuracy and environmental resistance.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

Model: ROD 426.011-400

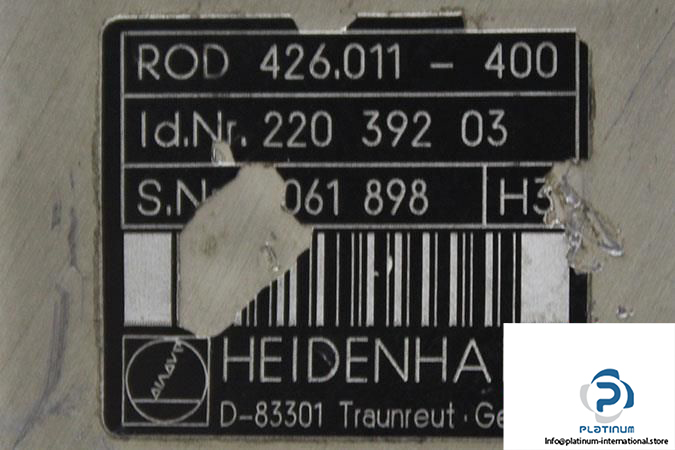

ID No.: 220 392 03

Flange Design	Synchro flange
Shaft Design	Solid shaft
Shaft Diameter	6 mm
Voltage Supply	5 VDC
Resolution	400 Pulse per Revolution (PPR)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max Speed	16000 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at housing, IP64 at shaft inlet (IP66 upon request)
Max Temperature	100 °C
