Hiwin MGN12CC Linear Guideway Block
Novo
Em estoque12 unidadesPronto para envio
34,51$
Bloco guia linear compacto e durável Hiwin com tamanho de trilho de 12 mm, altas classificações de carga e geometria precisa para aplicações exigentes de movimento linear em automação e máquinas CNC.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

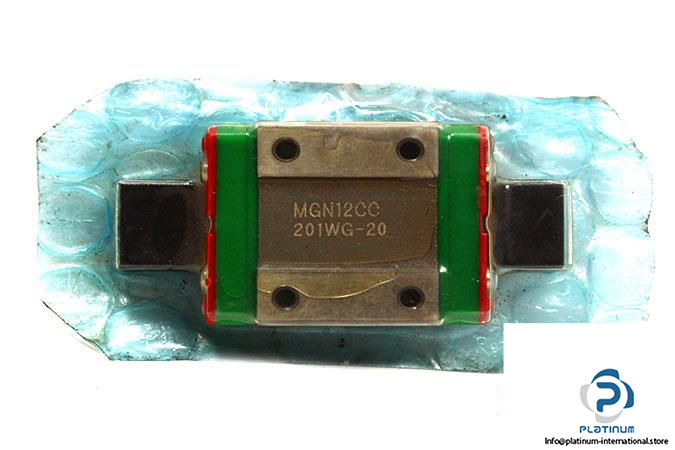

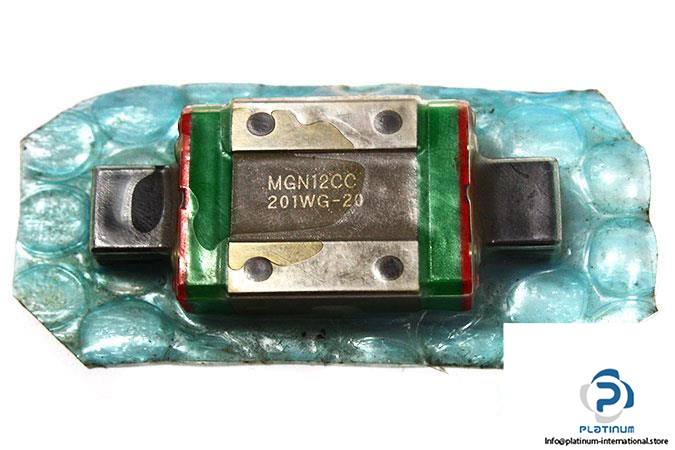

HIWIN MGN12 CC 201WG-20 LINEAR GUIDEWAY BLOCK
This precision linear guideway block from Hiwin is designed for smooth and stable linear motion in compact machinery. Built to handle demanding load conditions with a high dynamic and static load capacity, it ensures optimal performance in automation, CNC, and motion control applications.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGN12 CC 201WG-20
| Size | 12 mm |
| Block Type | Standard |
| System Height (H) | 13 mm |
| Block Height (H-H1) | 10 mm |
| Block Width (W) | 27 mm |
| Block Length (L) | 34.7 mm |
| Distances Between Holes | 20, 15 mm |
| Mounting Bolt for Rail | M3 x 8 |
| Basic Dynamic Load Rating (C) | 2.84 kN |
| Basic Static Load Rating (C0) | 3.92 kN |
| Rail Width | 12 mm |
| Rail Height | 8 mm |
