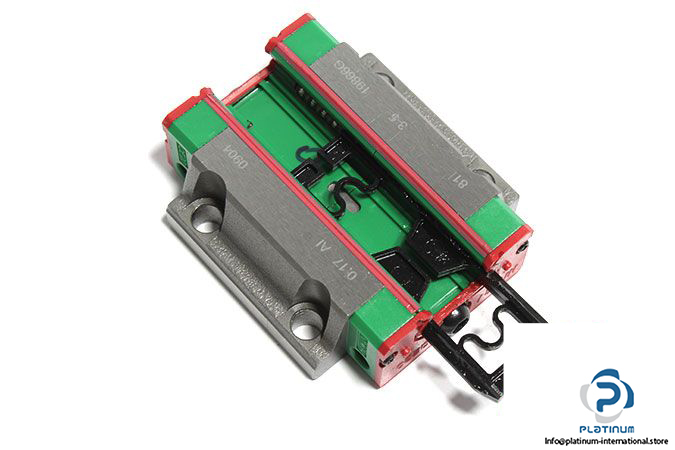

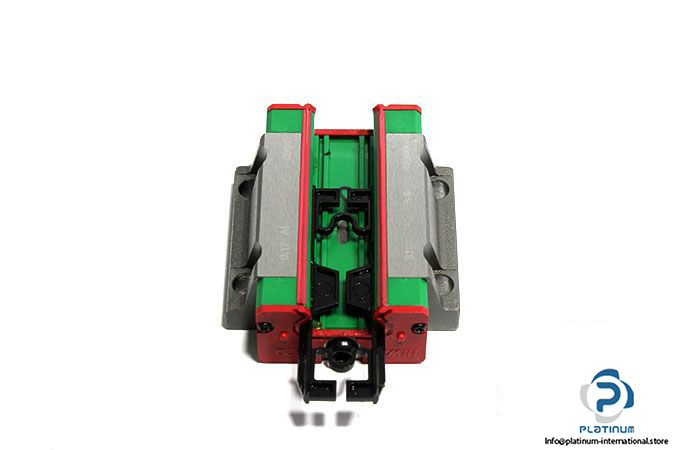

Hiwin QEW20CA Linear Guideway Block
Novo
Em estoque16 unidadesPronto para envio
54,96$
Bloco guia linear de perfil baixo da HIWIN com tamanho de 20 mm e tecnologia SynchMotion™, otimizado para aplicações de movimento silencioso, suave e de alta carga em sistemas de automação compactos.
20AutomationBlockFlangeGuideGuidewayHeavyHiwinLinearLoadlowmmMotionProfileQEQEW20CArailSeriesSynchMotionType
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
HIWIN QEW20CA LINEAR GUIDEWAY BLOCK
The HIWIN QEW20CA is a precision-engineered low-profile linear guideway block designed for heavy-load applications. Featuring SynchMotion„¢ Technology, it ensures smooth, quiet motion with minimal friction, making it ideal for high-performance automation systems.
Manufacturer: HIWIN
Type: Linear Guideway Block
Model: QEW20CA

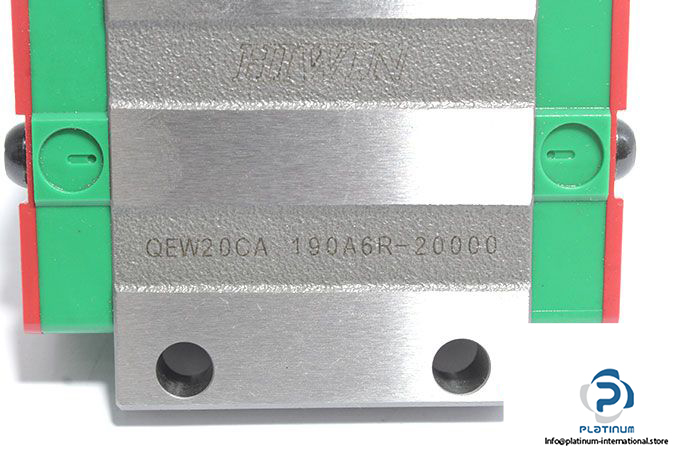

MRN: QEW20CA 190A6R-20000
Basic Load Ratings, Linear:
| Size | 20 mm |
| Total Height H | 28 mm |
| Block Width W | 59 mm |
| Block Length L | 69.1 mm |
| Block Height | 22 mm |
| Distance Between Holes | 49 mm, 32 mm |
| Dynamic Cr | 16.5 kN |
| Static C0r | 20.2 kN |
| Series | QE Series; Low Profile Linear Guideway, with SynchMotion Technology |
| Block Type | W; Flange Type |
| Load Type | C; Heavy Load |
