Hiwin RGW25HC Linear Guideway Block
Novo
Em estoque6 unidadesPronto para envio
BLOCO GUIA LINEAR Bloco guia da série RG de alta rigidez da Hiwin com tamanho de 25 mm, alta capacidade de carga e flexibilidade de montagem superior/inferior, ideal para aplicações de movimento de precisão exigentes.
25A07PB200BlockBottomFlangeGuideGuidewayHeavyHiwinIndustrialLinearLoadmmMotionMountingRGRGW25HRGW25HCRollerSeriesTopType
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

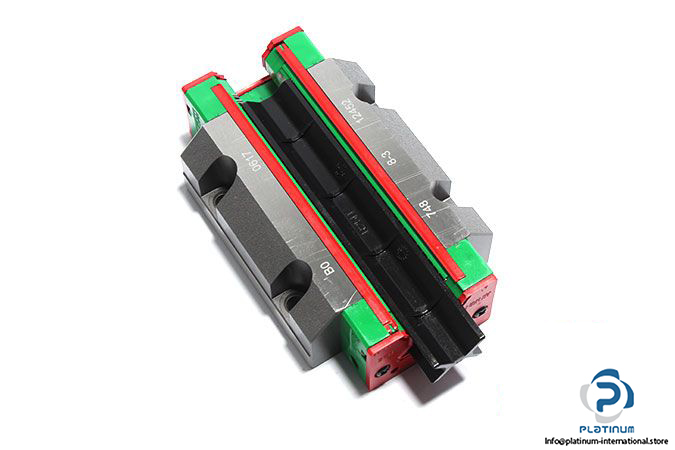

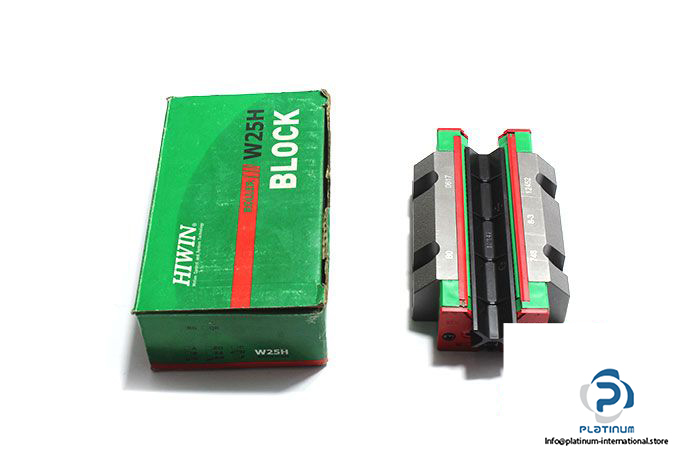

HIWIN RGW25HC LINEAR GUIDEWAY BLOCK
The Hiwin RGW25HC is a high-performance linear guideway block from the RG Series, engineered for applications requiring high rigidity and precision. Designed with a roller-bearing system and heavy-load capacity, this flange-type block is suitable for demanding motion control environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: RGW25HC

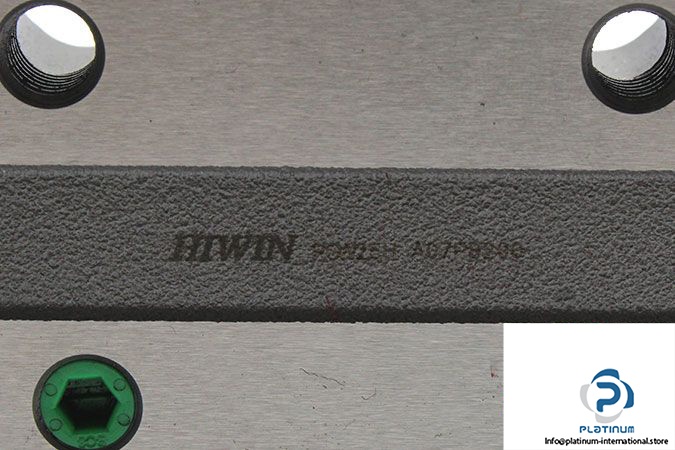

MRN: RGW25H A07PB200
Basic Load Ratings, Linear:
| Size | 25 mm |
| Total Height H | 36 mm |
| Block Width W | 70 mm |
| Block Length L | 114.4 mm |
| Block Height | 30.5 mm |
| Distances Between Holes | 57 mm, 45 mm |
| Dynamic Cr | 33.9 kN |
| Static C0r | 73.4 kN |
| Series | RG Series; High Rigidity Roller Type Linear Guideway |
| Block Type | W; Flange Type |
| Load Type | H; Super Heavy Load |
| Block Mounting Type | C; Top or Bottom |
