IFM AC 1209 AS-Interface Power Supply
Fonte de alimentação IFM AC 1209 As-Interface fornece saída estável de 29,5-31,6 V com corrente de 2,8 A, proteção IP20 e ampla faixa de voltagem, ideal para sistemas de automação industrial.

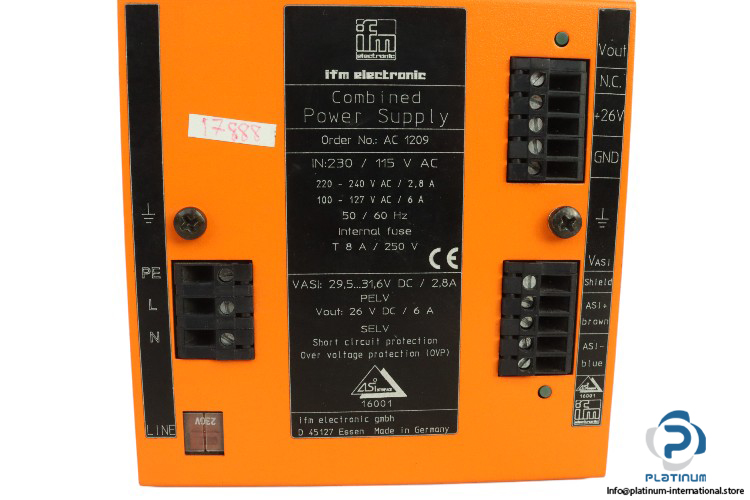

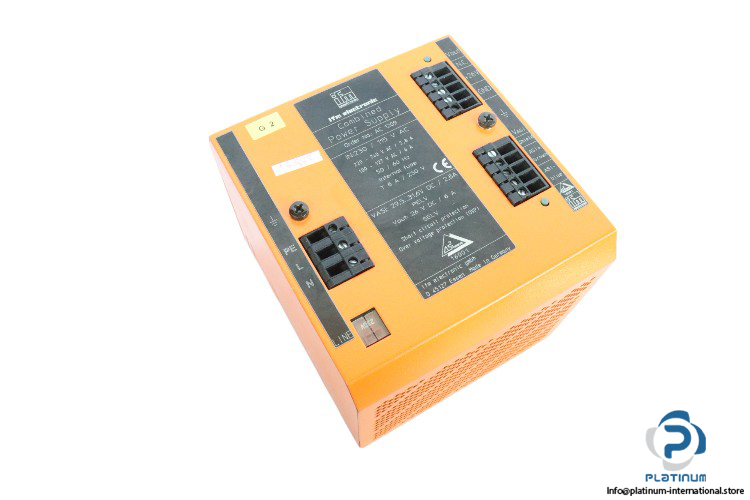

IFM AC 1209 As-Interface Power Supply
The IFM AC 1209 As-Interface Power Supply is a high-performance power supply designed to provide stable power to industrial automation systems. With a wide voltage range and reliable current output, this power supply is perfect for systems requiring a stable 29.5 to 31.6 V output for AS-i devices. Its durable aluminum housing and IP20 protection make it a robust choice for industrial applications.
- Manufacturer: IFM
- Type: As-Interface Power Supply
- Model: AC 1209
Technical Specifications:
- Nominal Voltage: 110 / 230 V AC
- Nominal Frequency AC: 47…63 Hz
- Input Voltage Range: 88…132 / 184…264 V AC
- Max. Power-On Delay Time: 350 ms
- Output Voltage Tolerance: 2%
- Output Voltage AS-i: 29.5…31.6 V
- Max. Output Current at Min. Output Voltage: 6A
- Number of Output Circuits: 1
- Output Current AS-i: 2.8 A
- Max. Residual Ripple: 50 mV
- Connection: Terminals: …2.5 mm²
- Function: 2 x LED, green
- Material: Aluminum
- Degree of Protection: IP20
- Ambient Temperature: -10…60°C
- Dimensions: 134 x 120 x 118.5 mm
The IFM AC 1209 As-Interface Power Supply ensures reliable operation with a 2% output voltage tolerance, minimal ripple, and robust protection features. Its compact size and durable aluminum housing make it suitable for various industrial environments where stability and performance are essential.
