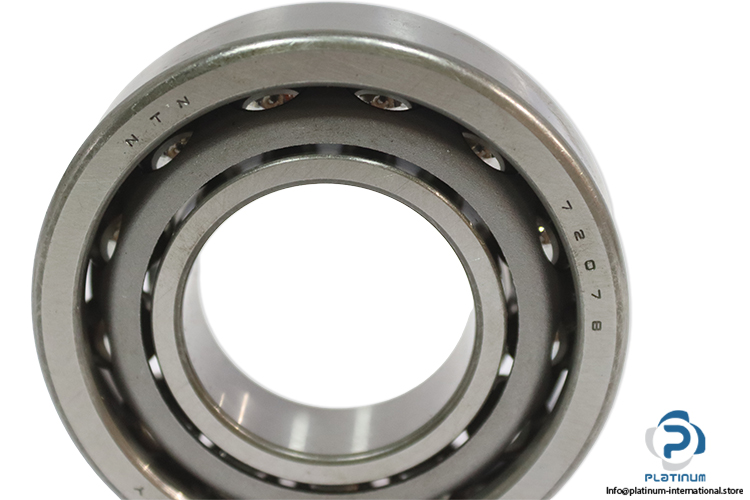

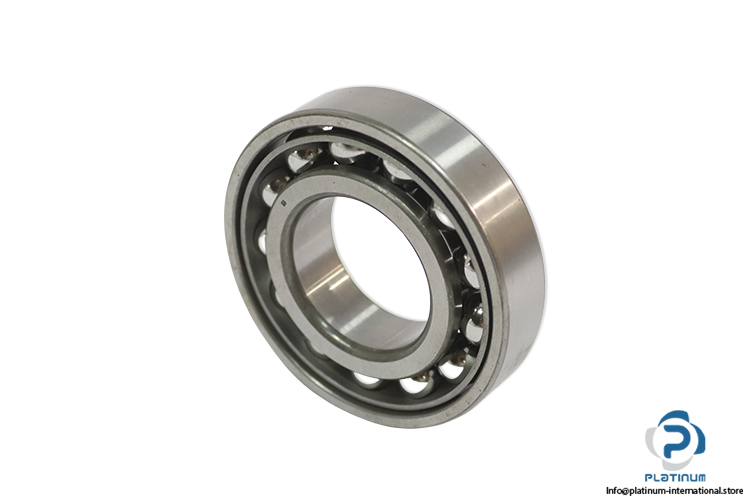

NTN 7207B Angular Contact Ball Bearing
Novo
Em estoque3 unidadesPronto para envio
Rolamento de Esferas de Contato Angular NTN 7207B par combinado de rolamentos de esferas de contato angular com ângulo de contato de 40°, alta capacidade de carga e gaiola em aço prensado para aplicações industriais.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
NTN 7207B Angular Contact Ball Bearing
The NTN 7207B is a high-performance angular contact ball bearing supplied as a matched pair, designed to support combined radial and axial loads with high precision and operational stability in industrial applications.
Manufacturer: NTN
Type: Matched Pairs Of Angular Contact Ball Bearing
Model: 7207B
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 72 mm |
| Width (B) | 17 mm |
| Contact Angle | 40° |
| Dynamic Load Rating (Cr) | 30 kN |
| Static Load Rating (C0r) | 18.4 kN |
| Fatigue Load Limit | 1.44 kN |
| Limiting Speed (Oil) | 12,000 rpm |
| Limiting Speed (Grease) | 9,300 rpm |
| Cage Material | Pressed Steel |
| Operating Temperature | -40 to 120 °C |
