Omron E3F2-DS30B4 Photoelectric Sensor
Novo
Em estoque4 unidadesPronto para envio
66,66$
Sensor fotoelétrico difuso PHOTOELECTRIC SENSOR Omron E3F2DS30B4 com distância de detecção de 300 mm, saída PNP, alimentação 10–30 V DC, proteção IP67 e fonte de luz LED infravermelha.
10“30300AutomationdcDiffuseDistanceE3F2DS30B4IndustrialinfraredIP67LEDmmOmronPhotoelectricPNPReflectiveSensingSensorV
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

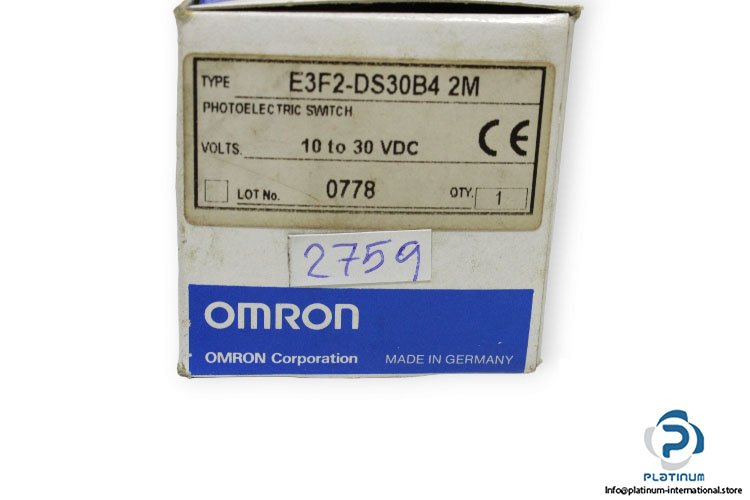

Omron E3F2DS30B4 Photoelectric Sensor (Diffuse Reflective)
The Omron E3F2DS30B4 is a compact and reliable photoelectric sensor with diffuse-reflective sensing technology. Designed for accurate object detection up to 300 mm, it offers flexible wiring options, PNP output, and IP67 protection for use in demanding industrial automation environments.
Manufacturer: Omron
Type: Photoelectric Sensor / Diffuse Reflective
Model: E3F2DS30B4
| Sensing Method | Diffuse-Reflective |
| Sensing Distance | 300 mm |
| Connection Method | Pre-wired (2 m) |
| Operating Voltage | 10 / 30 V DC |
| Current Consumption | 30 mA max |
| Operating Current | 100 mA max |
| Response Time | 2.5 ms max |
| Electrical Design | PNP |
| Control Output | Transistor (open collector), load current 100 mA max |
| Protection Degree | IP67 |
| Light Source (Wavelength) | Infrared LED (880 nm) |
| Operation Mode | Light-ON or Dark-ON selectable by wiring |
| Sensitivity Adjustment | Adjustable |
| Ambient Temperature | -25 / 55 °C |
| Housing Material (Case) | Plastic |
