Phoenix Contact PT 2,5/1P Feed-Through Terminal Block

Name: PHOENIX CONTACT PT 2,5/1P FEED-THROUGH TERMINAL BLOCK
SKU: 1095701
Availability: LimitedAvailability

phoenix-contact-pt-25-1p-feed-through-terminal-block(new)

phoenix-contact-pt-25-1p-feed-through-terminal-block(new)-1

Novo

Em estoque51 unidadesPronto para envio

Bloco de Terminal Passante PHOENIX CONTACT PT 2,5/1P bloco de terminal passante push-in com seção nominal de 2,5 mm², corrente nominal de 24 A, tensão nominal de 500 V e isolamento PA66-FR para aplicações industriais.

Fabricante

PHOENIX CONTACT

SKU

1095701

Categoria

Others

Condição

Novo

1P 2.5 24A 500V Block Contact DIN feed FR in Industrial PA66 Phoenix Pt Push rail terminal Through

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

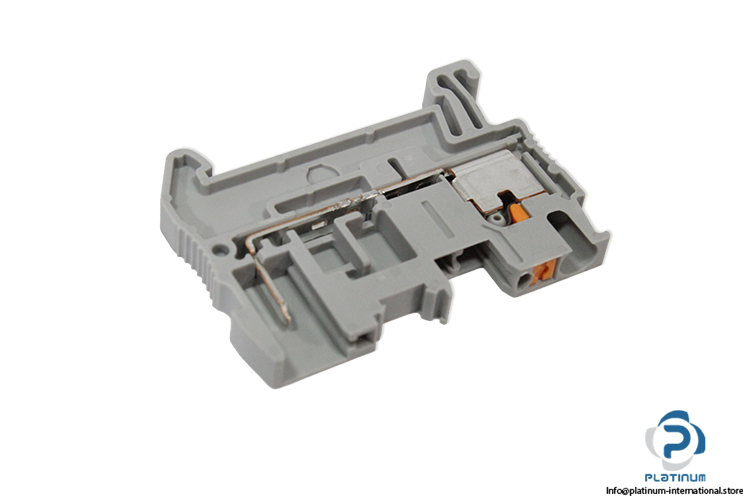

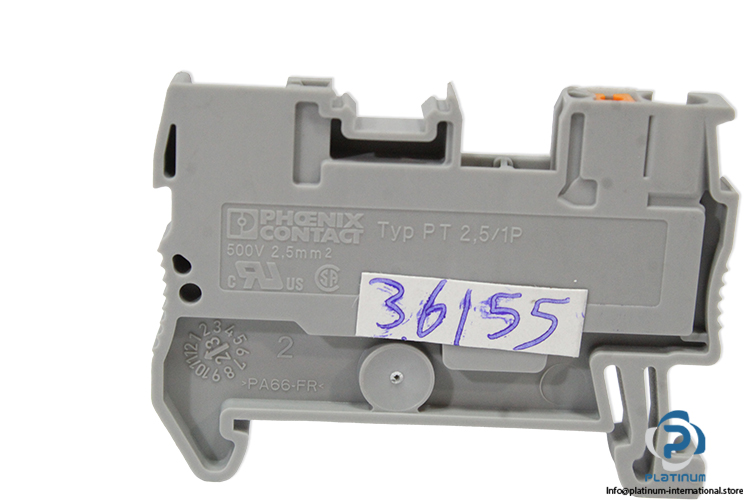

PHOENIX CONTACT PT 2,5/1P Feed-Through Terminal Block

The PHOENIX CONTACT PT 2,5/1P is a compact push-in feed-through terminal block designed for secure and efficient conductor connection in industrial electrical installations. Manufactured from PA66-FR insulating material, it ensures reliable performance in demanding environments including railway, machine building, and plant engineering applications.

Manufacturer: PHOENIX CONTACT

Type: Feed-through Terminal Block

Model: PT 2,5/1P

Code: PA66-FR

Product Family: PT

Insulation Characteristics:

Electrical Data:

Dimensions:

Area Of Application	Railway Industry, Machine Building, Plant Engineering
Number Of Connections	2
Number Of Rows	1
Potentials	1
Overvoltage Category	III
Degree Of Pollution	3
Rated Surge Voltage	6 kV
Maximum Power Dissipation For Nominal Condition	0.77 W
Nominal Cross Section	2.5 mm²
Connection Method	Push-in / Plug Connection
Stripping Length	8 mm ... 10 mm
Internal Cylindrical Gage	A3
Connection In Accordance With Standard	IEC 61984
Nominal Current	24 A
Maximum Load Current	24 A (With 4 mm² Conductor Cross-Section, Rigid)
Nominal Voltage	500 V
Width	5.2 mm
End Cover Width	2.2 mm
Height	48.6 mm
Depth	35.3 mm
Material	PA
Ambient Temperature (Operation)	-60 °C ... 100 °C
