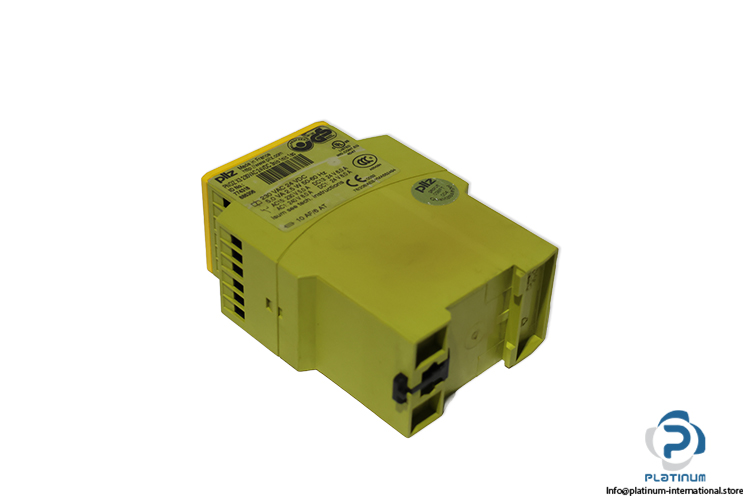

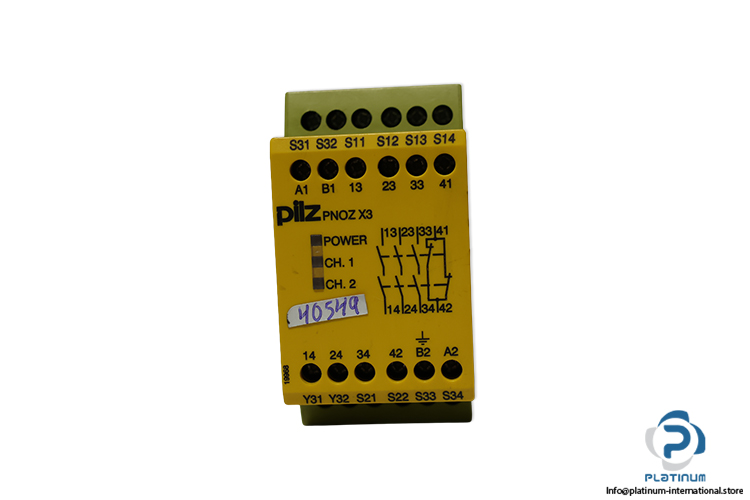

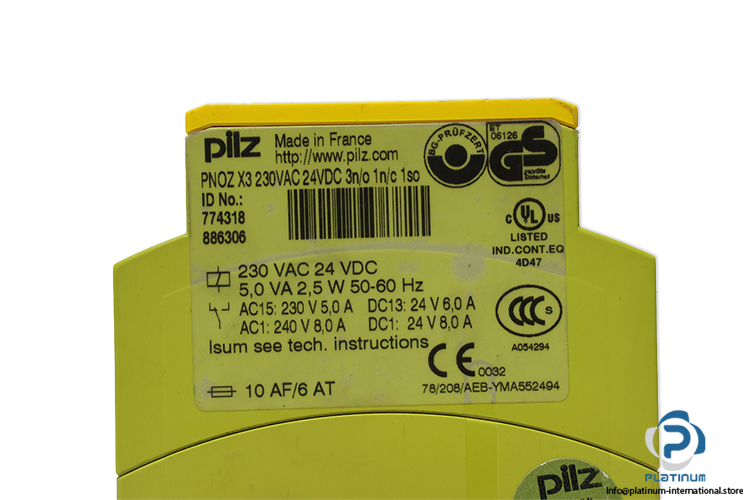

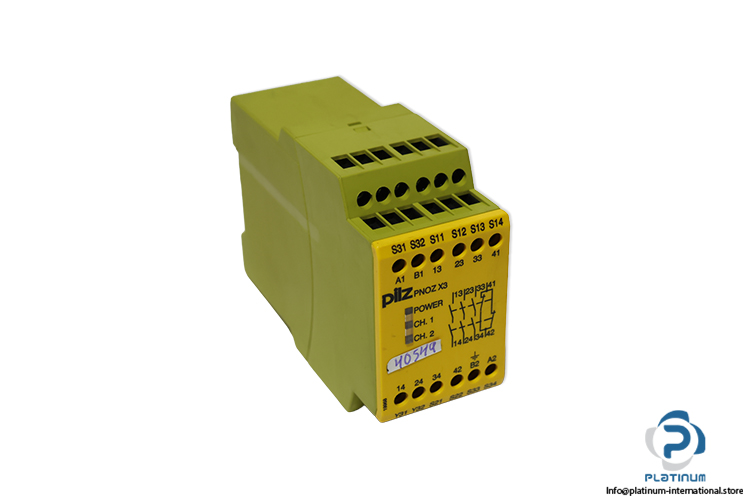

Pilz Pnoz X3 230VAC 24VDC 3N/O 1N/C 1SO 886306 Safety Relay
Novo
Em estoque2 unidadesPronto para envio
244,44$
Safety Relay PILZ PNOZ X3 dual-channel safety relay with 230 V AC/24 V DC supply, designed for reliable industrial safety and automation applications.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Part No. | 774318 |
| Ref. No. | 886306 |
| Rated Supply Voltage | 230 V AC/ 24 V DC |
| Rated Current Max. | 5 A |
| Power | 5,5 VA / 2.5 W |
| Frequency | 50 … 60 Hz |
| Number of Channels | 2 Channels |
| Contact | 3 Normally Open (NO) + 1 Normally Closed (NC) |
| Semiconductor Outputs No. | 1 |
| Rated Contact Voltage | AC15: 230 V / AC1: 240 V / DC13 / DC1: 24 V |
| Rated Contact Current | AC15 230 V: 5 A / AC1 240 V: 8 A / DC1 24 V: 8 A / DC13 24 V: 6 A |
| Electrical Connection | Screw Terminals |
| Ambient Temperature | -10 ... 55 °C |
| Dimensions | 87 x 45 x 121 mm |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1104193 |
| Weight | 0,37 |
