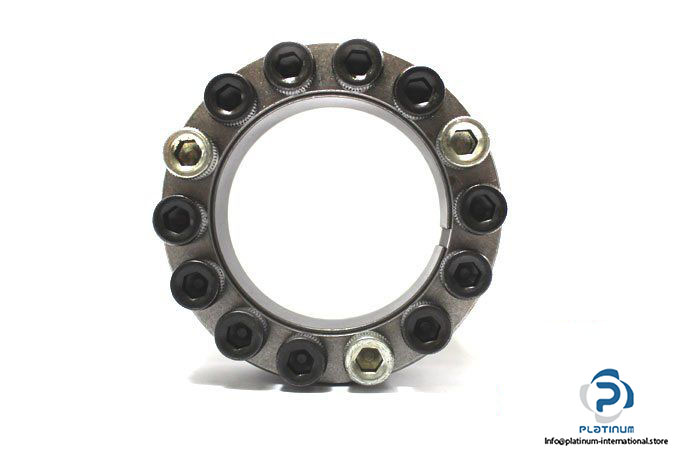

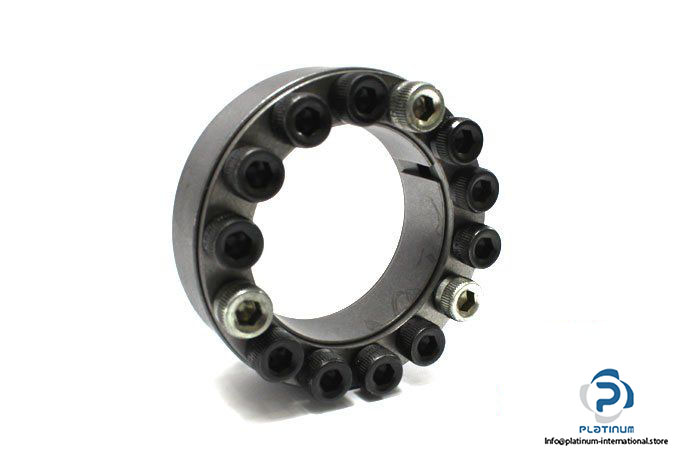

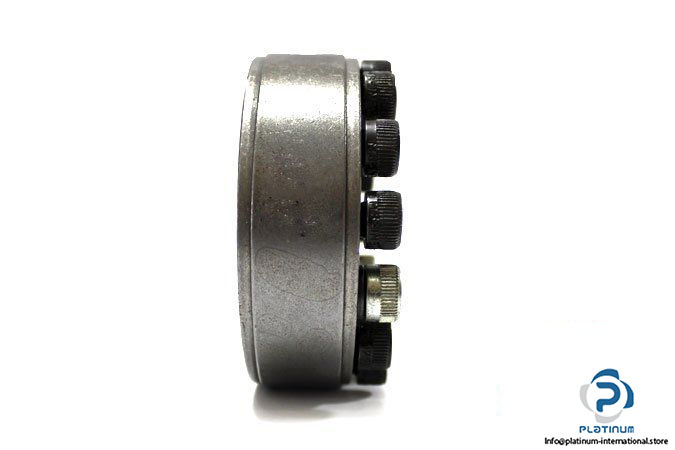

Ringfeder 60X90 RFN 7012 Locking Assembly

Em estoque1 unidadePronto para envio
SKU
966941
Categoria
Others
Condição
Novo
Compartilhar
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

Manufacturer: RINGFEDER

Type: LOCKING ASSEMBLY, DYNANOBLOC

Model: 60X90 RFN 7012

Article No.: 991058

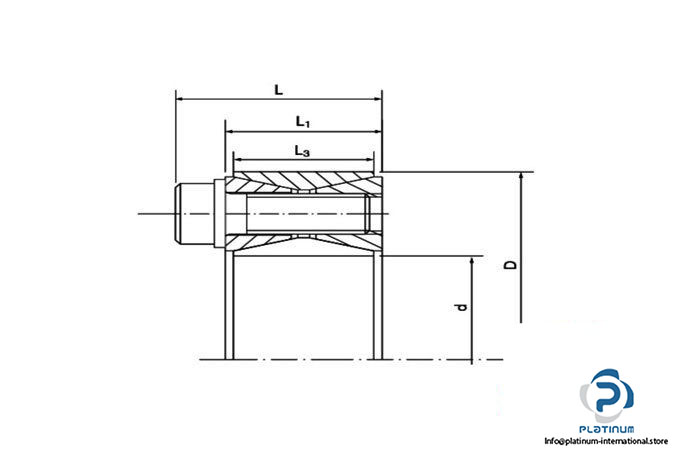

Inner diameter (d): 60 mm

Outer diameter (D): 90 mm

Overall length (L): 33.5 mm

Overall length, without screws (L1): 24 mm

Width of ring (L3): 20 mm

Max. Tightened torque of the clamping screws (TA): 35 Nm

Transmissible torque (given TA): 2460 Nm

Transmissible torque max.: 2880 Nm

Surface pressure on shaft (given TA): 181 N/mm2

Surface pressure on hub (given TA): 121 N/mm2

Applications: chain wheels, Levers, pulleys, slip-on gear mechanisms, belt, drums, running, wheels, cable sheaves
