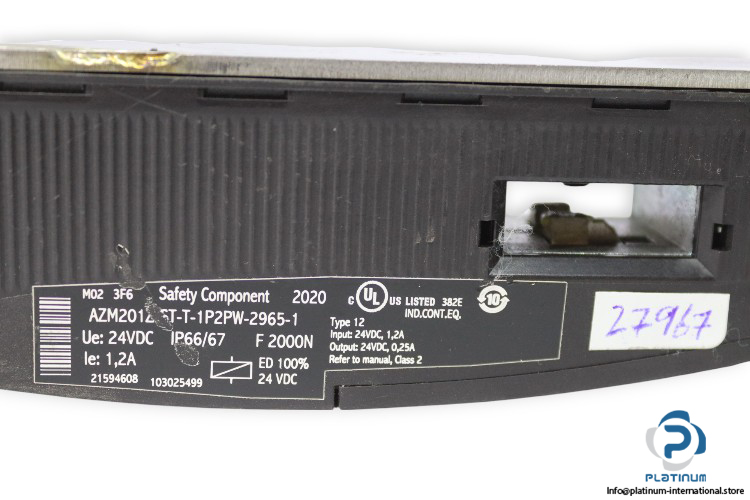

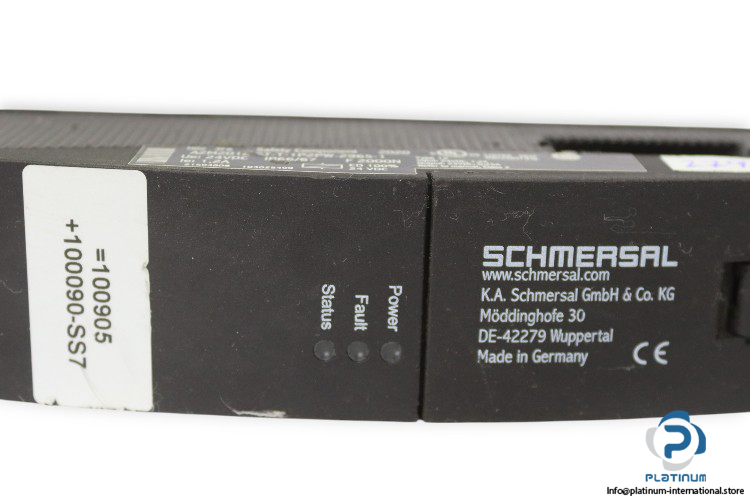

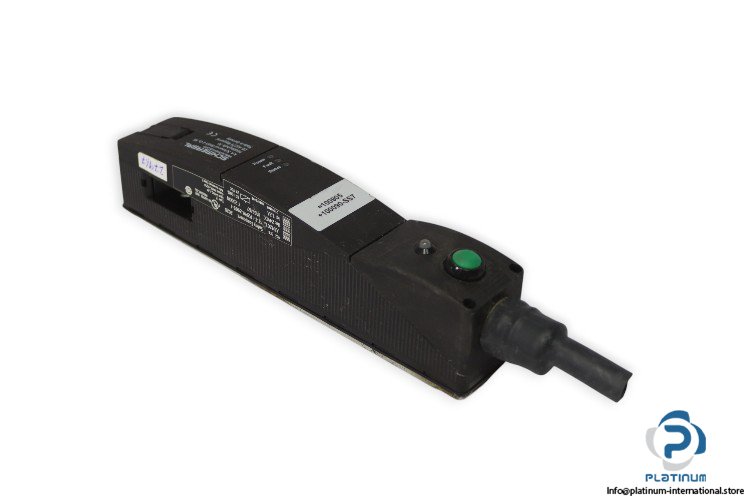

Schmersal AZM201Z-ST-T-1P2PW-2965-1 Safety Switch
Industrial-grade Schmersal safety switch with 2,000 N holding force, IP66/IP67 protection, and 24 VDC operation. Suitable for secure interlocking in automation and machinery systems.
Manufacturer: Schmersal
Type: Safety Switch
Model: AZM201Z-ST-T-1P2PW-2965-1
Part No.: 21594608 / 103025499 / 100905 / +100090-SS7
Rated Operating Voltage: 24 VDC
Operating Current: 1,200 mA
Rated Insulation Voltage (Ui): 32 VDC
Rated Impulse Withstand Voltage (Uimp): 0.8 kV
Holding Force: 2,000 N
Length of Sensor Chain (Max): 200 m
Degree of Protection: IP66, IP67
Ambient Temperature: -25 … +60 °C
Dimensions (H×W×L): 220 × 40 × 50 mm
This Schmersal safety switch is a high-reliability interlocking device engineered for industrial safety systems. With a strong holding force of 2,000 N and protection ratings of IP66 and IP67, it ensures secure operation in harsh and demanding environments. The device supports a 200-meter sensor chain and operates on 24 VDC, making it ideal for safeguarding access points in machinery and automation systems.
