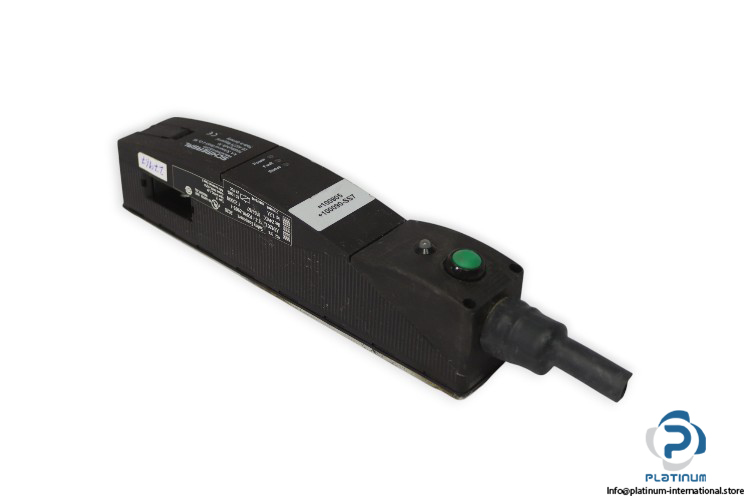

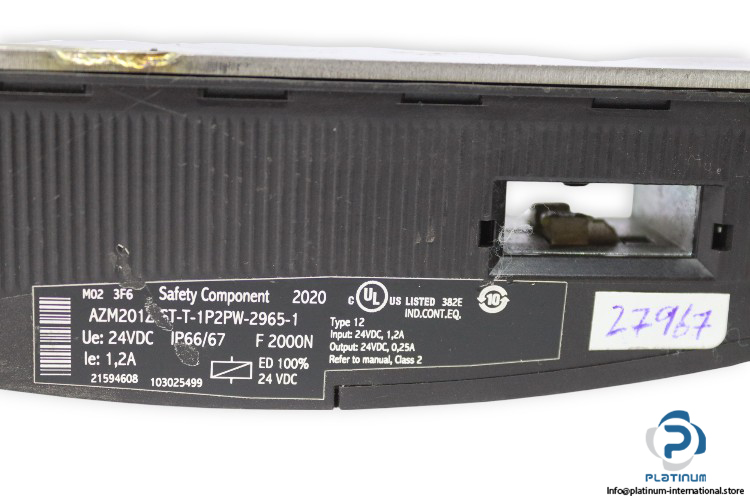

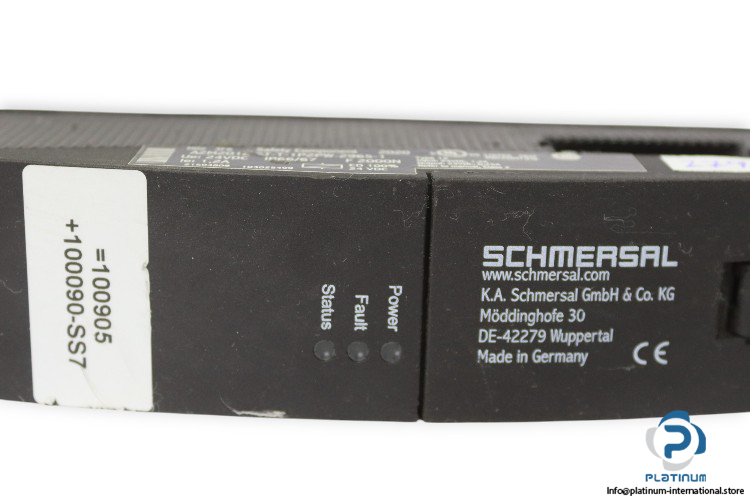

Schmersal AZM201Z-ST-T-1P2PW-2965-1 Safety Switch

Manufacturer: Schmersal

Type: Safety Switch

Model: AZM201Z-ST-T-1P2PW-2965-1

Part No.: 21594608 / 103025499 / 100905 / +100090-SS7

Rated Operating Voltage: 24 VDC

Operating Current: 1,200 mA

Rated Insulation Voltage (Ui): 32 VDC

Rated Impulse Withstand Voltage (Uimp): 0.8 kV

Holding Force: 2,000 N

Length of Sensor Chain (Max): 200 m

Degree of Protection: IP66, IP67

Ambient Temperature: -25 … +60 °C

Dimensions (H×W×L): 220 × 40 × 50 mm

This Schmersal safety switch is a high-reliability interlocking device engineered for industrial safety systems. With a strong holding force of 2,000 N and protection ratings of IP66 and IP67, it ensures secure operation in harsh and demanding environments. The device supports a 200-meter sensor chain and operates on 24 VDC, making it ideal for safeguarding access points in machinery and automation systems.
