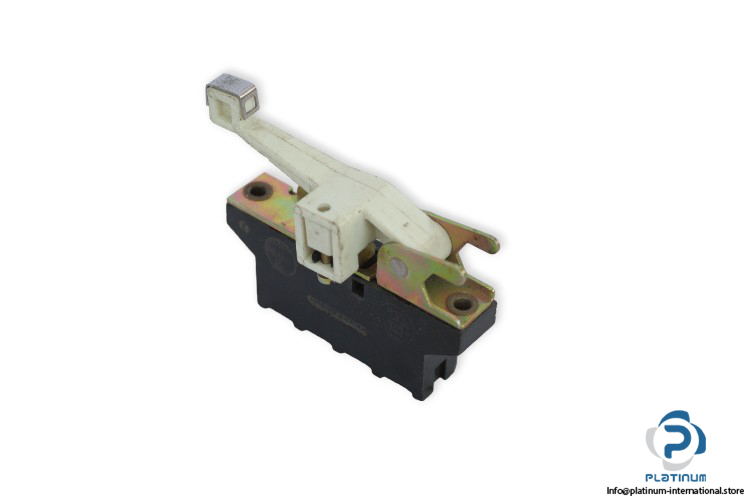

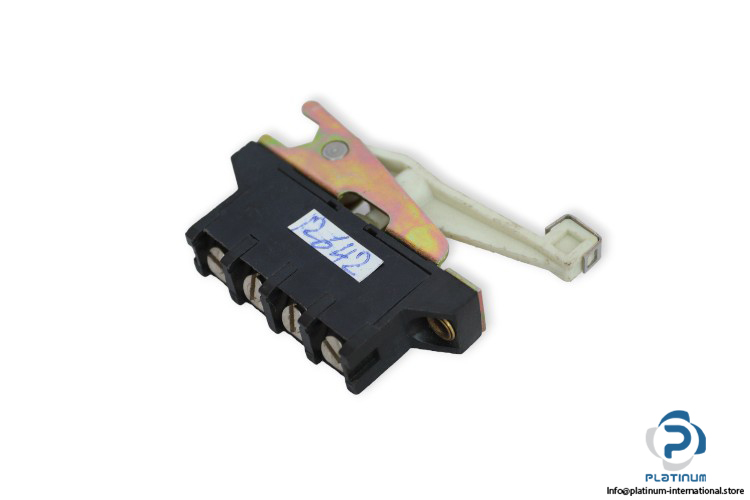

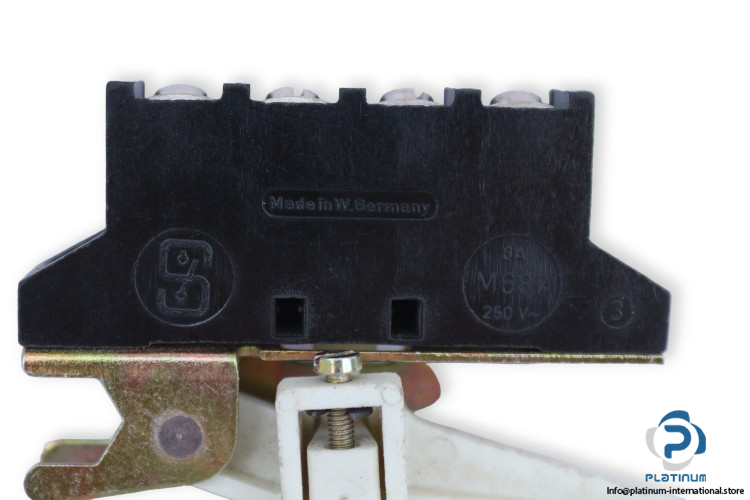

Schmersal M687 Micro Switch
Manufacturer: SCHMERSAL
Type: Micro Switch
Model: M687
Rated Operational Voltage: 250 V AC
Rated Operational Current: 6 A
Contact: 2-Poles, 1 Normally Open (NO) + 1 Normally Closed (NC)
Actuating Force: 4 N
Actuator Type: Plastic Roller lever
Material: Glass-Fiber, Thermoplastic
Protection Class: IP40
Ambient Temperature: -30 … 120 °C
Actuator Width, Diameter: 6.4, 8 mm
Dimensions: 31 x 60 x 11.9 mm
