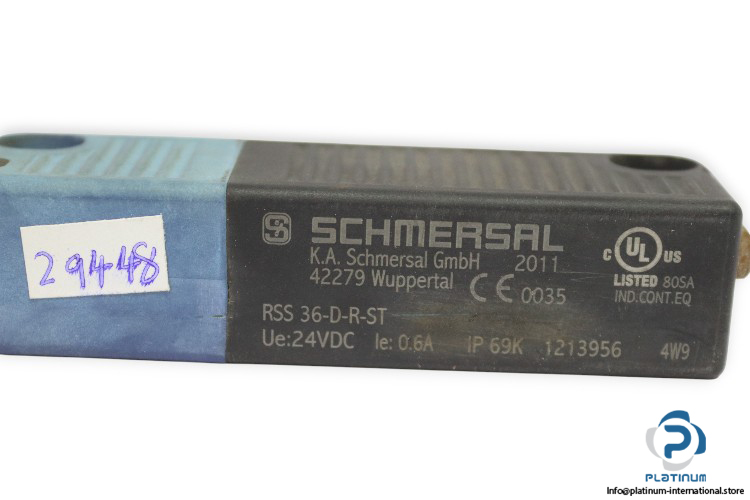

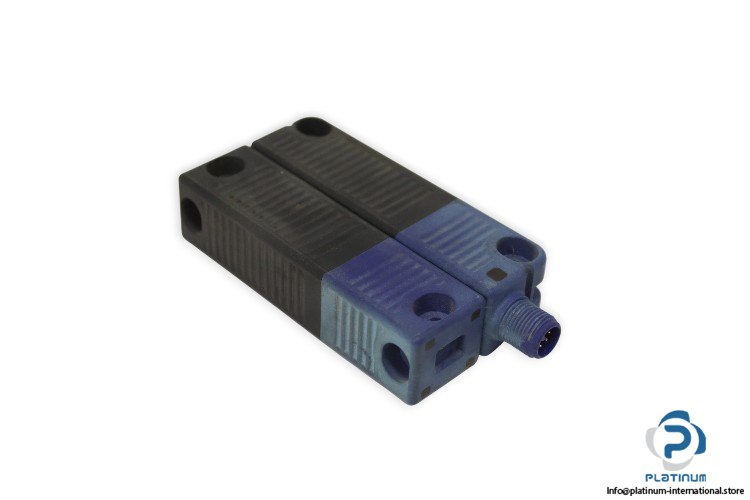

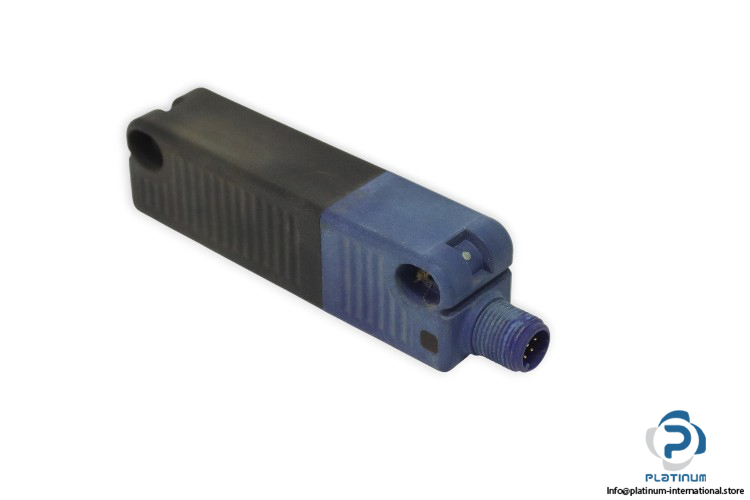

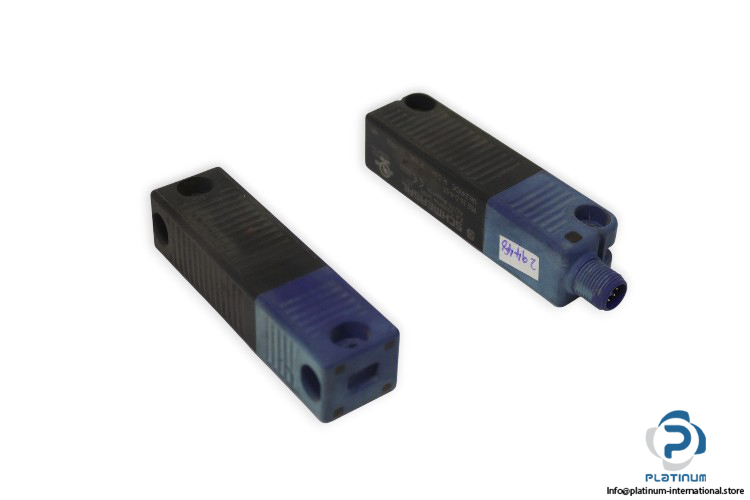

Schmersal RSS 36-D-R-ST / RST 36-1-R Electronic Safety Sensor Transmitter AND Emitter
Usado
Disponível sob consulta
111,11$
Safety Sensor Schmersal RSS36-D-R-ST safety sensor designed for machine protection, secure position monitoring, and reliable safety control in industrial automation systems.
36-1-R36-D-R-STConnectorElectronicEmitterIndustrialIP69KM12PhotocellRSSRSTSafetySchmersalSensorTransmitter
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Series | RSS 36 |
| Rated Operating Voltage | Ue 20.4 VDC “ 26.4 VDC |
| Features | Misaligned actuation possible |
| Dimensions | 27 mm x 108.2 mm x 35 mm |
| Outputs | 2 short-circuit proof PNP |

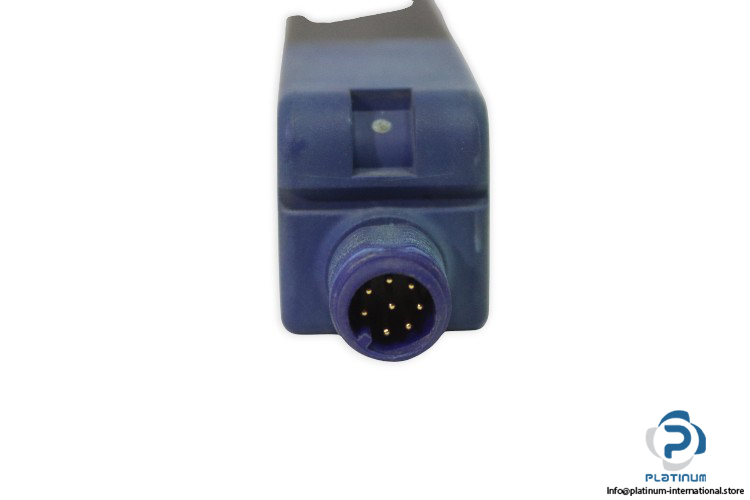

| safety outputs Connection | 1 x connector socket M12, 8-pole |
| Standards & Classification | EN ISO 13849-1, IEC 61508, IEC 60947-5-3, EN 62061 |
| Performance | PL, Control category, PFH, SIL, Mission time |
| Max. Sensor Chain | Length 30 m |
| Materials Housing | “ Plastic, glass-fibre reinforced thermoplastic, |
| self-extinguishing; Active surface “ | Plastic, glass-fibre reinforced thermoplastic |
| Housing Construction Form | Block Switch Distance |
| Sn | 12 mm Ensured Switch Distance ON (Sao): 10 mm |
| Ensured Switch Distance OFF (Sar) | 16 mm Hysteresis: max. 2 mm |
| Ambient Temperature | ˆ’25°C to +70°C |
| Width of Sensor | 106.3 mm Height of Sensor: 25 mm Length of Sensor: 22 mm |

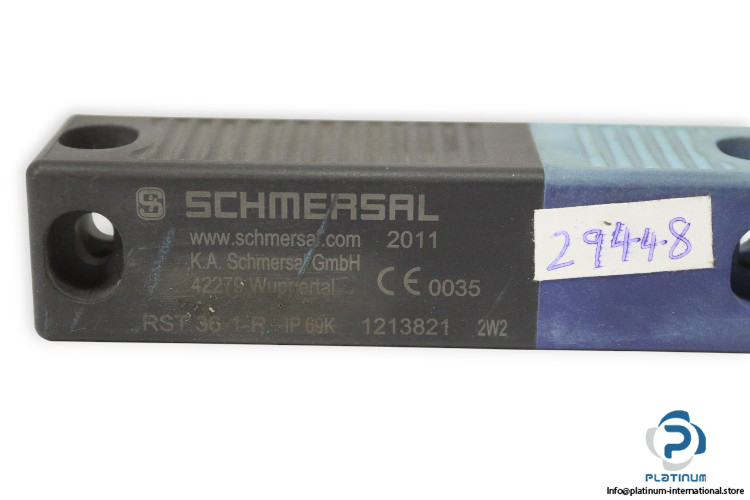

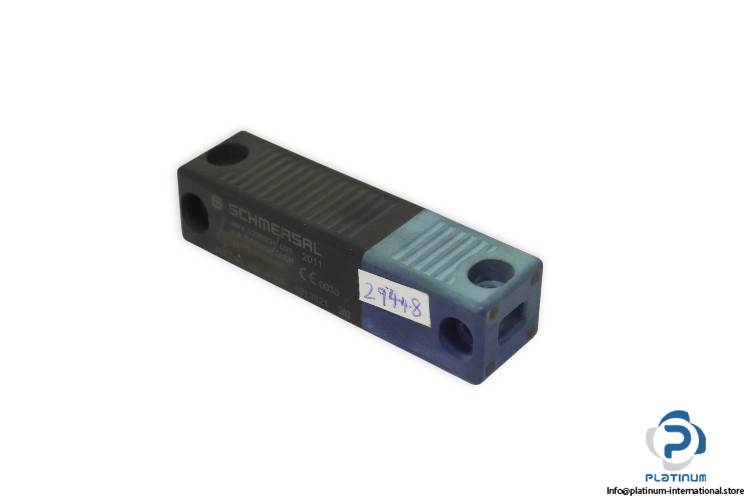

| Attached with | SCHMERSAL RST 36-1-R SAFETY SENSOR |
| Material of the actuator | Plastic |
| Body Style | Rectangular |
| Protection Class | IP69K |
| Length of the actuator | 22mm |
| Width of the actuator | 91mm |
| Height of the actuator | 25mm |
| designed exclusively to pair | with Schmersal RSS 36 electronic safety sensors |
| Condition | Used |
| SKU | 1079747 |
| Weight | 0,15 |
