Schneider XB4 BW33M5 Illuminated Push-Button
Novo
Em estoque3 unidadesPronto para envio
Illuminated Push-Button
A durable industrial illuminated push-button from the Harmony XB4 range, designed for control panels and automation systems, offering reliable switching, metal construction, and clear visual indication.AutomationBlockButtonComponentsContactControlGewissHarmonyIlluminatedIndustrialMetalPanelPushSchneiderSwitchesXB4XB4BW33M5
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
SCHNEIDER XB4BW33M5 Illuminated Push-Button
A high-quality illuminated push-button designed for industrial control panels and automation systems. Part of the Harmony XB4 range, this device combines durability, clear visual indication, and reliable electrical performance, making it suitable for demanding industrial environments. Manufacturer: SCHNEIDER
Type: Illuminated Push-Button
Model: XB4BW33M5
Device Short Name: XB4
Range Of Product: Harmony XB4
Dimensions
Attached Components
Electrical Ratings
| Product Or Component Type | Illuminated Push-Button |
| Bezel Material | Chromium Plated Metal |
| Fixing Collar Material | Zamak |
| Mounting Diameter | 22.5 mm |
| Sale Per Indivisible Quantity | 1 |
| Head Type | Standard |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | Spring Return |
| Operator Profile | Green Flush |
| Operator Additional Information | With Plain Lens |
| Contacts Type And Composition | 1 NO + 1 NC |
| Contact Operation | Slow-Break |
| Rated Supply Voltage | 230 / 240 V AC at 50/60 Hz |
| Height | 47 mm |
| Width | 30 mm |
| Depth | 57 mm |

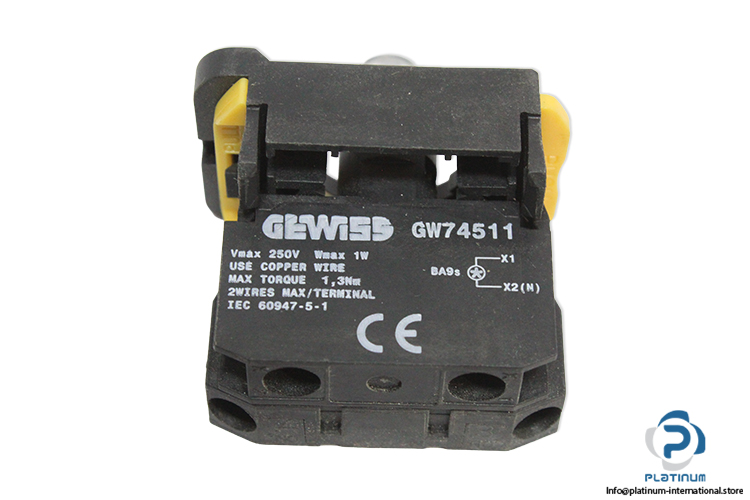

| Contact Block Manufacturer | GEWISS |
| Contact Block Model | GW74511 |
| Lamp Base | BA9s |
| Rated Voltage | 250 V |
| Rated Power | 1 W |
| Standard | IEC 60947-5-1 |
| Max Torque | 1.3 Nm |
