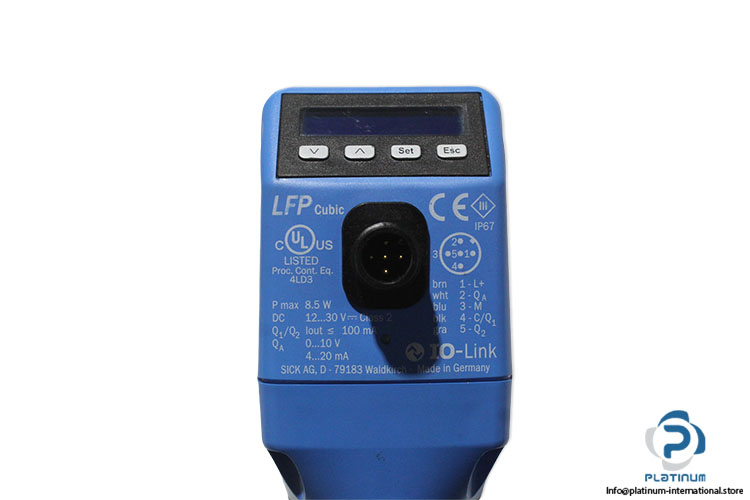

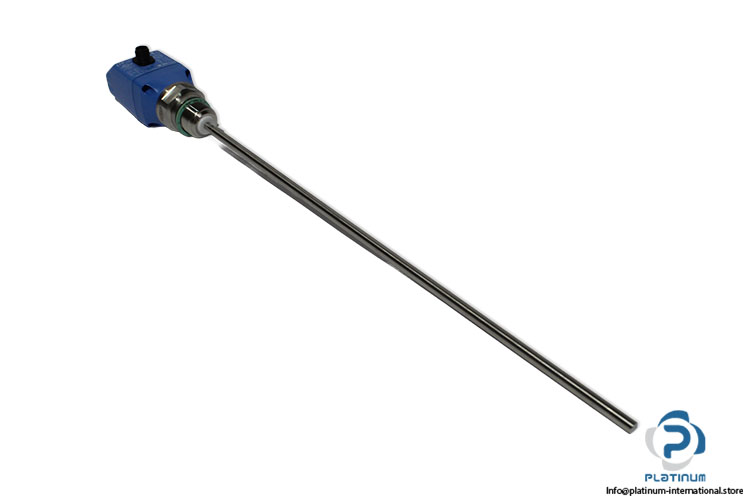

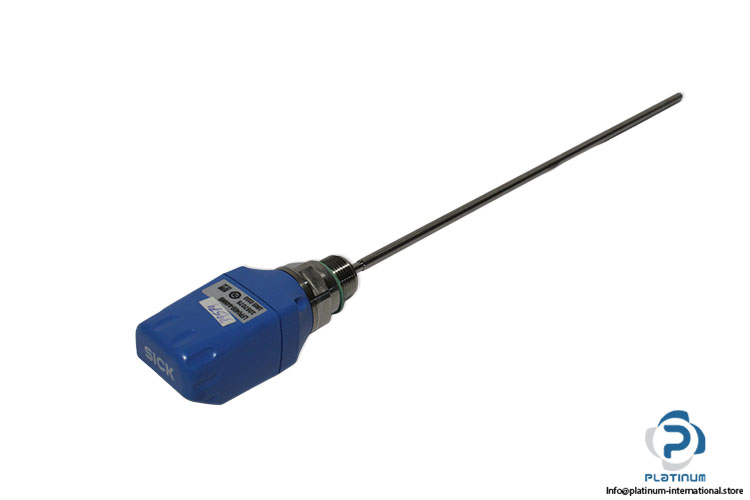

Sick LFP0400-A4NMB TDR Level Sensor
Novo
Em estoque1 unidadePronto para envio
666,66$
TDR Level Sensor The SICK LFP0400-A4NMB is a TDR level sensor with a 400 mm rod probe, IO-Link, analog and switching outputs, designed for reliable fluid level measurement in industrial applications.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

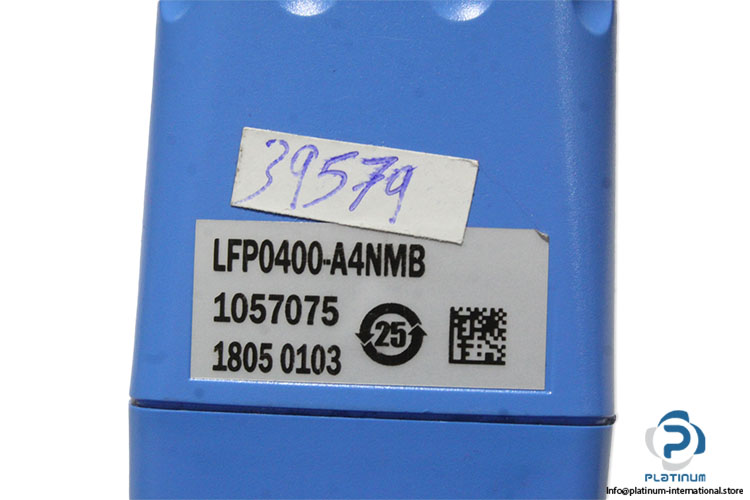

| Part No. | 1057075 |
| Ref No | 1805 0103 |
| Series | LFP Cubic |
| Medium | Fluids |
| Measurement | Switch, Continuous Design Standard |
| Probe type | Rod probe |
| Probe length | 400 mm |
| Process pressure | –1 bar ... 10 bar |
| Process temperature | –20 °C ... +100 °C |
| Accuracy of sensor element | ± 5 mm |
| Reproducibility | 2 mm |
| Resolution | 2 mm |
| Response time | 400 ms |
| Maximum level change | 500 mm/s |
| Deactivated area at process connection | 25 mm |
| Supply voltage | 12 V DC ... 30 V DC |
| Power consumption | 100 mA at 24 V DC without output load |
| Initialization time | 5 s |
| Protection class | III |
| Connection type | Round connector M12 x 1, 5-pin |
| Output signal | 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V |
| Switching output | IO-Link, 1 x PNP + 1 x PNP/NPN |
| Output load | 4 mA ... 20 mA < 500 Ohm at Uv > 15 V, 4 mA ... 20 mA < 350 Ohm at Uv > 12 V, 0 V ... 10 V > 750 Ohm at Uv 14 = V |
| Hysteresis | Min. 2 mm, free adjustable |
| Output current | 100 mA |
| Inductive load | 1 H |
| Capacitive load | 100 nF |
| Enclosure rating IP67 | EN 60529 |
| Temperature drift | 0.1 mm/K |
| Lower signal level | 3.8 mA ... 4 mA |
| Upper signal level | 20 mA ... 20.5 mA |
| EMC | EN 61326-2-3, 2014/30/EU |
| Wetted parts | 1.4404, PTFE, FKM |
| Process connection | G ¾ A |
| Housing material | Plastic PBT |
| Max. probe load | 6 Nm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100996 |
| Weight | 0,47 |
