Tekel TK256 Incremental Encoder
215,00$
ENCODER INCREMENTAL TEKEL TK 256 é um encoder incremental de alta resolução com 2000 PPR, eixo sólido de 8 mm e saída RS422 line driver. Construído para sistemas industriais de controle de movimento que exigem durabilidade e precisão.
TEKEL TK 256 INCREMENTAL ENCODER
The TEKEL TK 256 is a high-precision incremental encoder engineered for accurate motion sensing in industrial automation systems. It delivers 2000 PPR resolution and features a durable solid shaft design with RS422 line driver output, making it ideal for demanding environments requiring reliability and precision.
Manufacturer: TEKEL
Type: Incremental Encoder
Model: TK 256

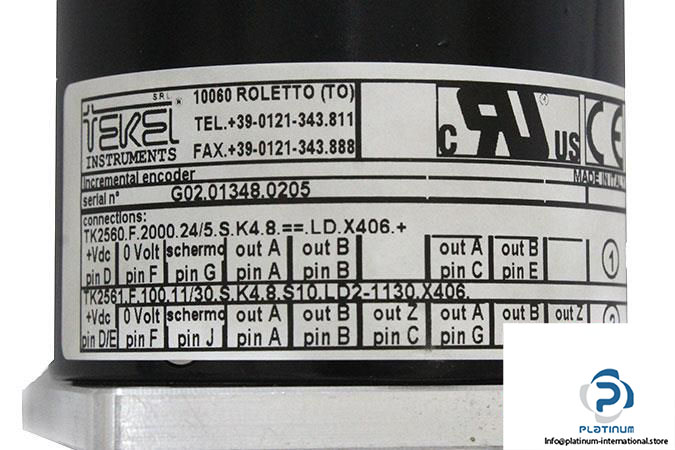

SN: G02.01348.0205
REF NO: E231749 / E252694
Code: TK2560.F.2000.24/5.S.K4.8==.LDX406
| Flange Type | Square Shaft |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 8 mm |
| Resolution | 2000 PPR |
| Voltage Supply | 24 V DC |
| Output Circuits | Line Driver (5V Output) |
| Line Driver | RS422 a 5 V (26LS31) only with 5 V supply |
| Connection Type | Radial MIL Connector (7 Pins) |
| Protection Class | IP64 |
| Temperature Range | -10 to 70 °C |
